F1CE0487K*C502

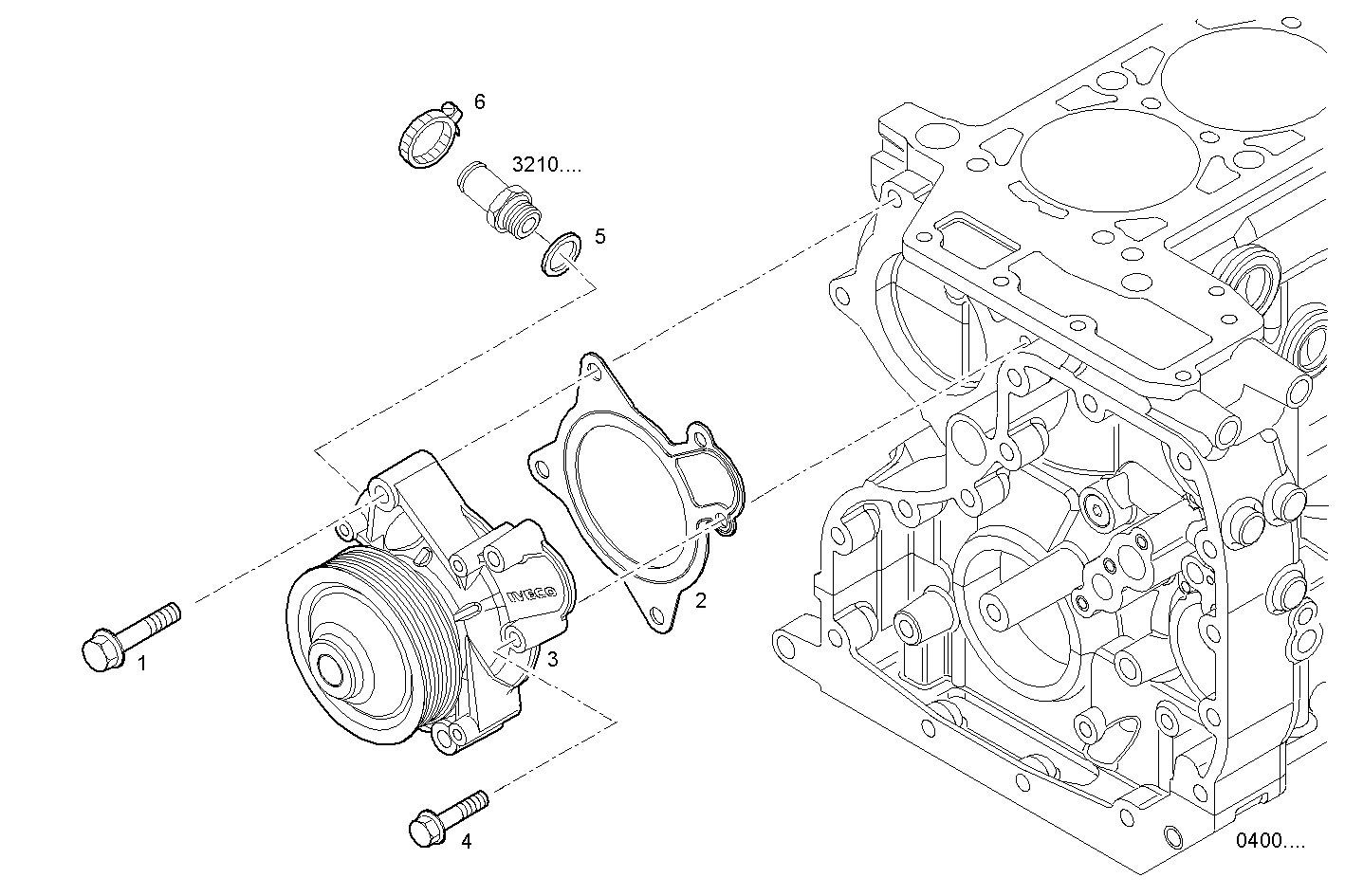

3201.015 WATER PUMP
Item | Part number | Description |
---|---|---|
1 | 16587724 | HEXAGON BOLT M10X55 MM |
2 | 504080013 | FLAT ENGINE GASKET |
3 | 504086476 | WATER PUMP ASSY |
4 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
5 | 10279560 | SEAL GASKET Ø22,2 MM |
6 | 17316592 | PIPE CLIP |
