F1CE3481A*A005

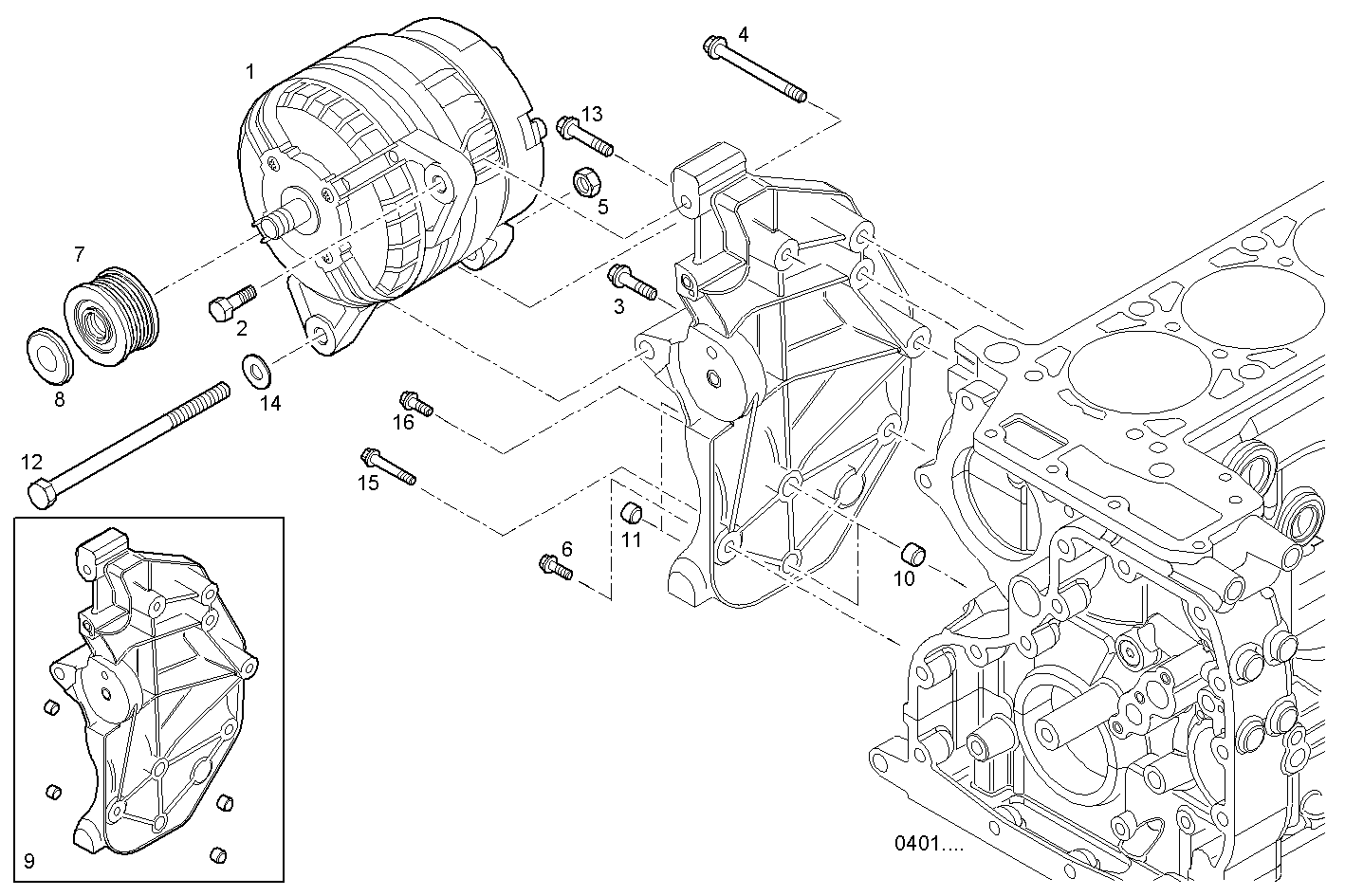

4000.013 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504087183 | ALTERNATOR 110A - 14V |
| 2 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
| 3 | 16587125 | HEXAGON BOLT M10X25 MM |
| 4 | 16676834 | HEXAGON BOLT M10X70 MM |
| 5 | 14059411 | HEXAGON NUT M10X1,25 |
| 6 | 16673735 | HEXAGON BOLT M8X25 MM |
| 7 | 504229261 | GENERATOR PULLEY |
| 8 | 504094102 | COVER |
| 9 | 504334502 | GENERATOR SUPPORT ASSY |
| 10 | 500371139 | DOWEL PIN |
| 11 | 504349084 | DOWEL PIN |
| 12 | 15972424 | HEXAGON BOLT M10X1,25X130 MM |
| 13 | 16587525 | HEXAGON BOLT M10X45 MM |
| 14 | 17097124 | WASHER 10x21 |
| 15 | 16586925 | HEXAGON BOLT M8X50 MM |
| 16 | 16673835 | HEXAGON BOLT M8X30 MM |
