F1CE3481B*A005

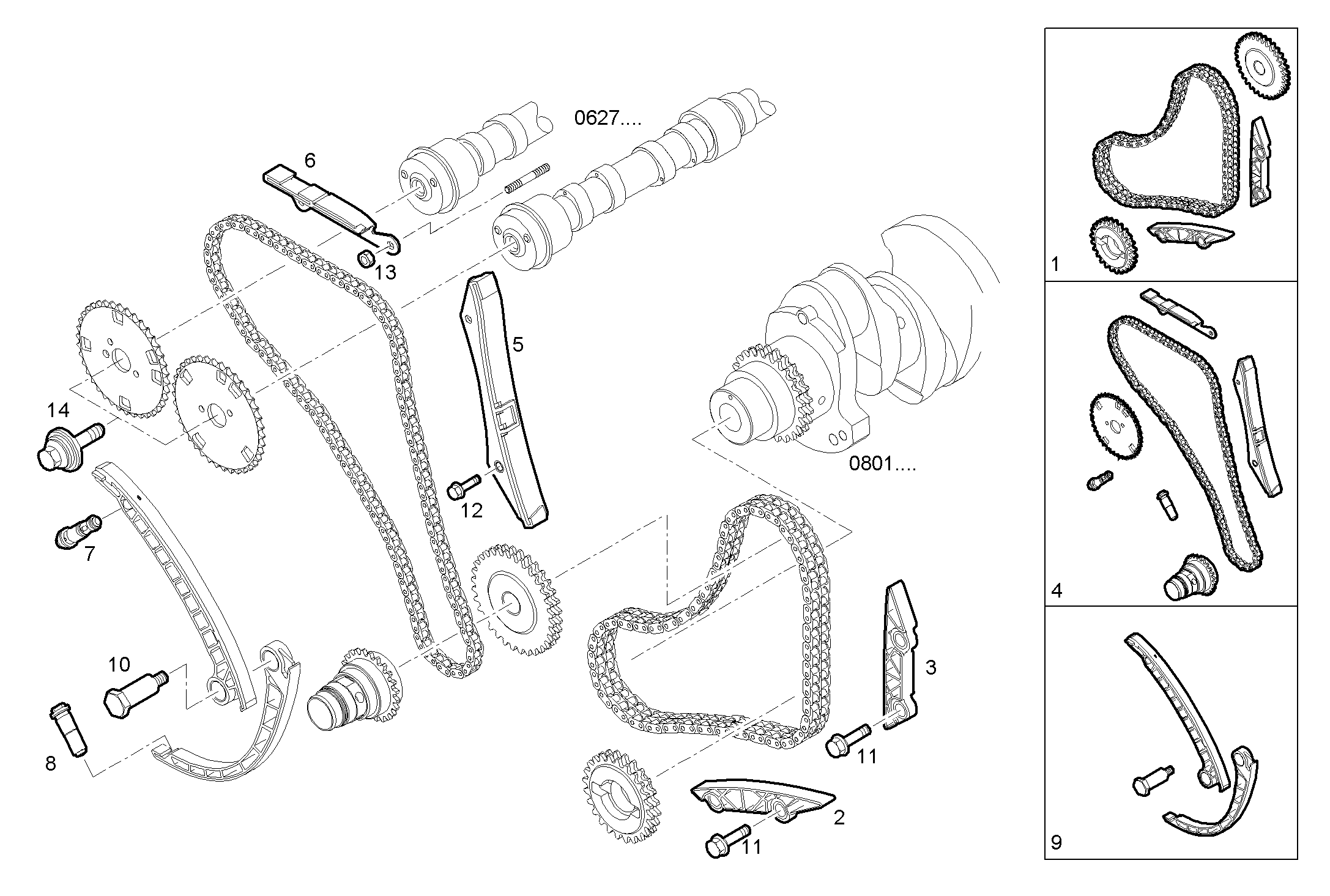

1220.001 CONTROLS

Iveco/FPT CONTROLS

Item Part number Description
1 504294672 TIMING CHAIN
2 504019931 SLIDING SHOE
3 504212685 SLIDING SHOE
4 504310251 TIMING CHAIN
5 504214476 SLIDING SHOE
6 504019918 SLIDING SHOE
7 504081358 TENSIONER
8 504019915 TENSIONER
9 504310252 SLIDING SHOE
10 504019914 CYLIND-HEAD SCREW M10x1.5
11 16586625 HEXAGON BOLT M8X35 MM
12 16585870 HEXAGON BOLT M6X20
13 17044625 HEXAGON NUT M6
14 504134291 CYLIND-HEAD SCREW M12X40 MM
