F1CE3481B*A007

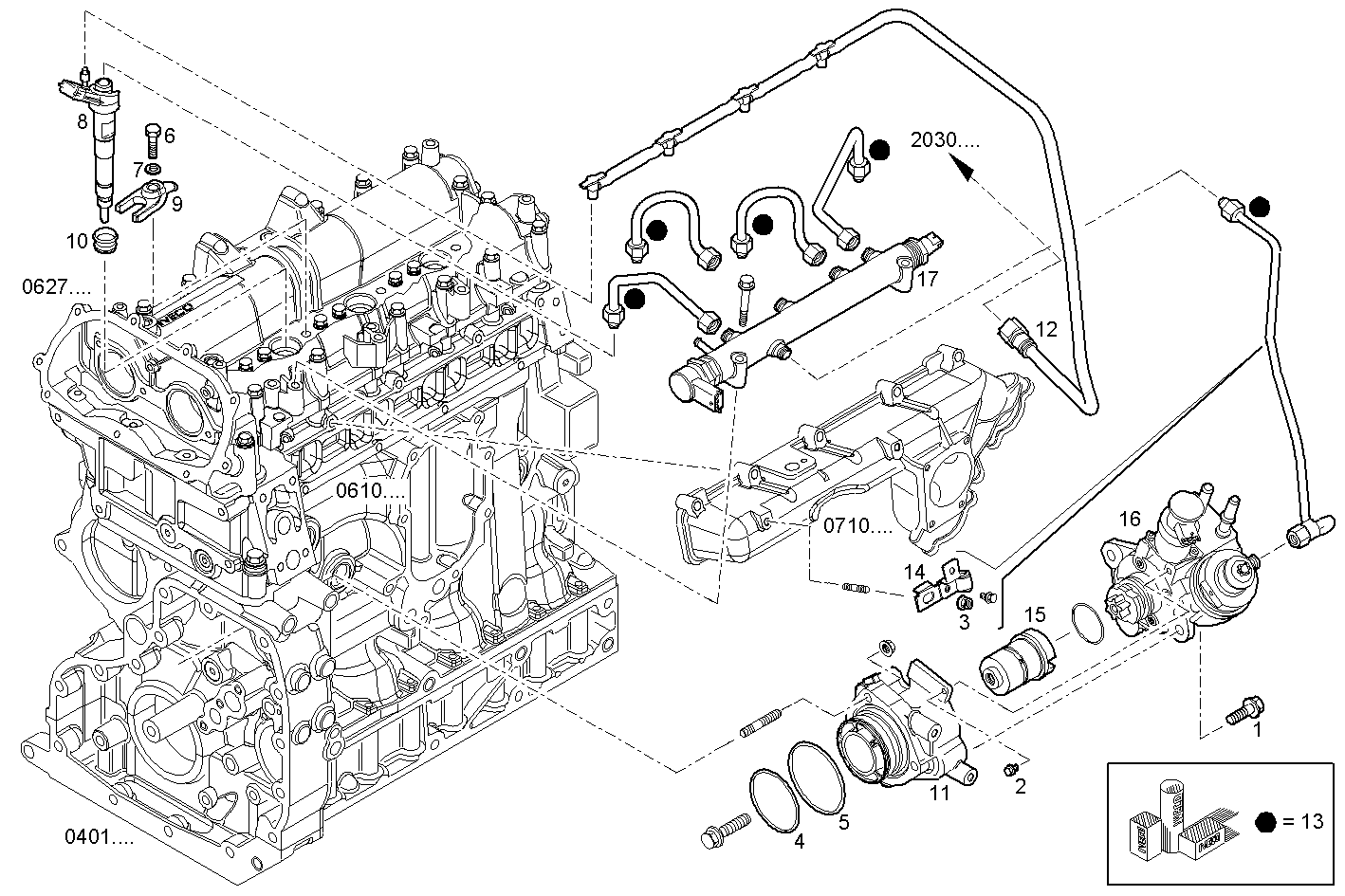

1400.054 INJECTION
Item | Part number | Description |
---|---|---|
1 | 16586625 | HEXAGON BOLT M8X35 MM |
2 | 16596924 | HEXAGON BOLT M6X10 MM |
3 | 17044725 | HEXAGON NUT M8 |
4 | 17284781 | O-RING 2,62x63,17 |
5 | 17290481 | O-RING 3,53x69,44 [UP TO # 328594] |
6 | 16626533 | HEXAGON BOLT M8X1,25 |
7 | 500353601 | WASHER |
8 | 504341488 | ELECTRO INJECTOR |
9 | 504341693 | FASTENING BRACKET |
10 | 504341691 | SEAL GASKET |
11 | 504328944 | SUPPORT |
12 | 504329660 | FUEL LINE |
13 | 504334438 | INJECTION LINE SET |
14 | 504334439 | FASTENING BRACKET |
15 | 504337108 | INJ.PUMP DRIV.GEA |
16 | 504342423 | HIGH PRESSURE PUMP |
17 | 504342424 | HYDRAULIC CYLINDER |
