F1CE3481F*D001

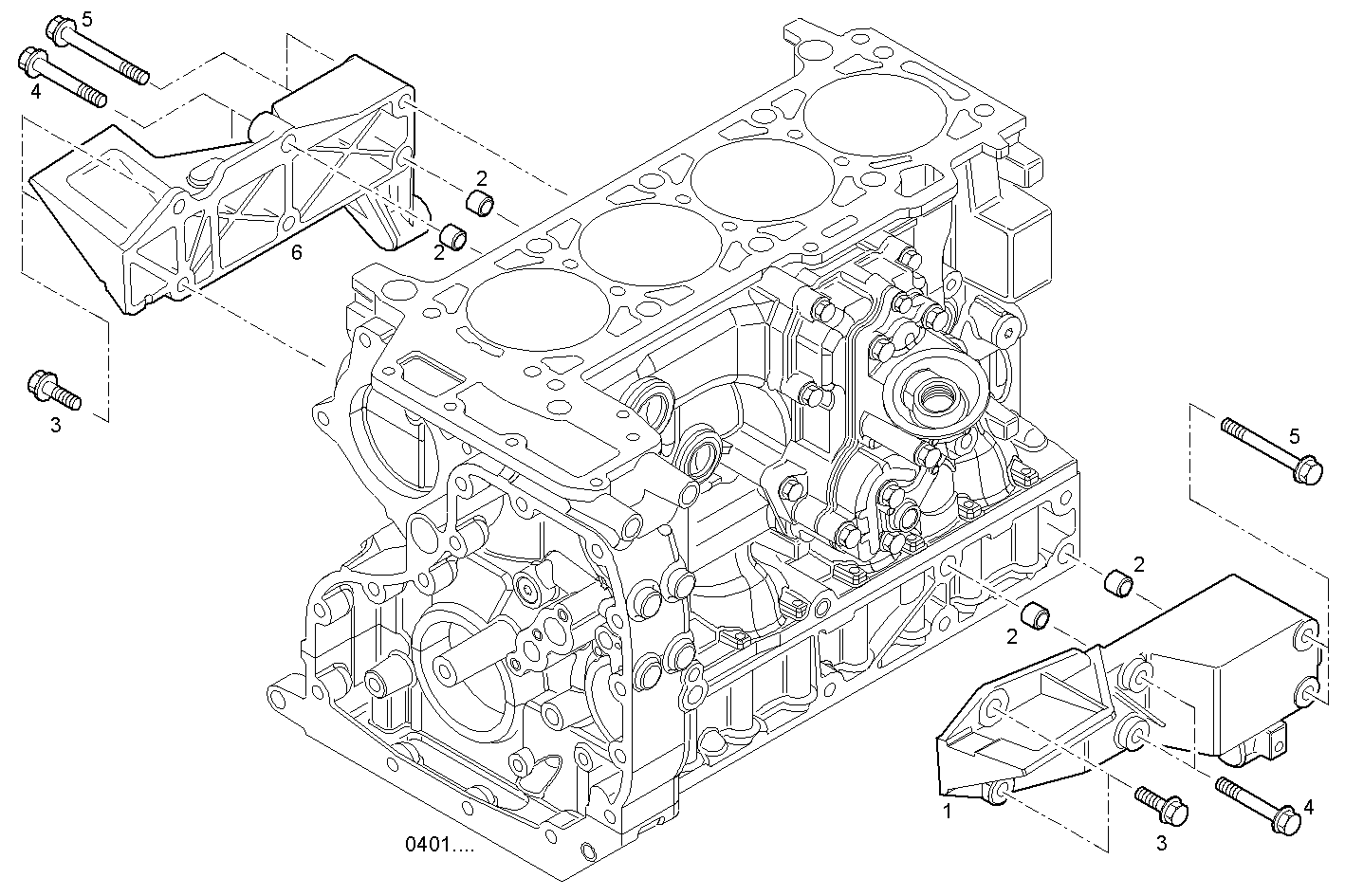

0442.023 ENGINE SUSPENSION
| Item | Part number | Description |
|---|---|---|
| 1 | 504334515 | BRACKET ASSY LEFT |
| 2 | 500371139 | DOWEL PIN |
| 3 | 16587325 | HEXAGON BOLT M10X35 MM |
| 4 | 504337051 | HEXAGON BOLT M10X1.25X95 MM |
| 5 | 16587824 | HEXAGON BOLT M10X1,5X60 MM |
| 6 | 504373217 | BRACKET ASSY RIGHT |
