F1CE3481F*D001

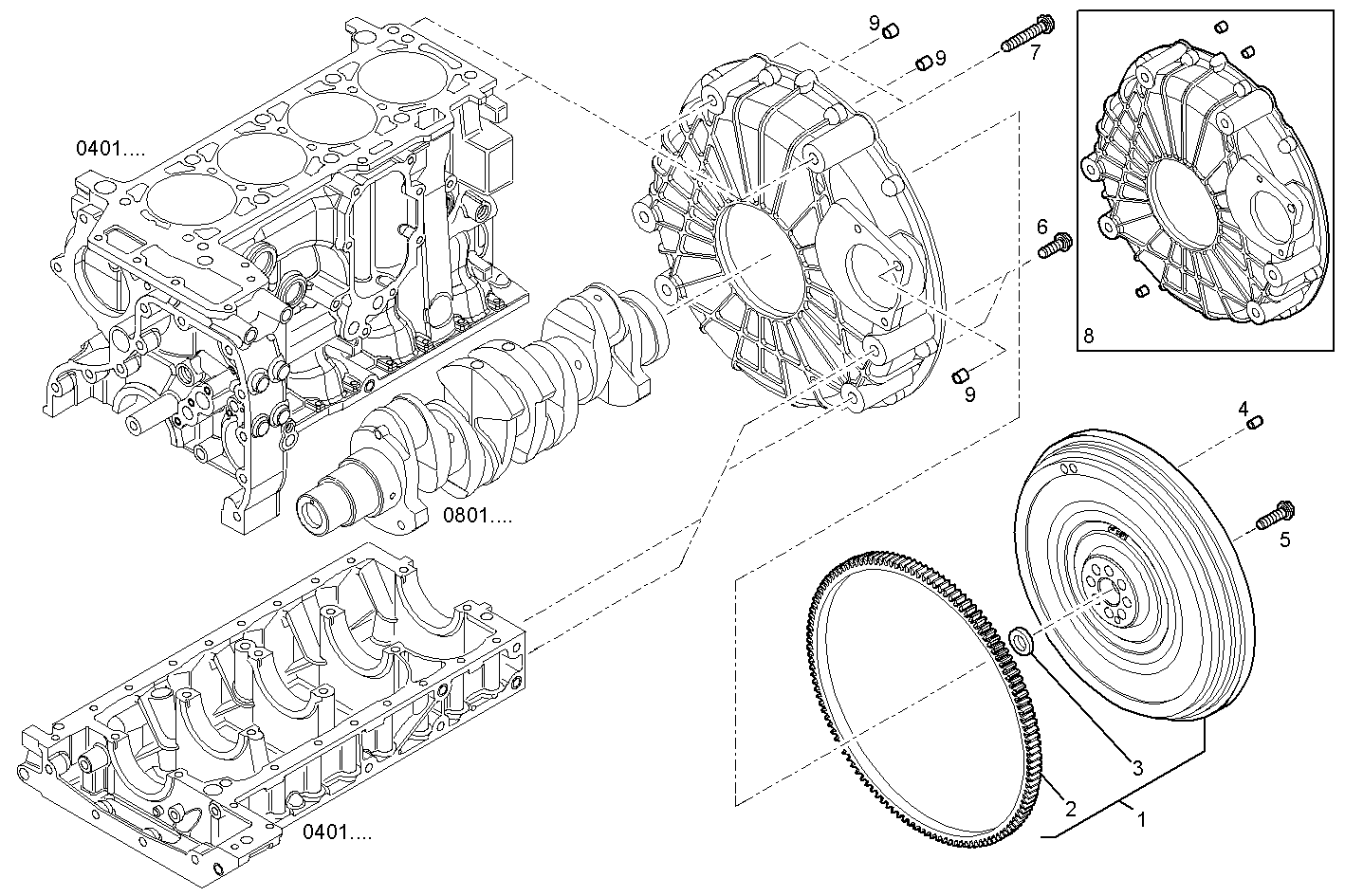

0830.318 ENGINE FLYWHEEL

Iveco/FPT ENGINE FLYWHEEL

Item Part number Description
1 504371327 FLYWHEEL ASSY
2 504371329 RING GEAR
3 98426210 ENGINE BEARINGS Ø15X35 Sp=14 MM
4 504382696 DOWEL PIN
5 504341500 HEXAGON BOLT M12X1,25X42,5MM
6 16289834 LOCKING SCREW M12X1,25X30MM
7 16290934 HEXAGON BOLT
8 504371402 FLYWHEEL HOUSING
9 4708557 DOWEL PIN
