F1CE3481F*D002

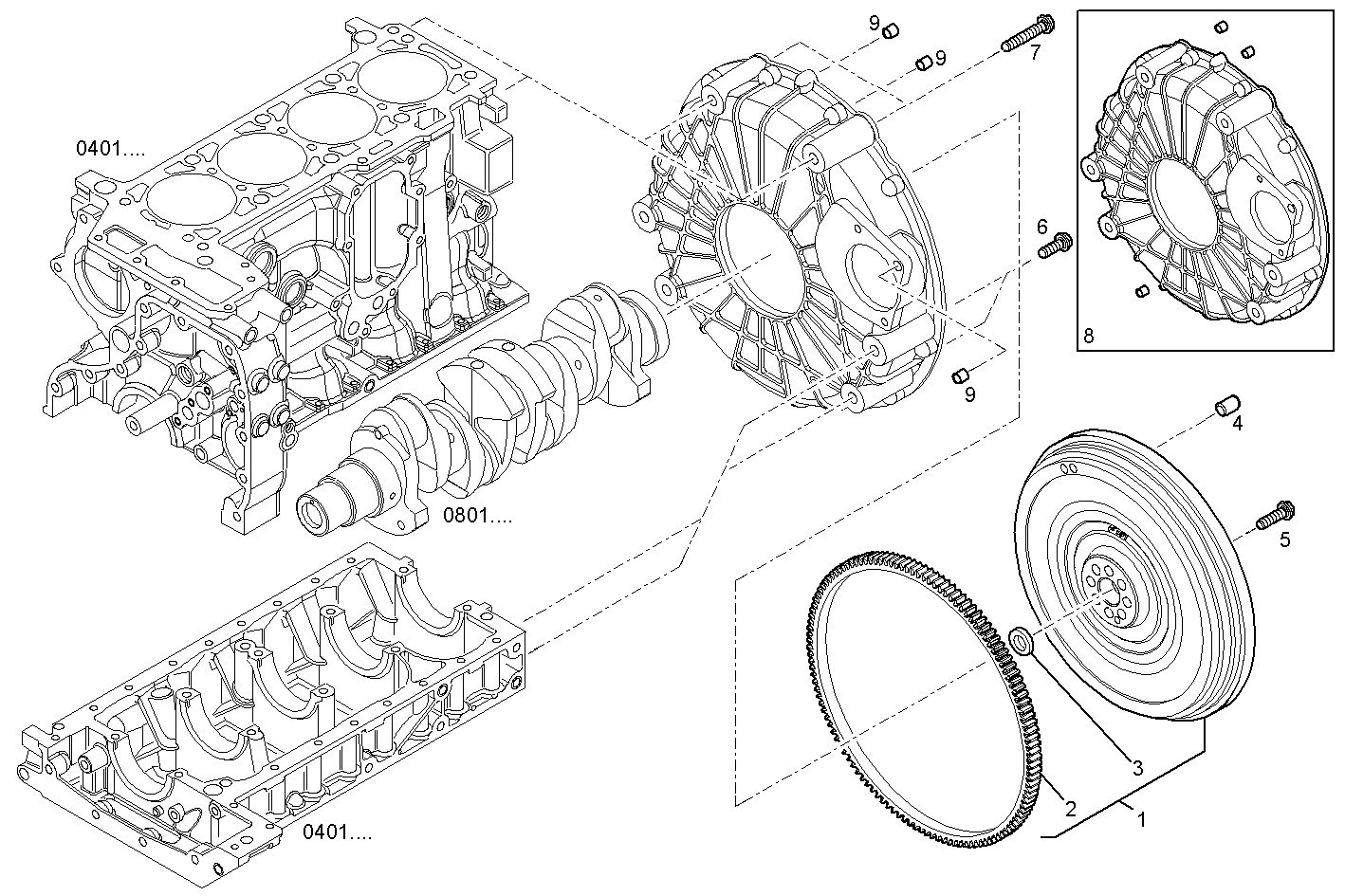

0830.317 ENGINE FLYWHEEL
Item | Part number | Description |
---|---|---|
1 | 504371330 | FLYWHEEL ASSY |
2 | 504371329 | RING GEAR |
3 | 98426210 | ENGINE BEARINGS Ø15X35 Sp=14 MM |
4 | 504383092 | DOWEL PIN |
5 | 504341500 | HEXAGON BOLT M12X1,25X42,5MM |
6 | 16289834 | LOCKING SCREW M12X1,25X30MM |
7 | 16290934 | HEXAGON BOLT |
8 | 504371402 | FLYWHEEL HOUSING |
9 | 4708557 | DOWEL PIN |
