F1CE3481F*D003

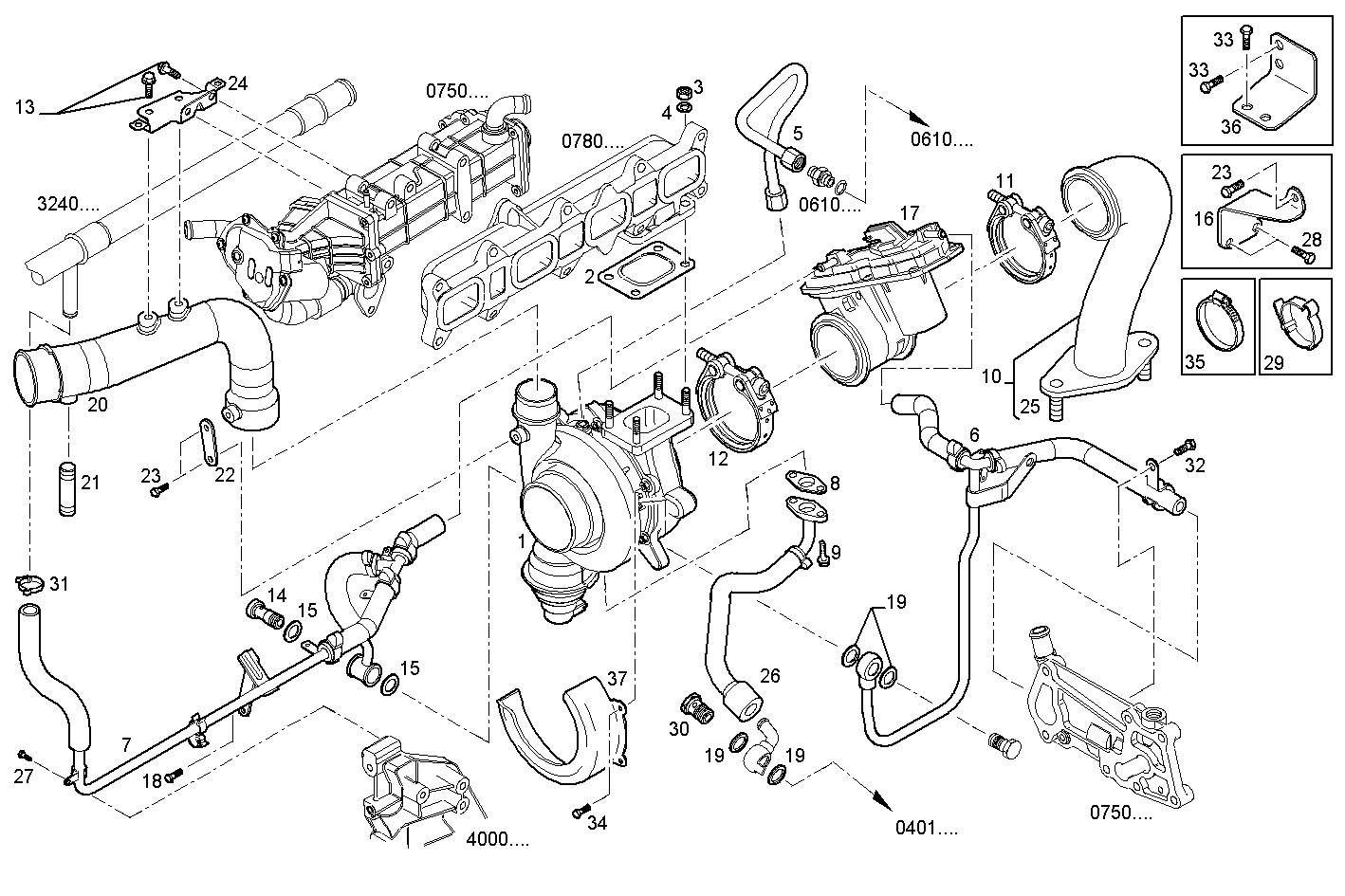

2400.320 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 504371348 TURBOCHARGER
2 4834948 EXH. MANIFOLD GKT
3 500322677 HEXAGON NUT M8
4 17094914 WASHER 8x16
5 504339851 OIL LINE INLET
6 504327432 WATER PIPE
7 504371355 WATER PIPE
8 504351916 FLAT ENGINE GASKET
9 16585870 HEXAGON BOLT M6X20
10 504371361 EXHAUST PIPE ASSY
11 504334479 CLIP dia. 75mm.
12 504339738 CLIP
13 16586225 HEXAGON BOLT M8X1,25X16 MM
14 504341637 SCREW CONNECTOR M12X1,5
15 17234410 PARALLEL PIN
16 504359630 FASTENING BRACKET
17 504334481 ENGINE BRAKE VALVE
18 18137825 HEXAGON BOLT M6X16
19 16508150 GASKET
20 504340841 AIR PIPE/DUCT
21 16729224 STUD M8X16 MM
22 504071257 FASTENING BRACKET
23 16690424 CYLIND-HEAD SCREW M8X1,25X16 MM
24 504371367 FASTENING BRACKET
25 504355019 STUD
26 504334484 OIL LINE OUTLET
27 16585625 HEXAGON BOLT M6X12
28 16600224 HEXAGON BOLT M8X1,25X18 MM
29 13125470 HOSE CLIP
30 504356726 SCREW CONNECTOR M12X1,5
31 18088492 CLIP M20-32
32 16597925 HEXAGON BOLT M8X14 MM
33 16673635 HEXAGON BOLT M8X1.25X20
34 16689024 CYLIND-HEAD SCREW M6X12
35 18088192 CLIP m10-16
36 504371365 FASTENING BRACKET
37 504377538 PROTECTION
