F1CE3481G*A003

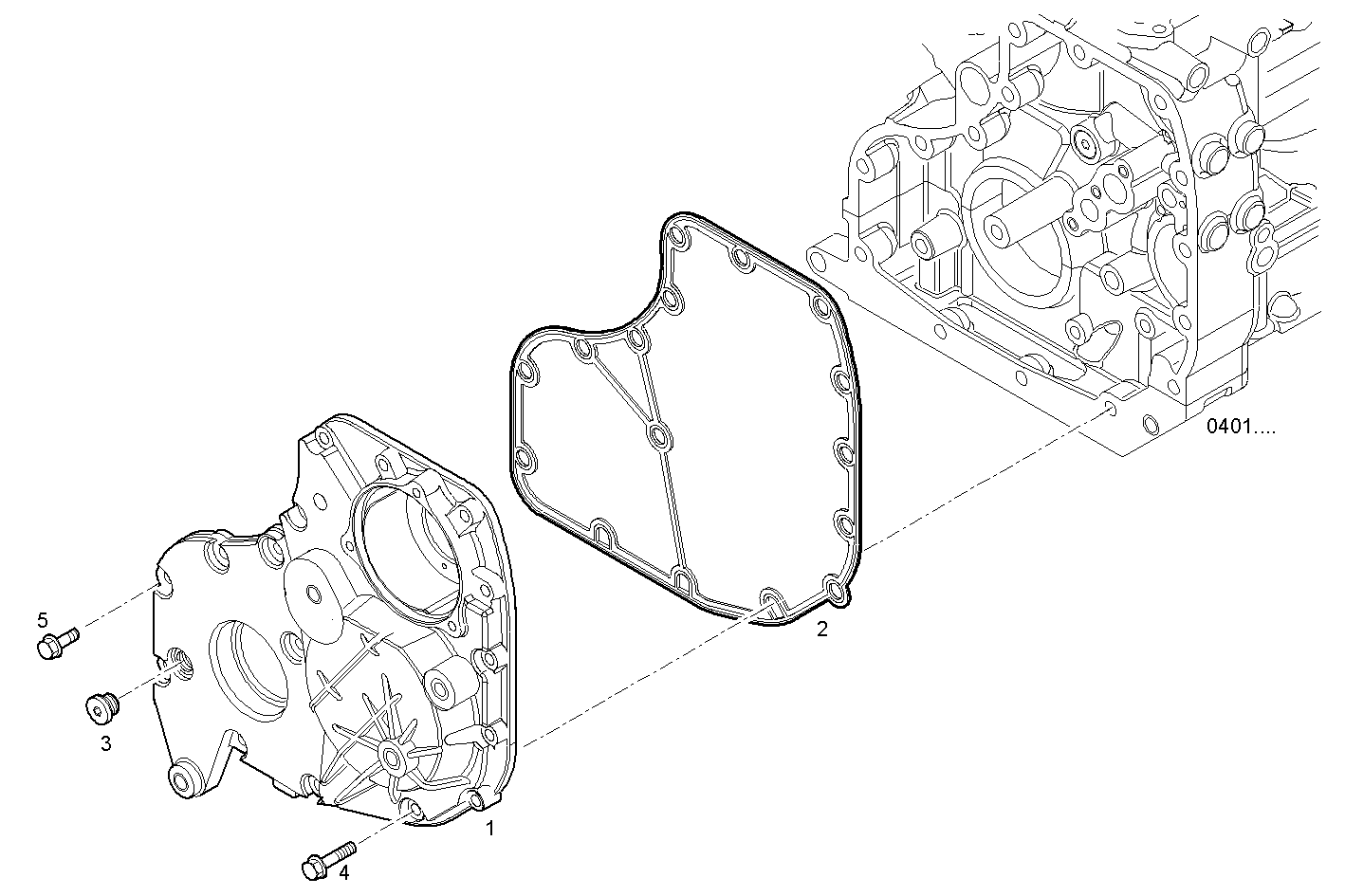

0436.004 TIMING COVER
Item | Part number | Description |
---|---|---|
1 | 504334332 | FRONT C.CASE COVER |
2 | 504082437 | GASKET |
3 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
4 | 16673835 | HEXAGON BOLT M8X30 MM |
5 | 504016052 | LOCK PLUG M14X1,5 |
