F2BE0642A*A002

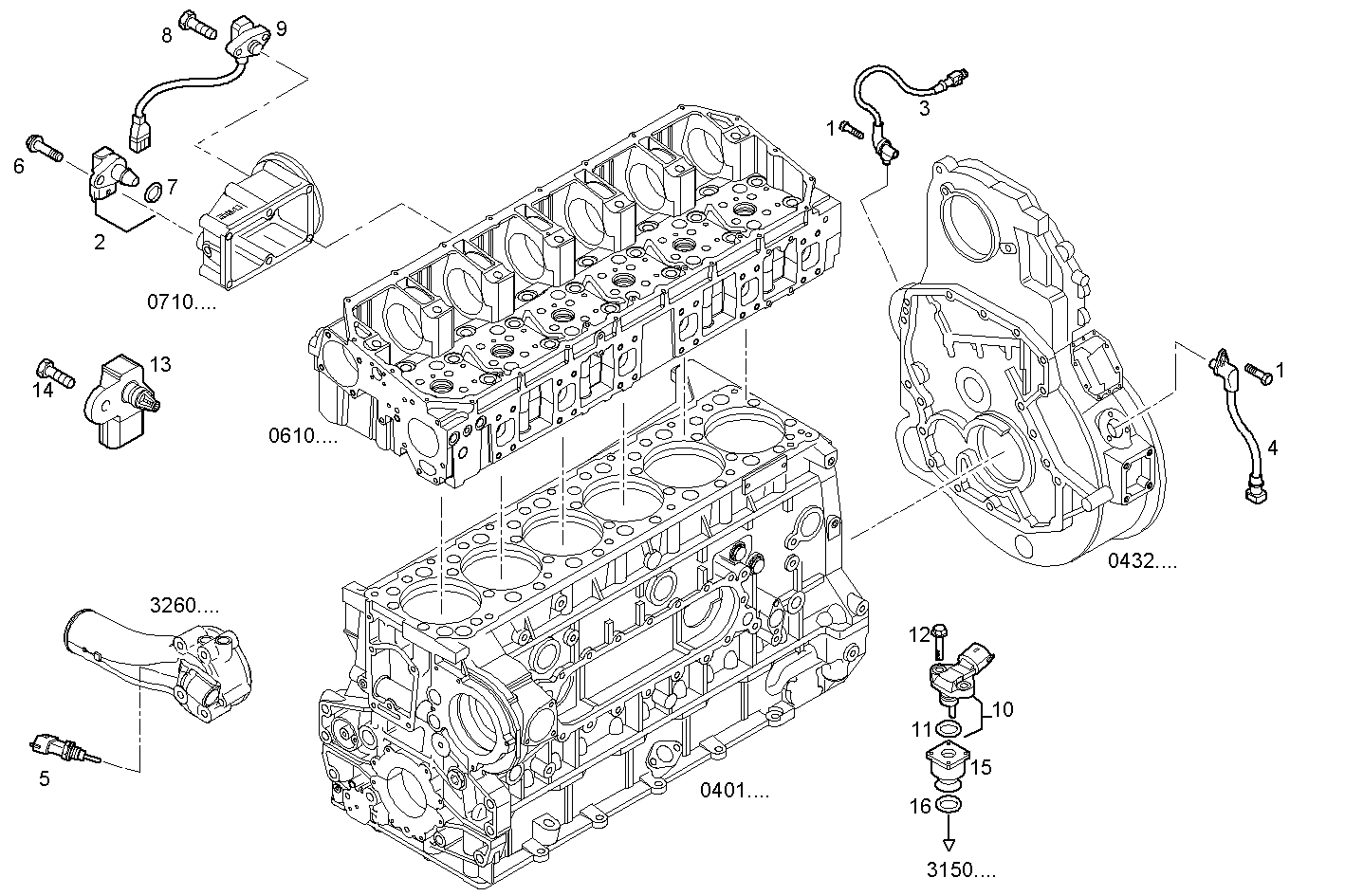

1710.010 SENSORS

Iveco/FPT SENSORS

Item Part number Description
1 16689024 CYLIND-HEAD SCREW M6X12
2 504073323 SENSOR AIR PRESS. & TEMPER. [FROM # 158928]
3 99450797 SENSOR camshaft.
4 504005575 SENSOR crankshaft.
5 500382599 TEMP. TRANSMITTER PRESS. & TEMPER.
6 16597225 HEXAGON BOLT M6X18 MM
7 42546555 O-RING [FROM # 158928]
9 42554567 TRANSMITTER Pressure [UP TO # 36558]
10 4890193 SENSOR OIL PRESS. & TEMPER.
11 4895477 O-RING
12 4899110 HEXAGON BOLT
13 504064370 SENSOR AIR PRESS. & TEMPER.
14 16596924 HEXAGON BOLT M6X10 MM
15 504081994 ADAPTER
16 99432291 SEAL GASKET Ø28 MM
