F2BE0642A*A003

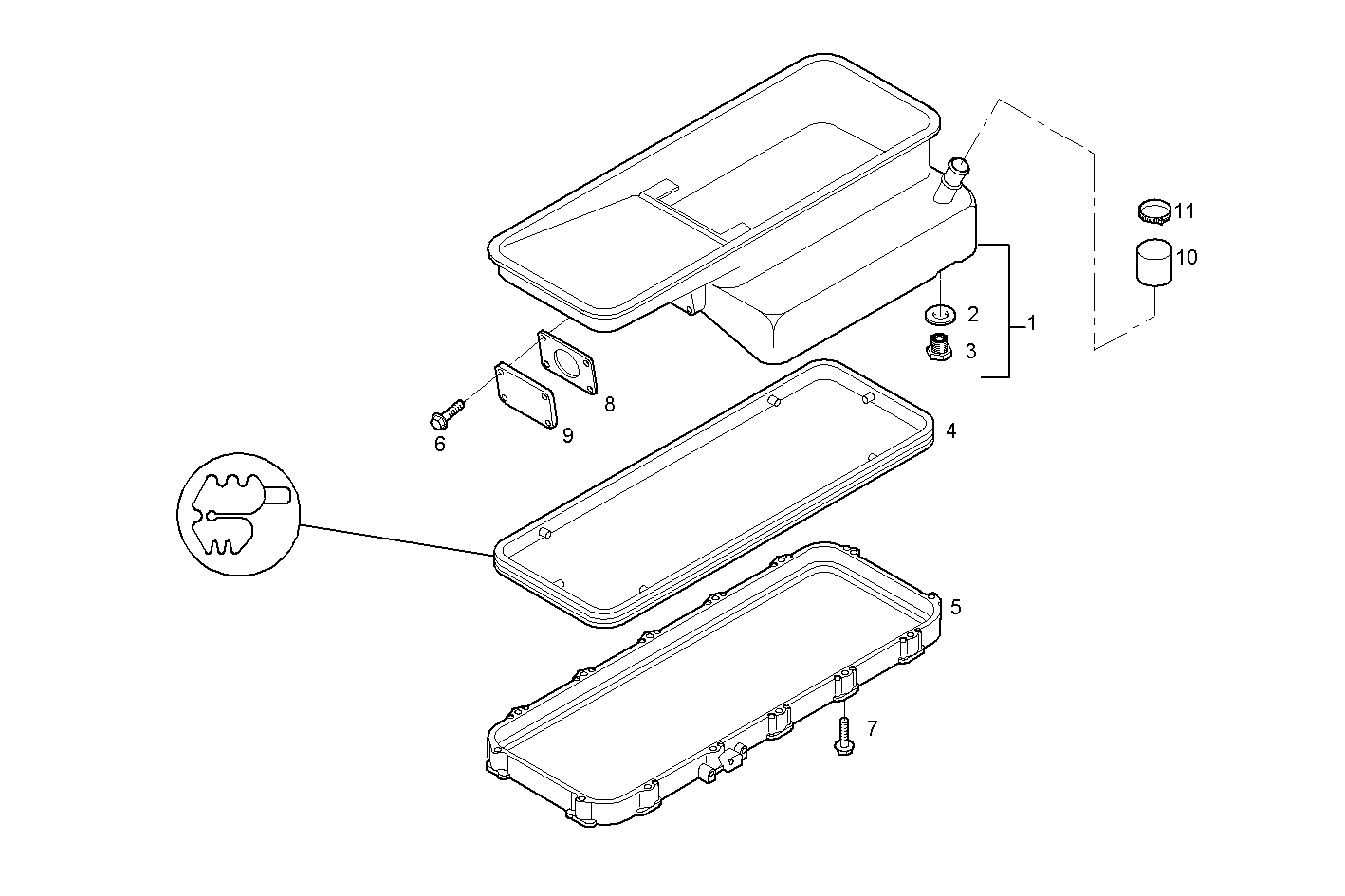

0420.236 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 500327426 | OIL SUMP |
| 2 | 16508460 | WASHER 22x27x1,5 |
| 3 | 16992611 | THREADED PLUG M22X1,5 |
| 4 | 99443902 | OIL SUMP GASKET |
| 5 | 99437092 | SPACING BAR |
| 6 | 18137825 | HEXAGON BOLT M6X16 |
| 7 | 16587525 | HEXAGON BOLT M10X45 MM |
| 8 | 99474411 | FLAT ENGINE GASKET Ø22X30 MM |
| 9 | 99474410 | COVER REAR |
| 10 | 4836520 | PLUG |
| 11 | 17764694 | CLIP Ø25/40 MM |
