F2BE0642A*A003

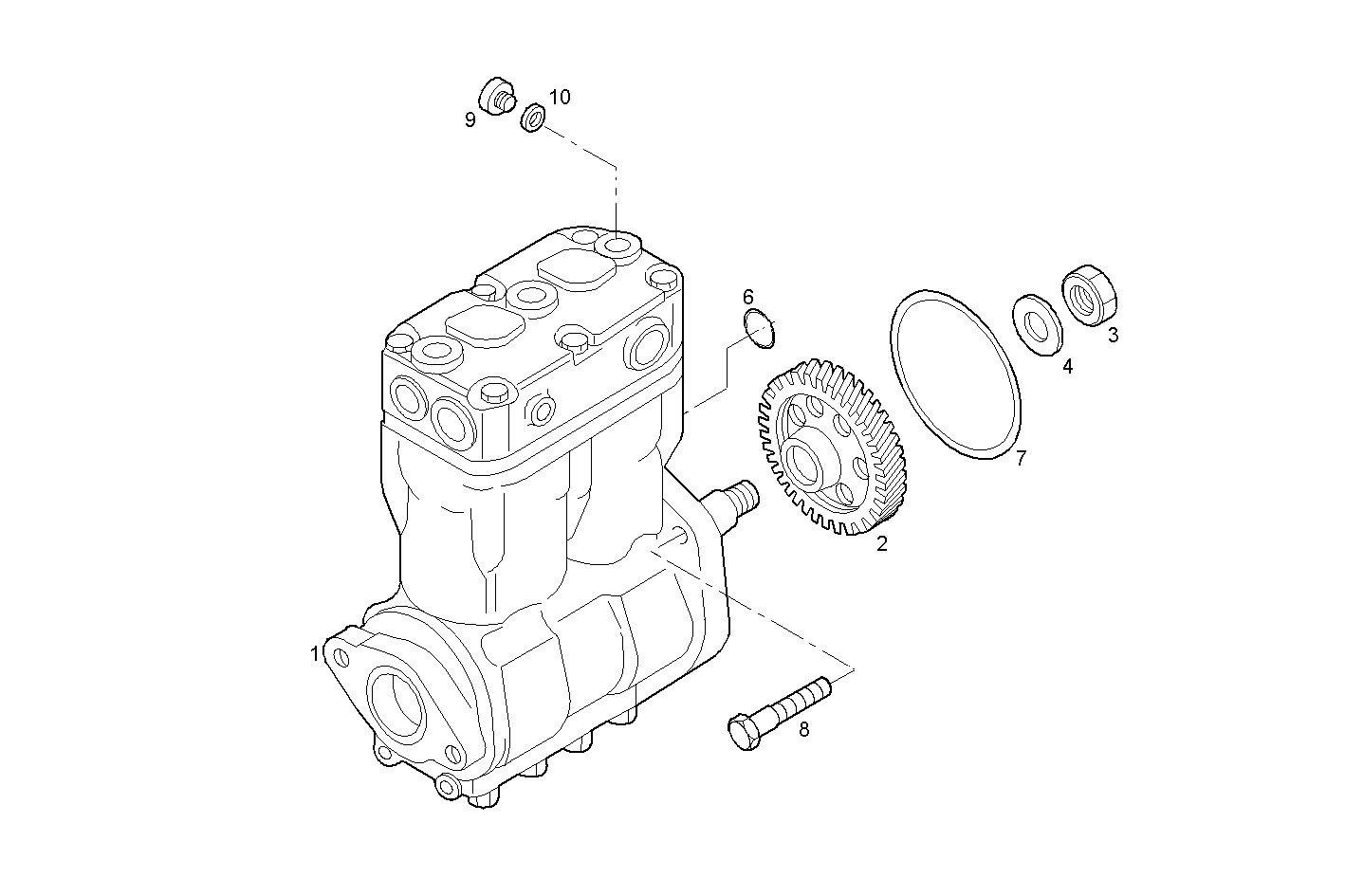

3801.002 AIR COMPRESSOR
Item | Part number | Description |
---|---|---|
1 | 41211340 | AIR COMPRESSOR ASSY |
2 | 99435001 | GEAR |
3 | 99471892 | HEXAGON NUT |
4 | 17095914 | WASHER |
6 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
7 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
8 | 16693924 | CYLIND-HEAD SCREW M12X35MM |
9 | 16993311 | THREADED PLUG M18X1,5 |
10 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
