F2BE0642A*A009

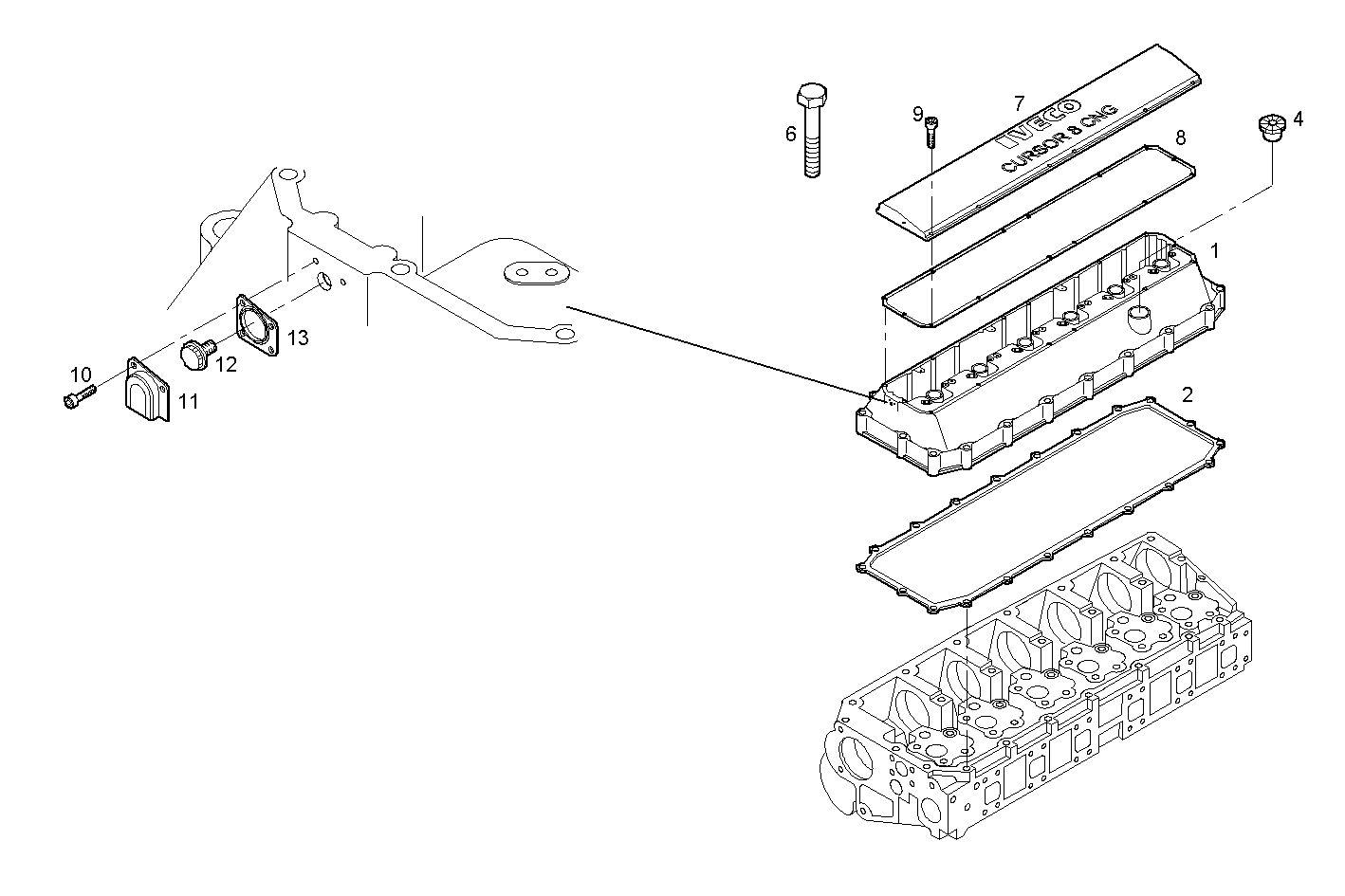

0630.035 CYL. HEAD COVERS
Item | Part number | Description |
---|---|---|
1 | 504078831 | CYL. HEAD COVER |
2 | 504055305 | HEAD COVER GASKET |
4 | 98442027 | OIL FILLER PLUG ASSY |
6 | 16592125 | HEXAGON BOLT M6X60 MM |
7 | 504080915 | CYL. HEAD COVER |
8 | 504028047 | HEAD COVER GASKET |
9 | 16689224 | SOCKET-HEAD SCREW M6X20 MM |
10 | 16687724 | CYLIND-HEAD SCREW |
11 | 504089741 | COVER |
12 | 504089750 | BREATHER VALVE |
13 | 504089740 | GASKET |
