F2BE0642F*B007

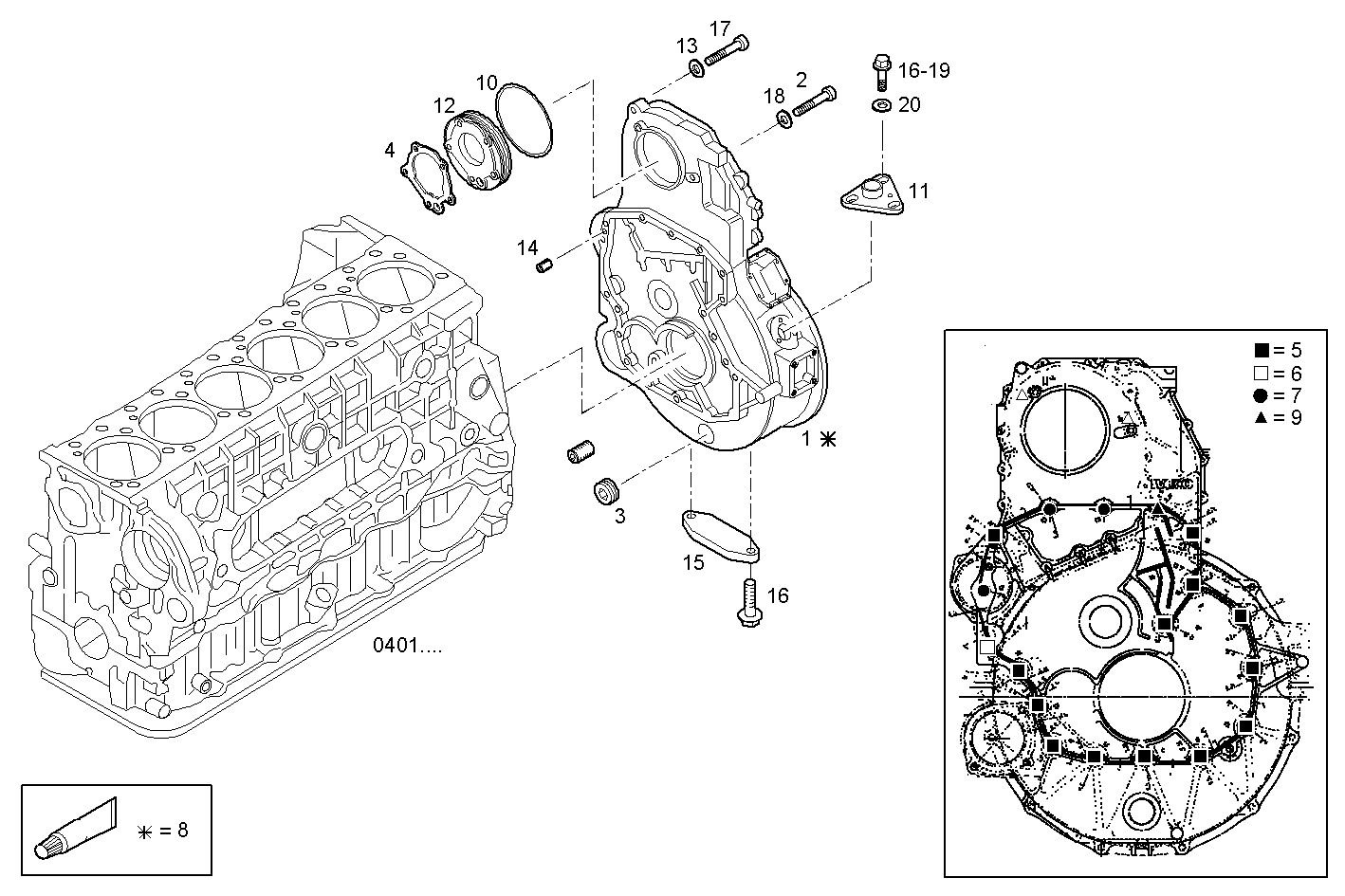

0432.046 REAR C.CASE COVER

Iveco/FPT REAR C.CASE COVER

Item Part number Description
1 504367295 TIMINGGEAR HOUSIN
2 500348322 CYLIND-HEAD SCREW M8X1,25X25 MM
3 504123677 THREADED PLUG M 52X2
4 504045791 FLAT ENGINE GASKET
5 16593224 HEXAGON BOLT M12X1,7X80 MM
6 16599424 HEXAGON BOLT M10X180 MM
7 16587325 HEXAGON BOLT M10X35 MM
8 2995644 ADHESIVE/STICKER
9 16593125 HEXAGON BOLT M10X100 MM
10 17292381 O-RING Ø129,8 MM SP=3,53 MM
11 504168296 CONNECTING PLATE
12 99448730 PLATE
13 17096824 WASHER Ø8,40X15 MM
14 500314968 DOWEL PIN Ø12 MM
15 4851842 COVER
16 16597925 HEXAGON BOLT M8X14 MM
17 16690724 CYLIND-HEAD SCREW M8X30 MM
18 14496524 WASHER Ø8X17 MM
19 61315661 HEXAGON BOLT M8X30
20 98474303 WASHER Ø8X14 MM SP=2,3 MM
