F2BE0642F*B007

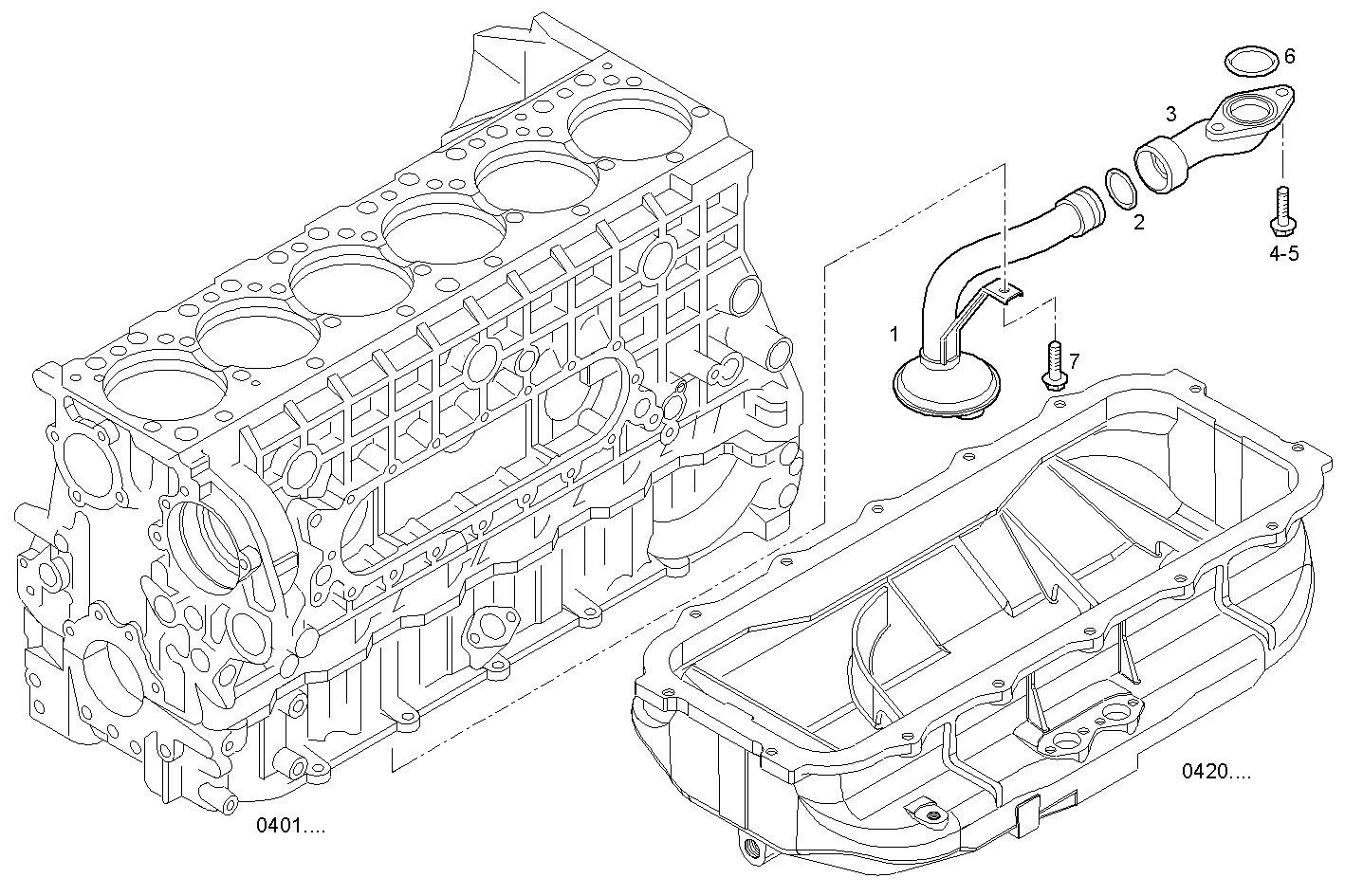

3050.001 SUCTION STRAINER
| Item | Part number | Description |
|---|---|---|
| 1 | 504333678 | SUCTION STRAINER |
| 2 | 17282981 | O-RING 2,62x34,59 |
| 3 | 98474898 | INTAKE ELBOW |
| 4 | 16592225 | HEXAGON BOLT M8X55 MM |
| 5 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
| 6 | 99477046 | O-RING Ø38 MM SP=3 MM |
| 7 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
