F2BE0642F*B007

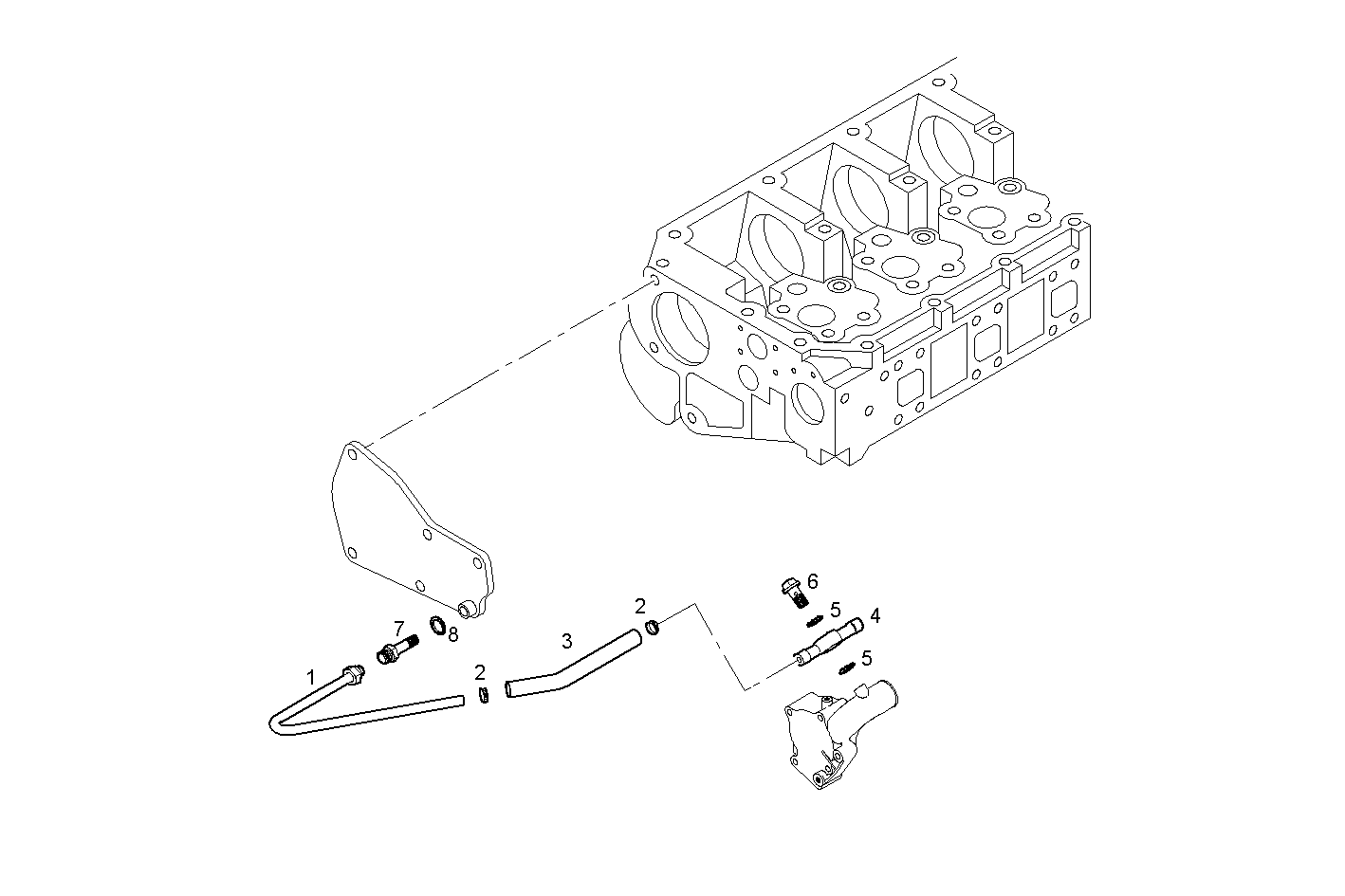

3252.036 BLEEDER TUBING
Item | Part number | Description |
---|---|---|
1 | 500380190 | PIPE |
2 | 18087993 | CLIP Ø8/16 MM |
3 | 504313892 | RUBBER SLEEVE |
4 | 4627990 | BREATHER CONN. |
5 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
6 | 4864081 | SCREW CONNECTOR |
7 | 99454269 | THREADED UNION |
8 | 99489016 | SEAL GASKET Ø10X17 MM SP =1,5 |
