F2BE0681A*BC13

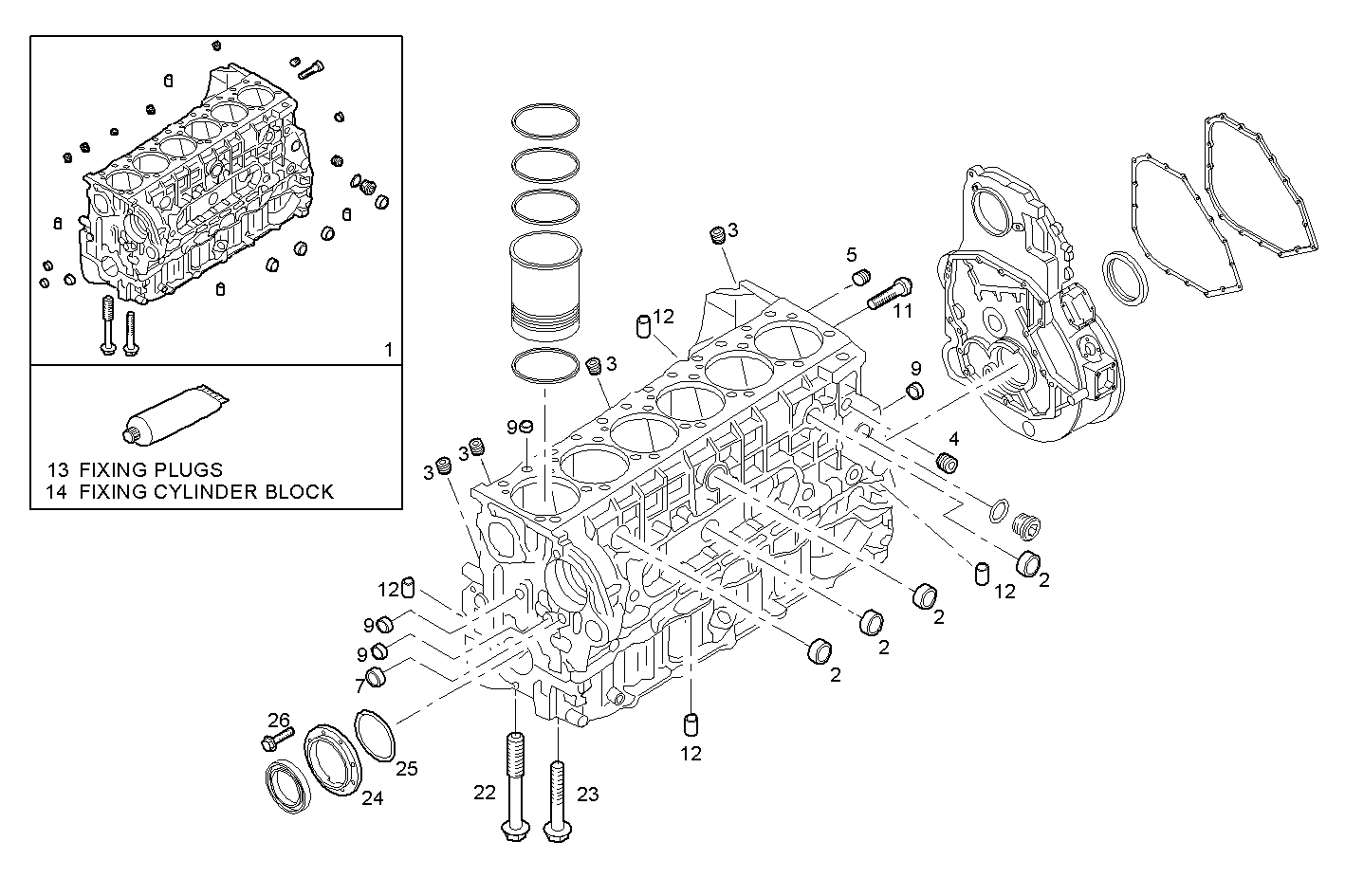

0401.000 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 504105687 CRANKCASE
2 16991370 LOCK PLUG Ø45 MM
3 504051237 THREADED PLUG DIAM=1/4"
4 99430692 THREADED PLUG 1/2''
5 98472270 THREADED PLUG
7 16990870 LOCK PLUG Ø28 MM
9 16990670 LOCK PLUG Ø22 MM
11 500356932 LOCK PLUG Ø12 MM
12 99467554 DOWEL PIN Ø14 MM
13 2992695 ADHESIVE/STICKER LOCTITE
14 2995644 ADHESIVE/STICKER
22 500354581 HEXAGON BOLT M16X2X156 MM
23 500354582 HEXAGON BOLT M10X1,5X120 MM
24 99466465 FRONT COVER
25 17292281 O-RING Ø126,59 MM SP=3,53 MM
26 16707134 SOCKET-HEAD SCREW M8X20 MM
