F2BE0681A*BC13

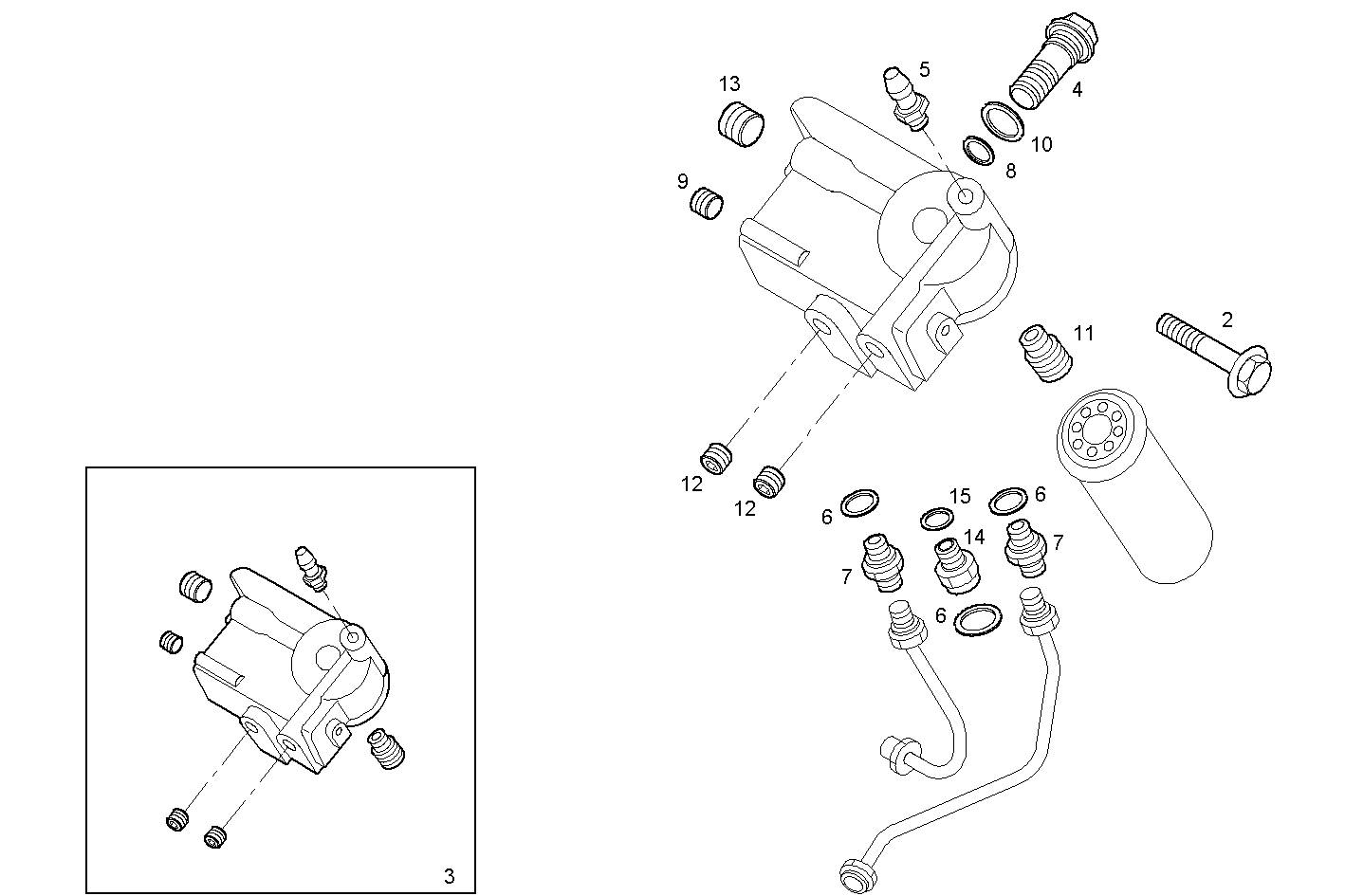

2004.000 FUEL FILTER SUPPORT

Iveco/FPT FUEL FILTER SUPPORT

Item Part number Description
2 16674034 HEXAGON BOLT M8X40 MM
3 500392440 FUEL FILT.SUPPORT ASSY
4 500343001 THREADED PLUG
5 500304562 BREATHER PLUG
6 99489019 WASHER Ø16X24 MM SP=1,5 MM
7 504081274 THREADED UNION M16X1,5 - M18X1,5
8 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
9 98474481 THREADED PLUG
10 17277881 O-RING Ø7,65 MM SP=1,78 MM
11 98498837 THREADED UNION M14X1,5 - M16X1,5
12 504051237 THREADED PLUG DIAM=1/4"
13 99430692 THREADED PLUG 1/2''
14 504023816 THREADED UNION
15 98474306 WASHER Ø12X20 MM SP=1,9 MM
