F2BE0681A*BC13

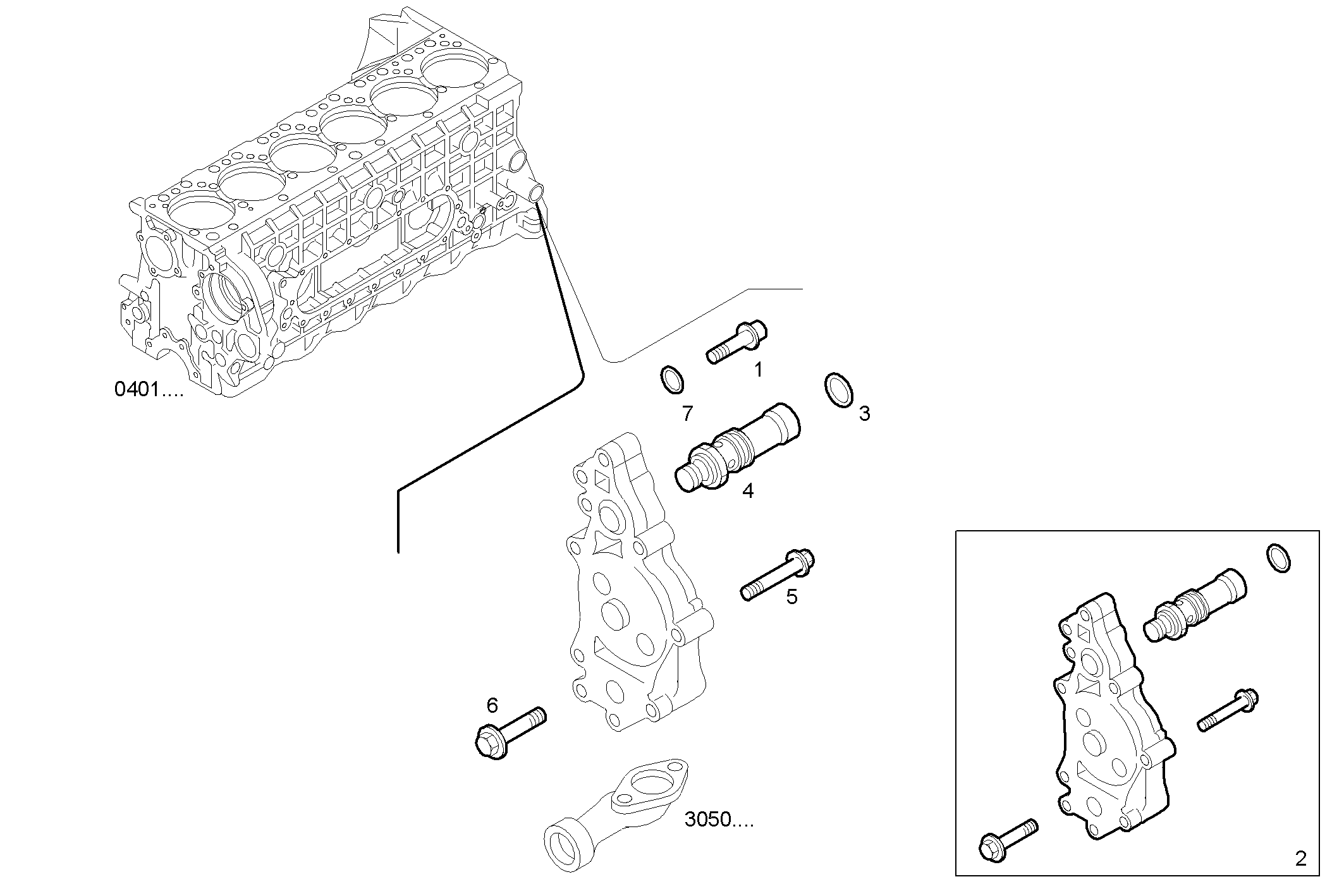

3001.001 OIL PUMP

Iveco/FPT OIL PUMP

Item Part number Description
1 16691324 CYLIND-HEAD SCREW M8X60 MM
2 99482251 LUBE OIL PUMP ASSY
3 17282181 O-RING Ø21,8 MM SP=2,6 MM
4 500304389 SAFETY VALVE
5 16591725 HEXAGON BOLT
6 18137825 HEXAGON BOLT M6X16
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
