F2BE0681A*BC13

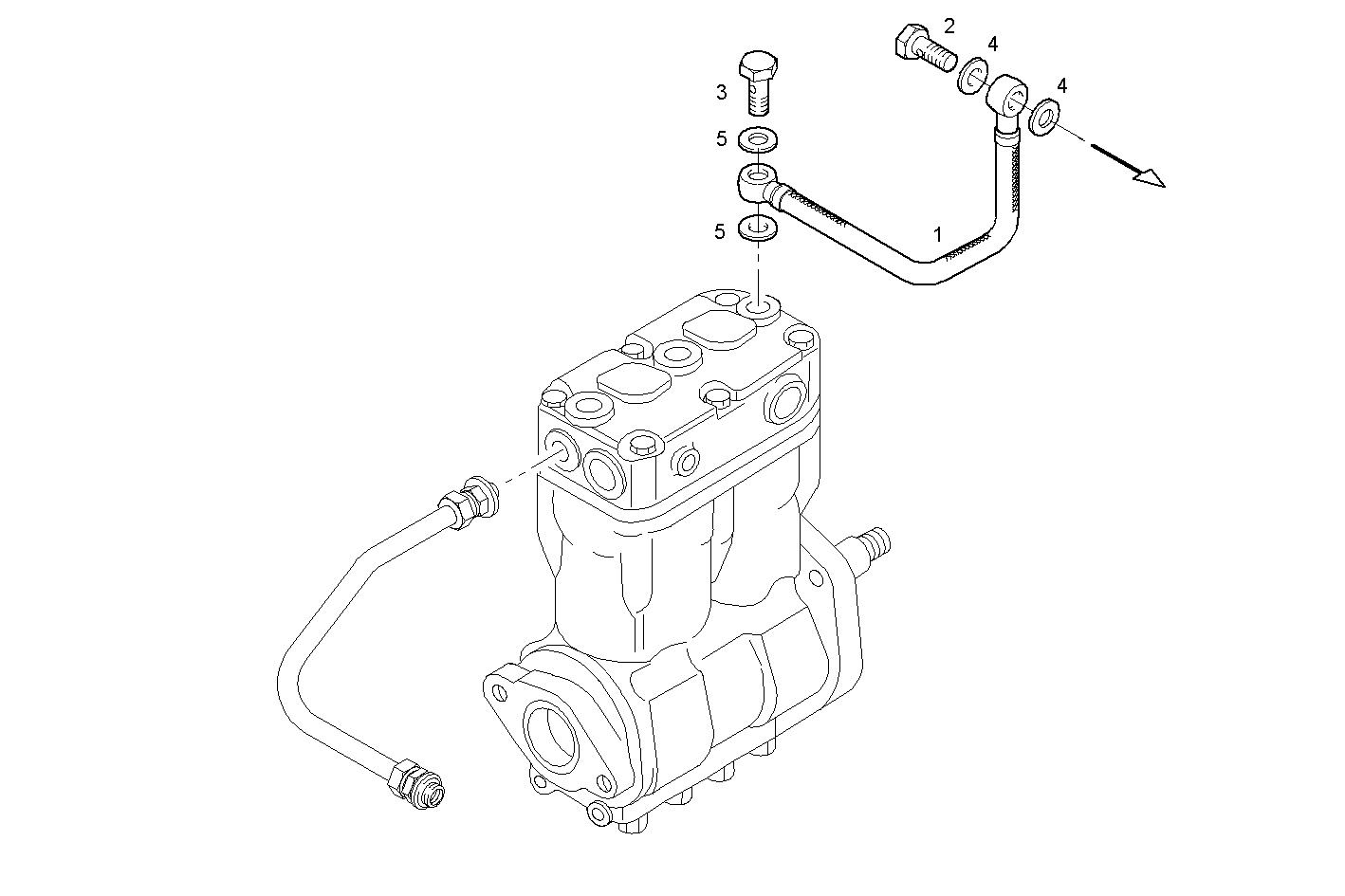

3250.007 COMPRESSOR EXIT PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504072410 | WATER PIPE |
| 2 | 504081282 | SCREW CONNECTOR M16X1,5 |
| 3 | 504081280 | BANJO BOLT M18X1,5 |
| 4 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 5 | 98474311 | SEAL GASKET Ø18X26 MM |
