F2BE0681A*BC13

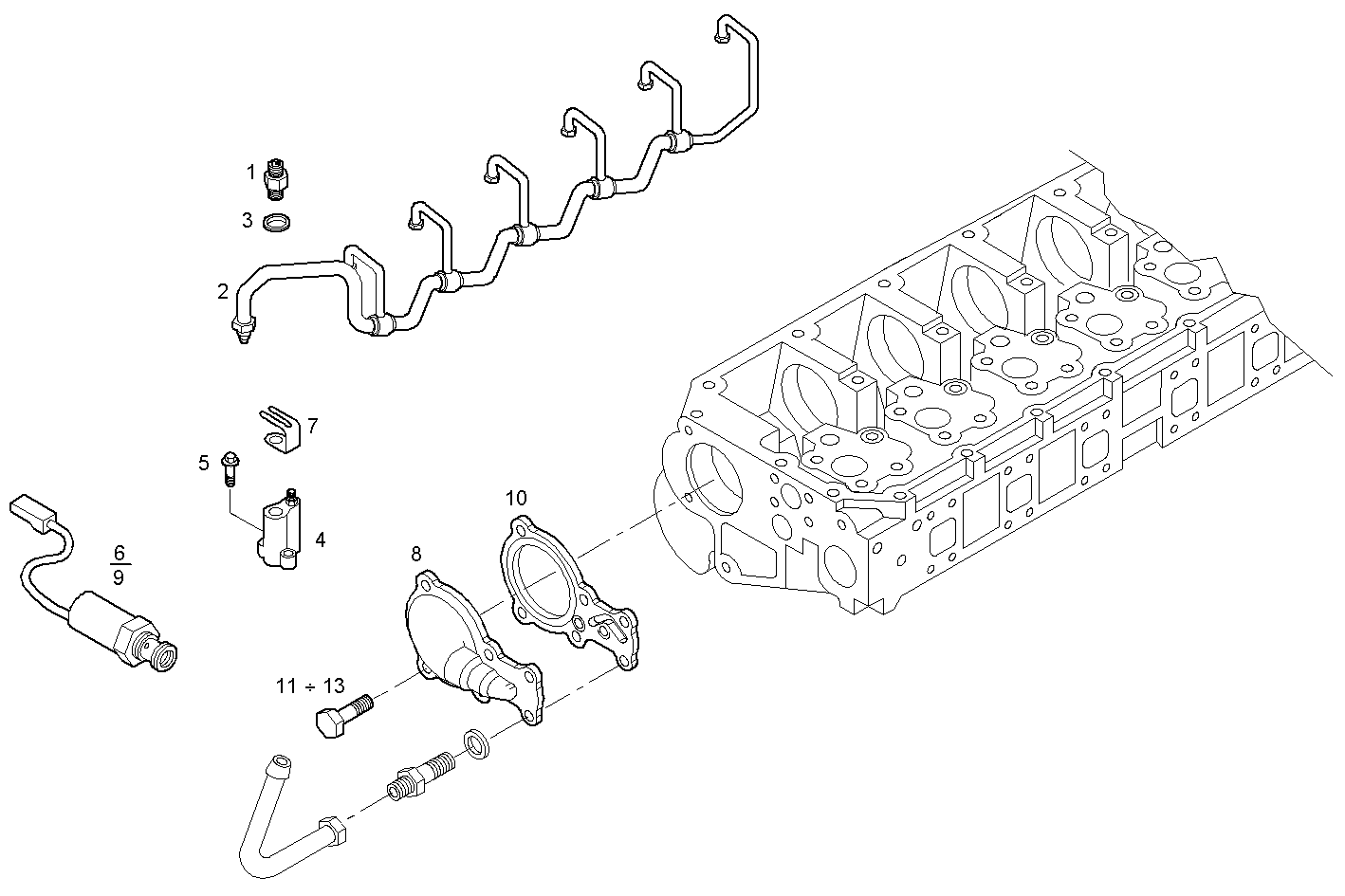

3700.000 ENGINE EXHAUST BRAKE
| Item | Part number | Description |
|---|---|---|
| 1 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 2 | 99446255 | OIL LINE |
| 3 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 4 | 504119399 | ENGINE BRAKE VALVE |
| 5 | 16707334 | CYLIND-HEAD SCREW M8X30 MM |
| 6 | 98496620 | ELECTROVALVE [UP TO # 17841] |
| 7 | 500376911 | RETAINING SPRING |
| 8 | 99450931 | SUPPORT |
| 9 | 99478611 | ELECTROVALVE |
| 10 | 504045790 | FLAT ENGINE GASKET |
| 11 | 16673735 | HEXAGON BOLT M8X25 MM |
| 12 | 16674034 | HEXAGON BOLT M8X40 MM |
| 13 | 16674134 | HEXAGON BOLT M8X45 MM |
