F2BE0681A*BC13

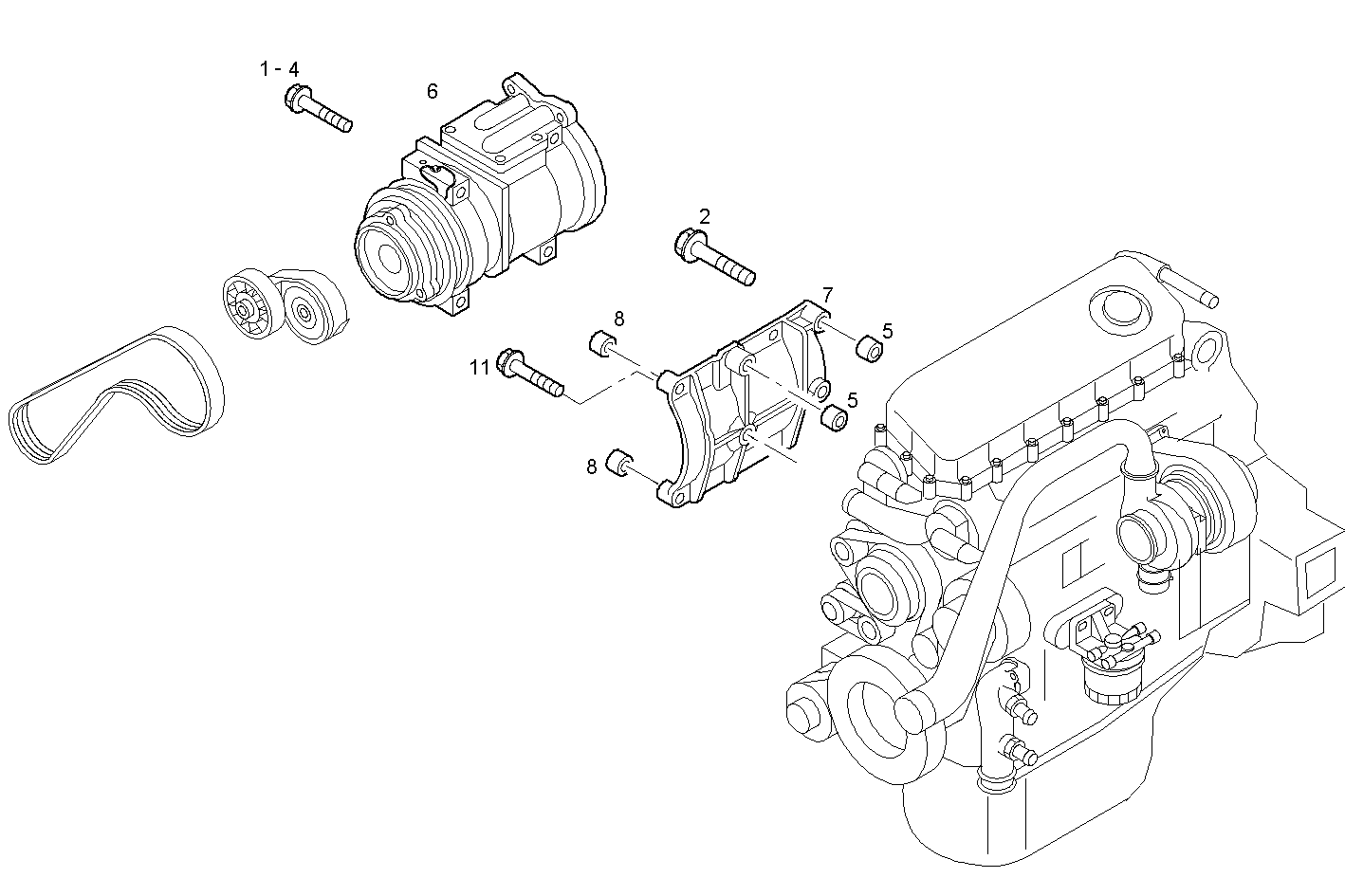

3900.035 COMPRESSOR AIR CONDITIONING
| Item | Part number | Description |
|---|---|---|
| 1 | 16592625 | HEXAGON BOLT M8X80 MM |
| 2 | 16587425 | HEXAGON BOLT M10X40 MM |
| 4 | 16598224 | HEXAGON BOLT M8X90 MM |
| 5 | 98405462 | DOWEL PIN Ø10,2 MM |
| 6 | 98497470 | AIR COND.COMPRESS. ASSY |
| 7 | 99435555 | SUPPORT |
| 8 | 99435557 | DOWEL PIN Ø8,5 MM |
| 11 | 16587125 | HEXAGON BOLT M10X25 MM |
