F2BE0682F*B403

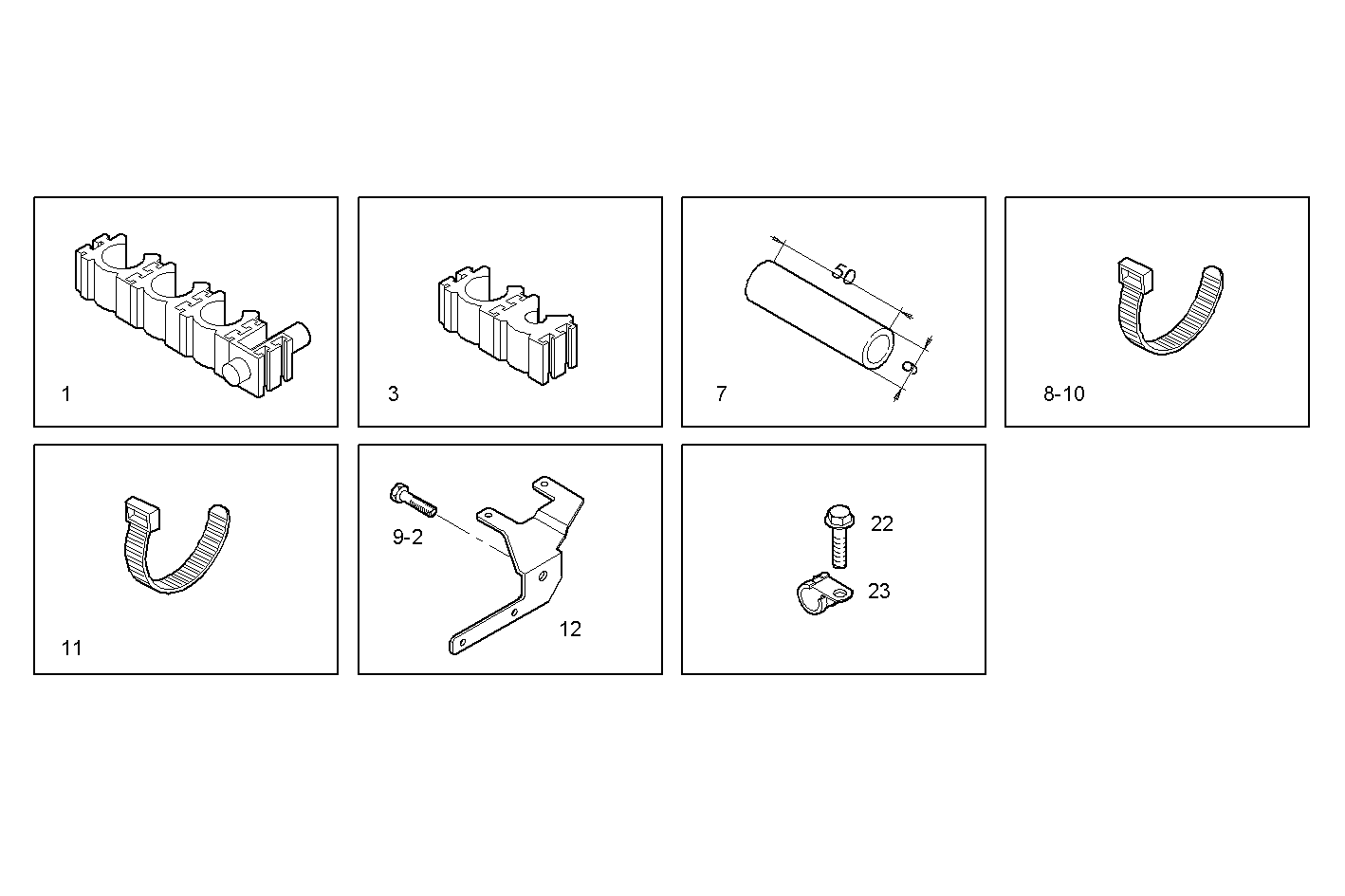

0407.004 FIXING EQUIPMENT
Item | Part number | Description |
---|---|---|
1 | 504060998 | SPRING CLAMP |
2 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
3 | 500347017 | RETAINER |
7 | 17816814 | SPACING BAR |
8 | 41040495 | CLIP |
9 | 16586625 | HEXAGON BOLT M8X35 MM |
10 | 99455033 | CLIP |
11 | 42099097 | CABLE STRAP |
12 | 504038594 | FASTENING BRACKET |
22 | 16586925 | HEXAGON BOLT M8X50 MM |
23 | 17316599 | PIPE CLIP |
