F2BE0682F*B403

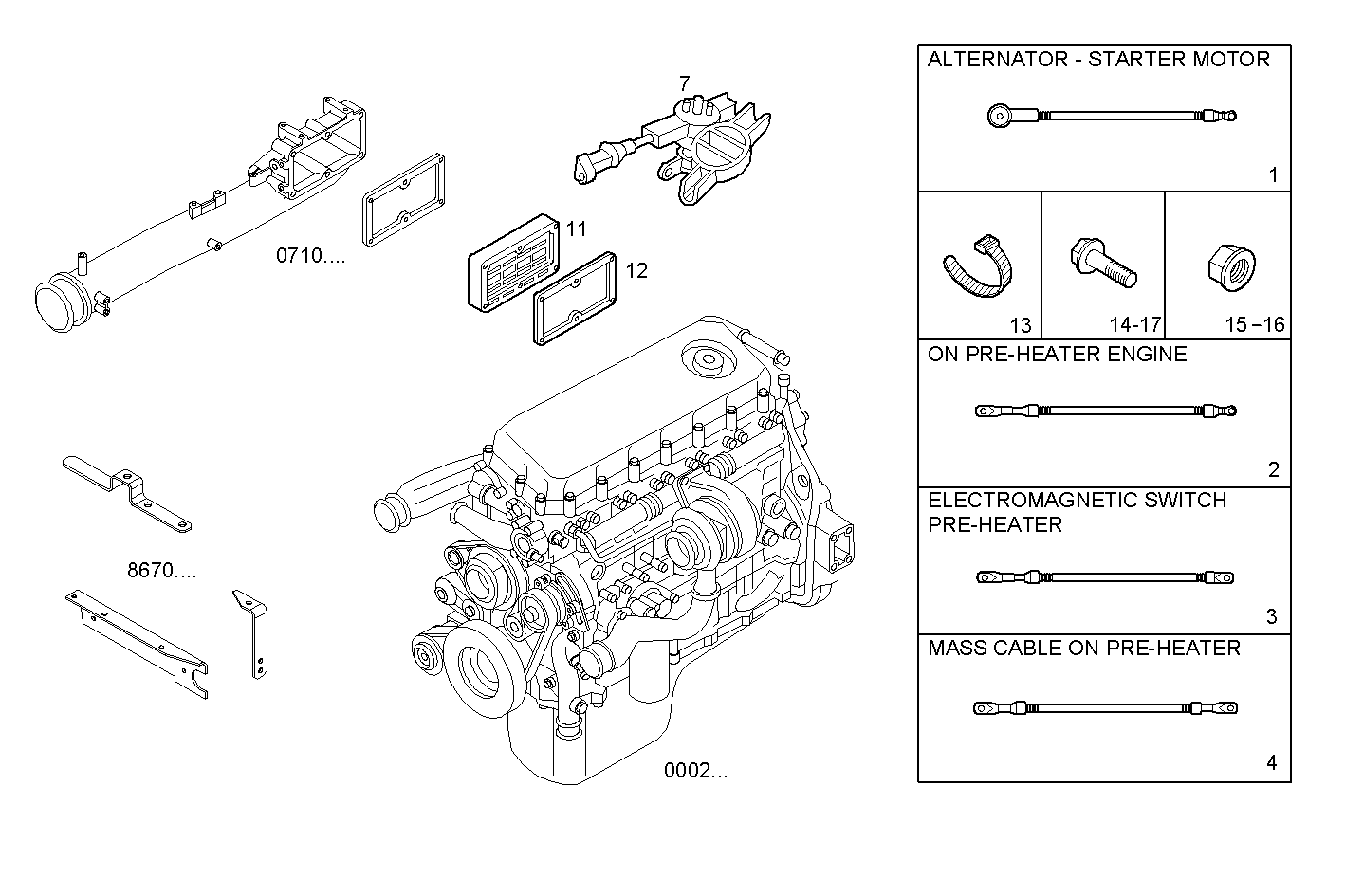

3650.047 THERMO-STARTER
Item | Part number | Description |
---|---|---|
1 | 41207263 | WIRE/CABLE |
2 | 41207261 | WIRE/CABLE ON PRE-HEATER ENGINE |
3 | 41200489 | WIRE/CABLE ELECTRON.SWITCH HEATER-ENGINE |
4 | 41207269 | WIRE/CABLE MASS CABLE ON PRE-HEATER ENGIN [UP TO # 45072] |
7 | 99449300 | RELAY 24v-150a |
11 | 99437042 | RESISTOR |
12 | 504026624 | FLAT ENGINE GASKET |
13 | 99455033 | CLIP |
14 | 16585625 | HEXAGON BOLT M6X12 |
15 | 16750225 | HEXAGON NUT M8 |
16 | 17044625 | HEXAGON NUT M6 |
17 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
