F2BE0684A*B001

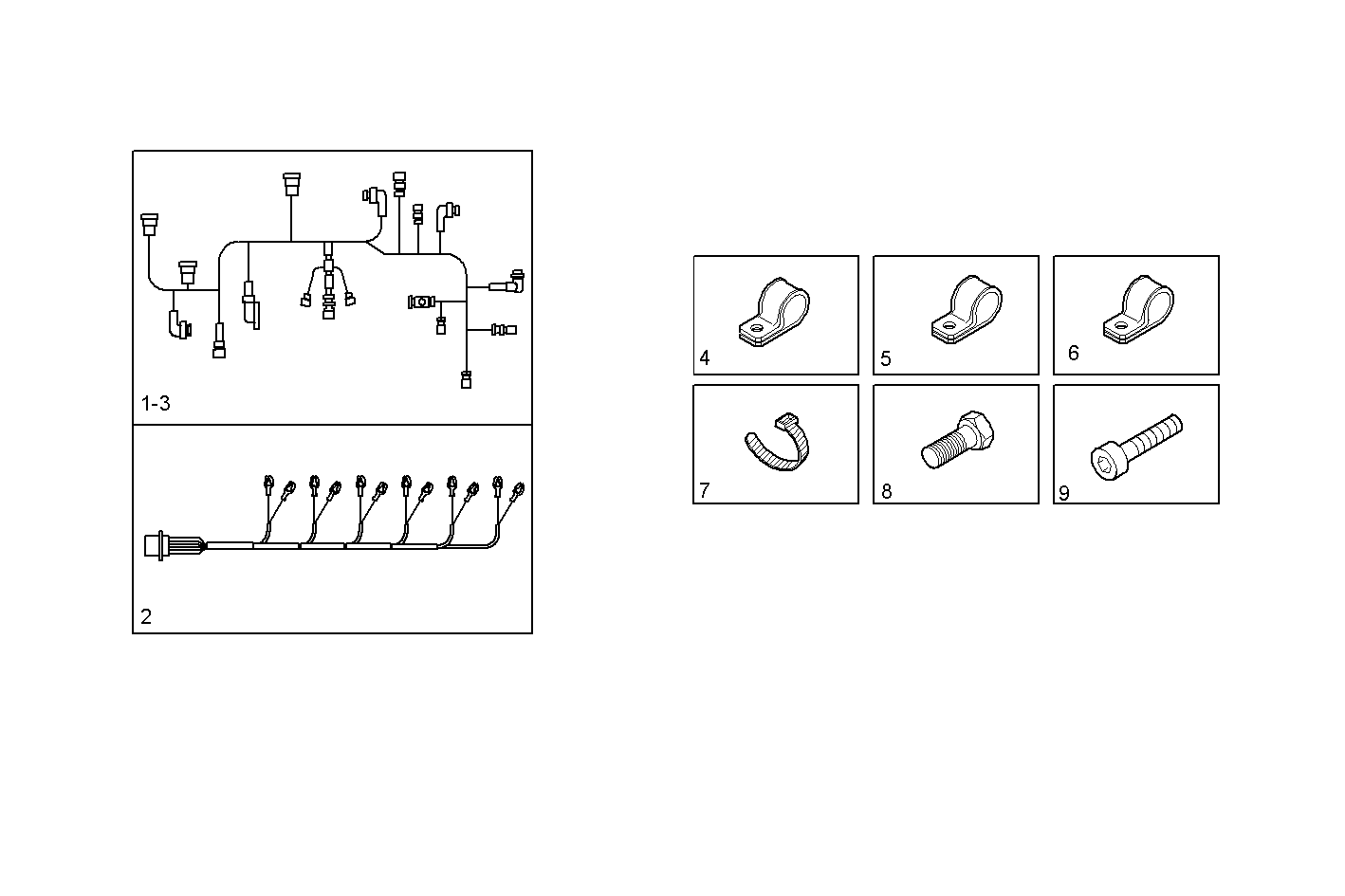

1730.031 ENGINE CABLE
Item | Part number | Description |
---|---|---|
1 | 504041673 | SET OF WIRING [FROM # 36496] |
2 | 500336911 | WIRE/CABLE FOR INJECTORS |
3 | 504074620 | SET OF WIRING [UP TO # 36496] |
4 | 17310001 | FASTENING BRACKET Ø4 MM |
5 | 17310401 | FASTENING BRACKET Ø8 MM |
6 | 17310501 | FASTENING BRACKET Ø10 MM |
7 | 99455033 | CLIP |
8 | 11612224 | HEXAGON BOLT M6X12 MM |
9 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
