F2BE0684A*B001

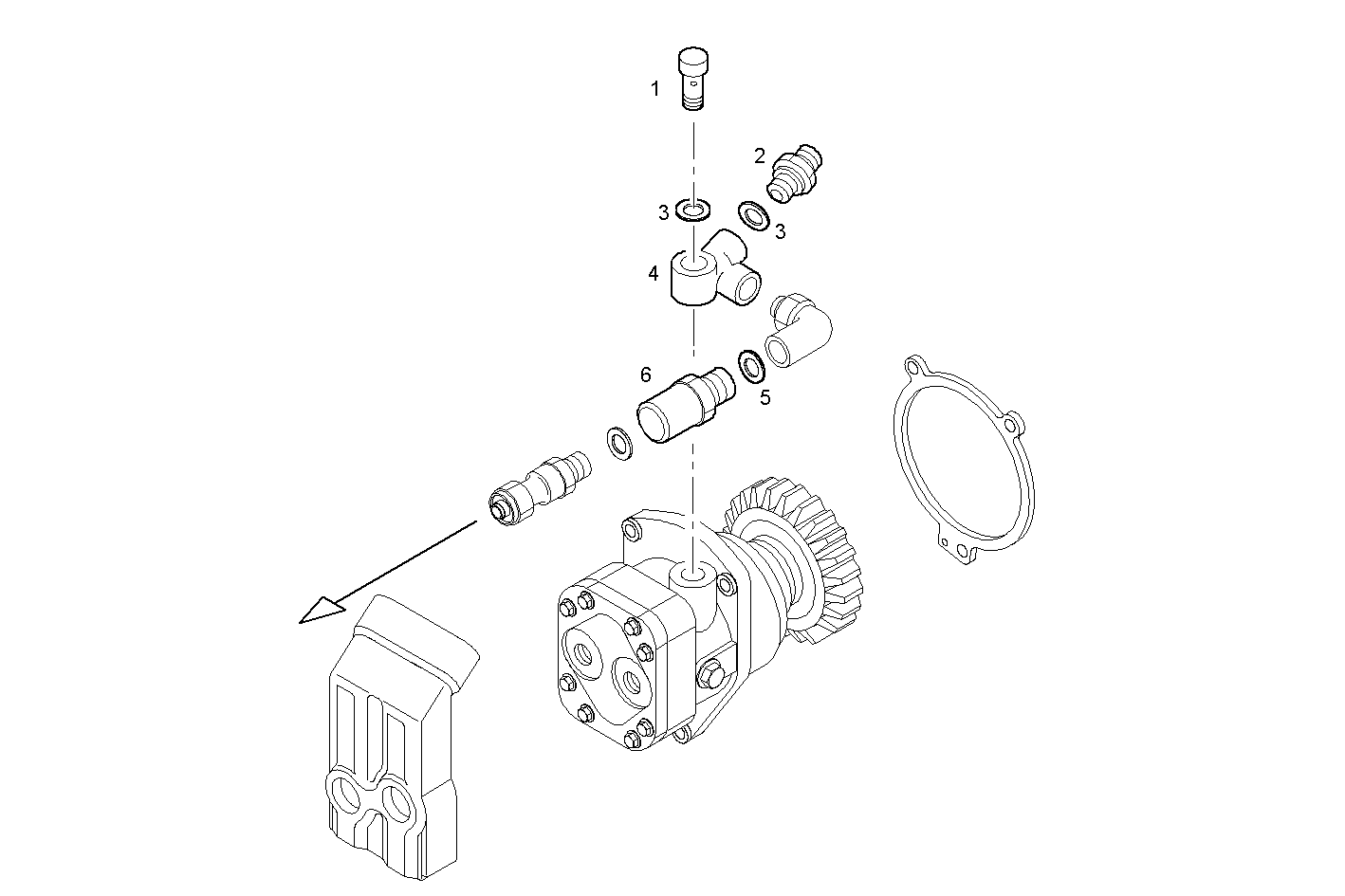

2042.008 EXCESS PRESSURE RELIEF VALVE
| Item | Part number | Description |
|---|---|---|
| 1 | 504087373 | SCREW CONNECTOR M16X1,5 |
| 2 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 4 | 500342081 | PIPE SOCKET |
| 5 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 6 | 500328251 | VALVE 0,2-0,3 BAR |
