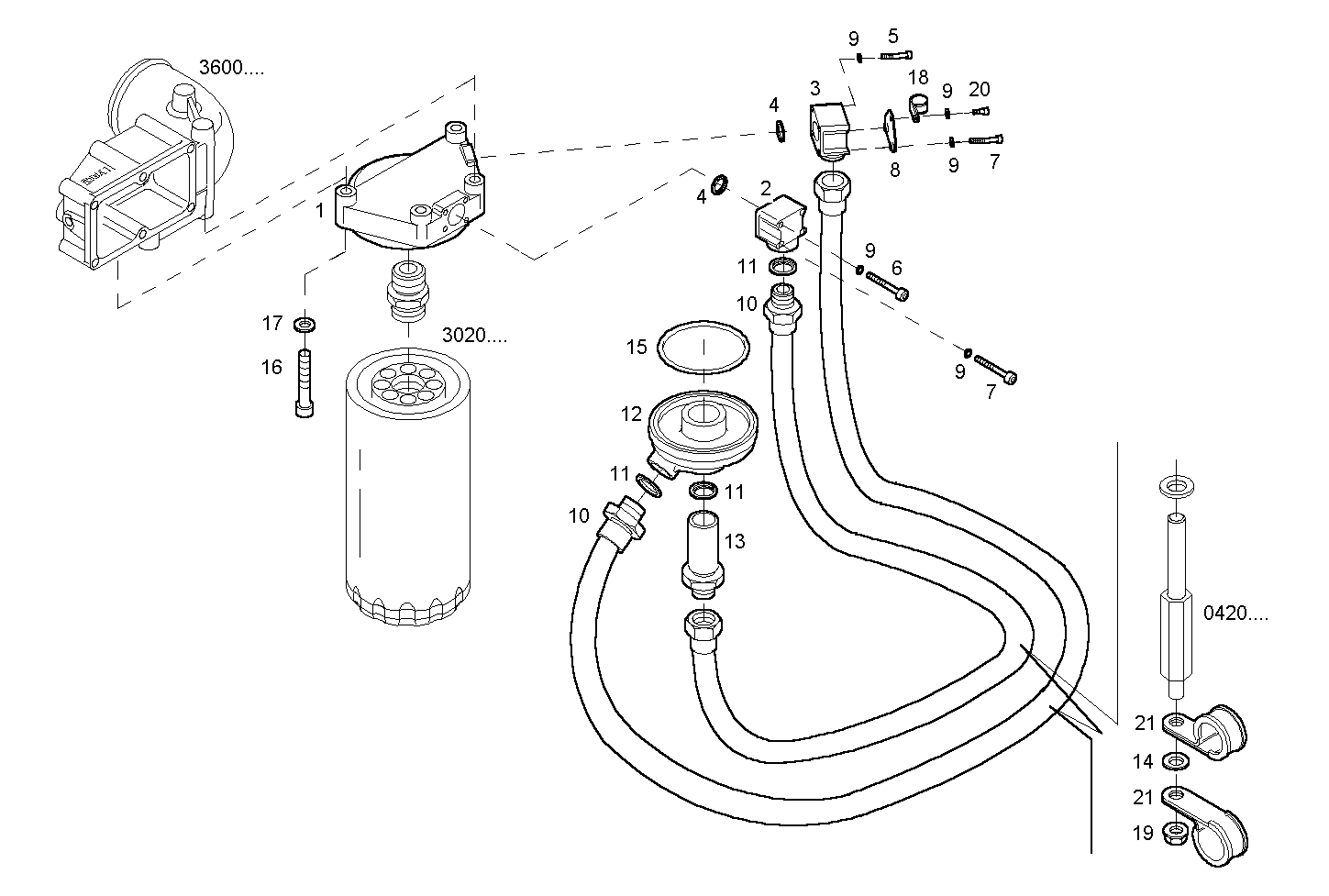

Item |
Part number |
Description |
1 |
504005573 |
SUPPORT |
2 |
504005572 |
PIPE SOCKET |
3 |
98481998 |
ELBOW COUPLING |
4 |
17282281 |
O-RING 2,62x23,47 |
5 |
16689724 |
CYLIND-HEAD SCREW M6X45 MM |
6 |
16689824 |
CYLIND-HEAD SCREW M6X50 MM |
7 |
16689924 |
CYLIND-HEAD SCREW |
8 |
504009810 |
RETAINER |
9 |
17088474 |
WASHER Ø6X12 MM |
10 |
504005571 |
OIL LINE |
11 |
99434480 |
SEAL GASKET Ø30X40 MM |
12 |
504005569 |
SUPPORT |
13 |
500382730 |
PIPE SOCKET |
14 |
17094924 |
WASHER Ø8X16 MM |
15 |
17291281 |
O-RING Ø94,84 MM SP=3,53 MM |
16 |
16692924 |
SCREW M10X65 |
17 |
17095024 |
SPRING WASHER Ø10X18 MM |
18 |
17315290 |
LOCK/YOKE |
19 |
17044721 |
HEXAGON NUT M8X1,25 |
20 |
16689124 |
CYLIND-HEAD SCREW M6X16 MM |
21 |
17317390 |
FASTENING BRACKET Ø28 MM x M8 |
