F2BE0684A*B002

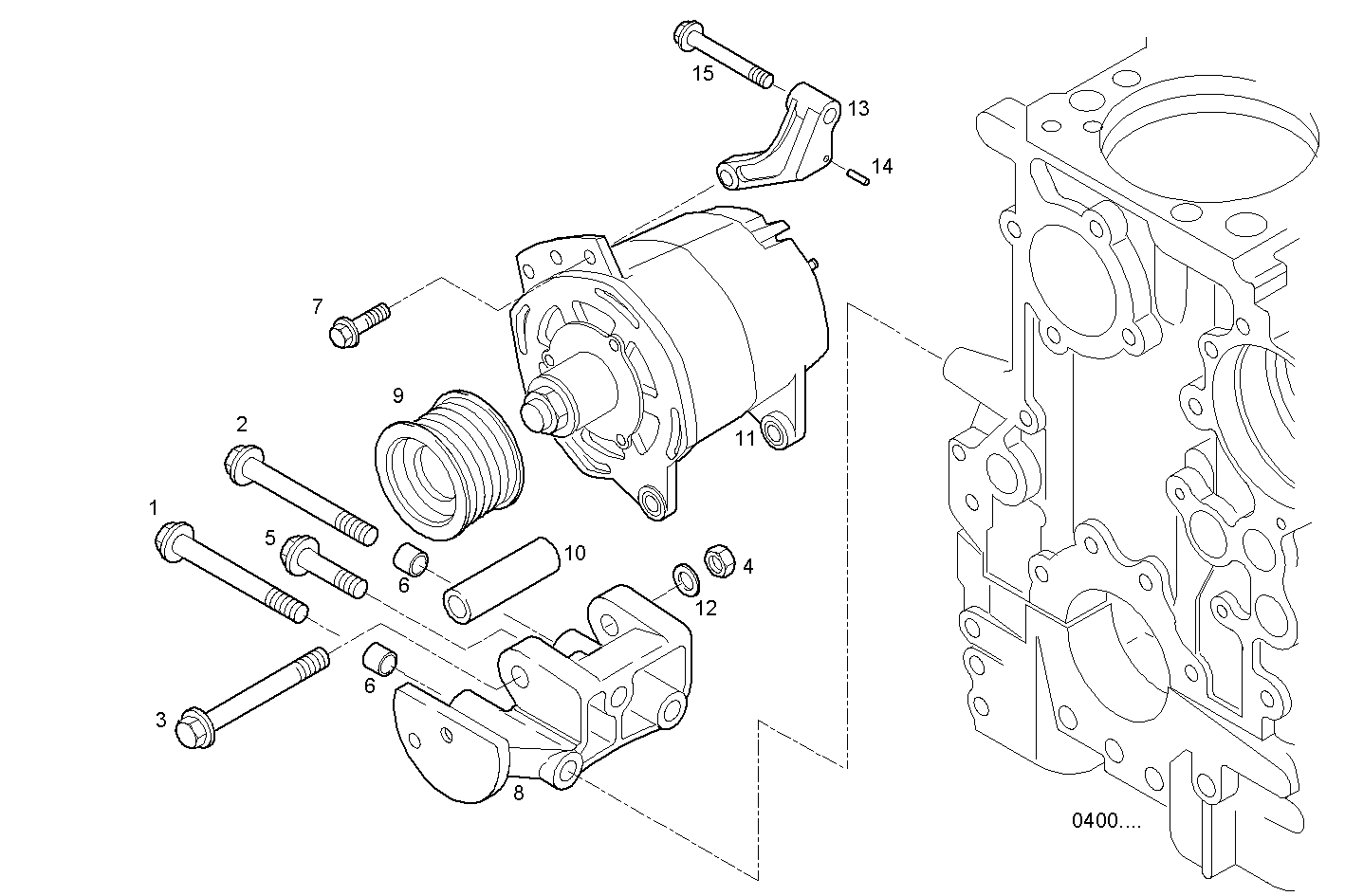

4000.152 GENERATOR

Iveco/FPT GENERATOR

Item Part number Description
1 16587824 HEXAGON BOLT M10X1,5X60 MM
2 16593125 HEXAGON BOLT M10X100 MM
3 16600024 HEXAGON BOLT M12X160 MM
4 17038425 HEXAGON NUT M12 (8)
5 16692524 CYLIND-HEAD SCREW M10X45 MM
6 98405462 DOWEL PIN Ø10,2 MM
7 500399332 HEXAGON BOLT
8 500356795 GENERATOR SUPPORT
9 500359878 PULLEY
10 500399334 SPACER BUSH
11 504073358 ALTERNATOR ASSY [UP TO #…]
11 504257252 ALTERNATOR ASSY [FROM #…]
12 17097324 WASHER Ø12X24 MM
13 500357615 RETAINER
14 17221710 DOWEL PIN
15 16588624 HEXAGON BOLT M12x60 MM (8.8)
