F2BE0684A*B003

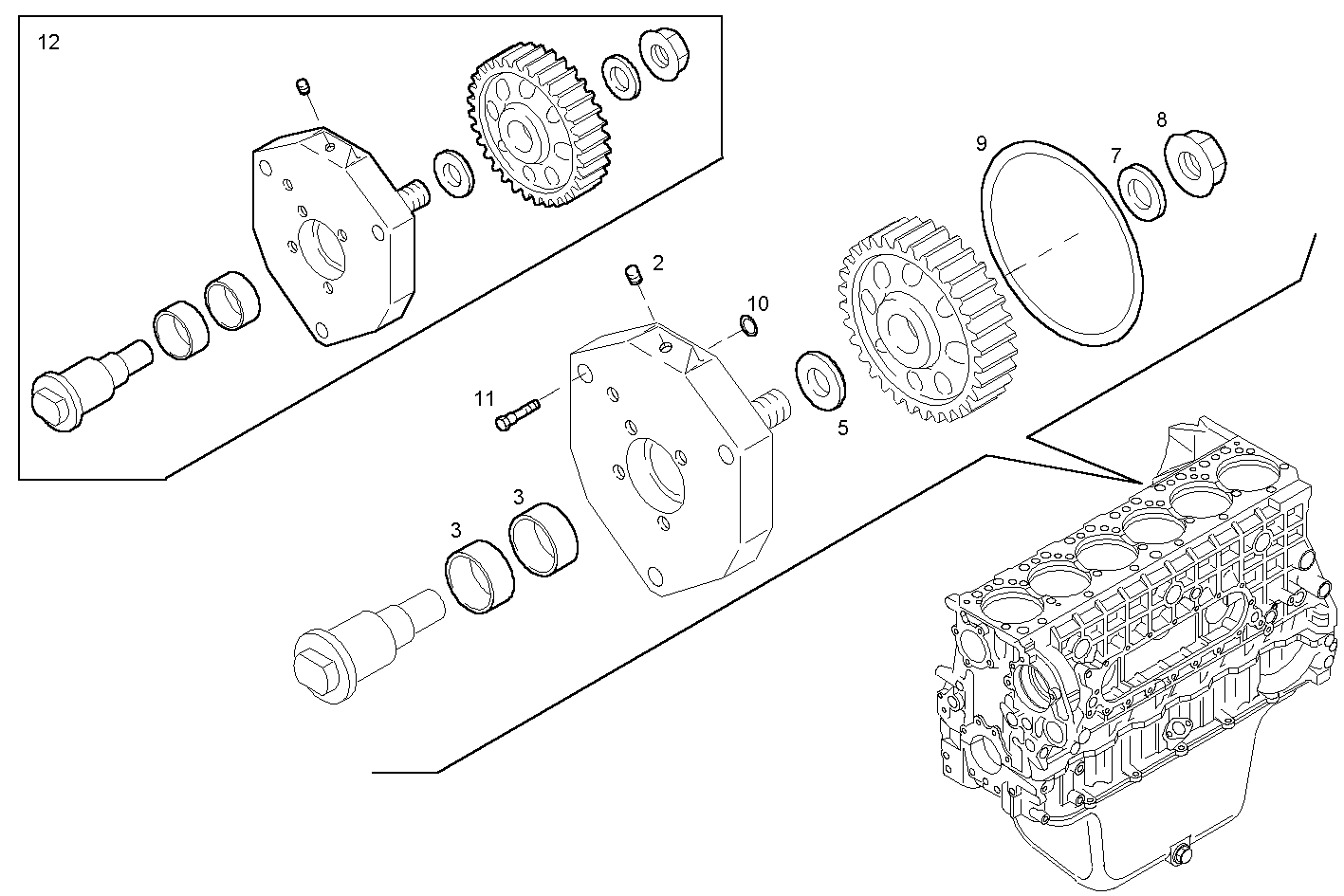

3500.034 POWER TAKE OFF
Item | Part number | Description |
---|---|---|
2 | 98472270 | THREADED PLUG |
3 | 4788087 | BUSH VANDERVELL |
5 | 500351319 | WASHER |
7 | 17096014 | WASHER Ø20X37 MM |
8 | 17046231 | NUT M20 |
9 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
10 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
11 | 16678134 | HEXAGON BOLT M12X45 |
12 | 504026315 | POWER TAKE OFF ASSY |
