F2BE0684B*B131

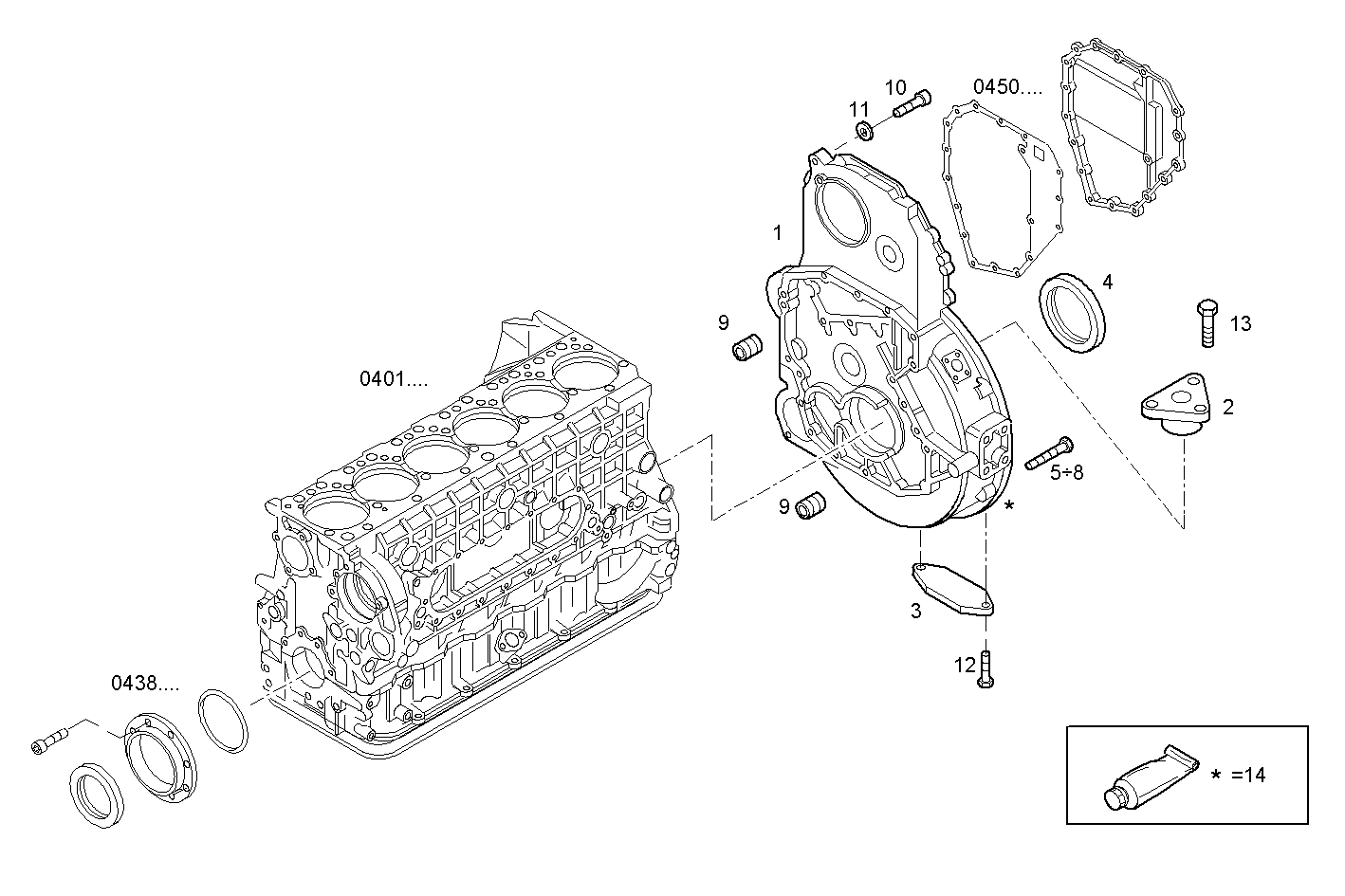

0432.045 REAR C.CASE COVER
| Item | Part number | Description |
|---|---|---|
| 1 | 504004737 | TIMINGGEAR HOUSIN [FROM # 18431] |
| 2 | 99472521 | CONNECTING PLATE |
| 3 | 4851842 | COVER |
| 4 | 99447291 | SHAFT SEAL |
| 5 | 16593224 | HEXAGON BOLT M12X1,7X80 MM |
| 6 | 16593124 | HEXAGON BOLT M10X100 MM |
| 7 | 61315661 | HEXAGON BOLT M8X30 |
| 8 | 16599424 | HEXAGON BOLT M10X180 MM |
| 9 | 500314968 | DOWEL PIN Ø12 MM |
| 10 | 500348322 | CYLIND-HEAD SCREW M8X1,25X25 MM |
| 11 | 98474303 | WASHER Ø8X14 MM SP=2,3 MM |
| 12 | 16597924 | HEXAGON BOLT M8X14 MM |
| 13 | 16587324 | HEXAGON BOLT M10X35 MM |
| 14 | 1903673 | ADHESIVE/STICKER LOCTITE |
