F2BE0684B*B131

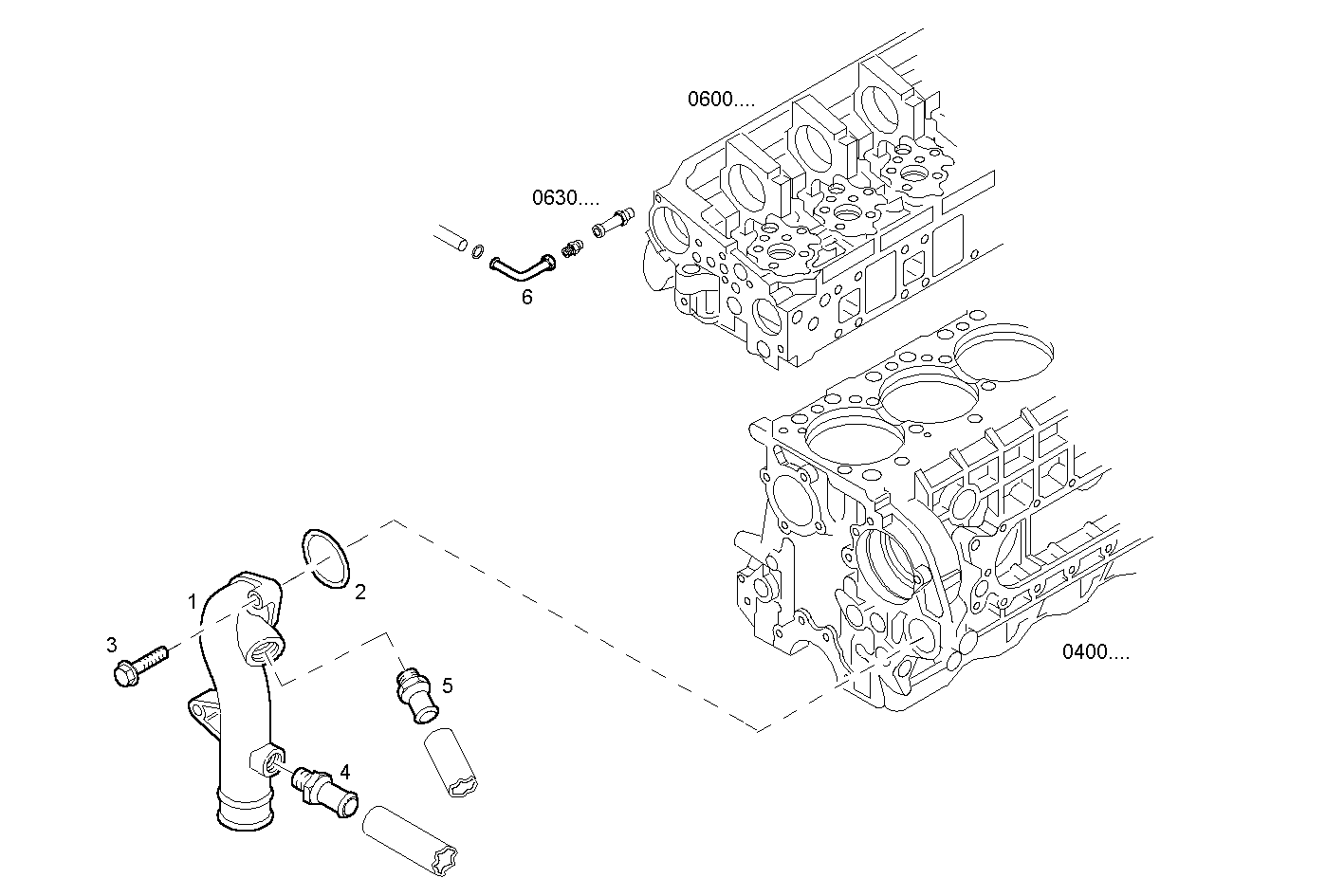

3210.248 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 99469567 | WATER PIPE |
| 2 | 17290081 | O-RING Ø56,74 MM SP=3,53 MM |
| 3 | 16586924 | HEXAGON BOLT M8X50 MM |
| 4 | 98475758 | PIPE SOCKET |
| 5 | 99464284 | PIPE SOCKET M30X1,5 |
