F2BE0684B*B131

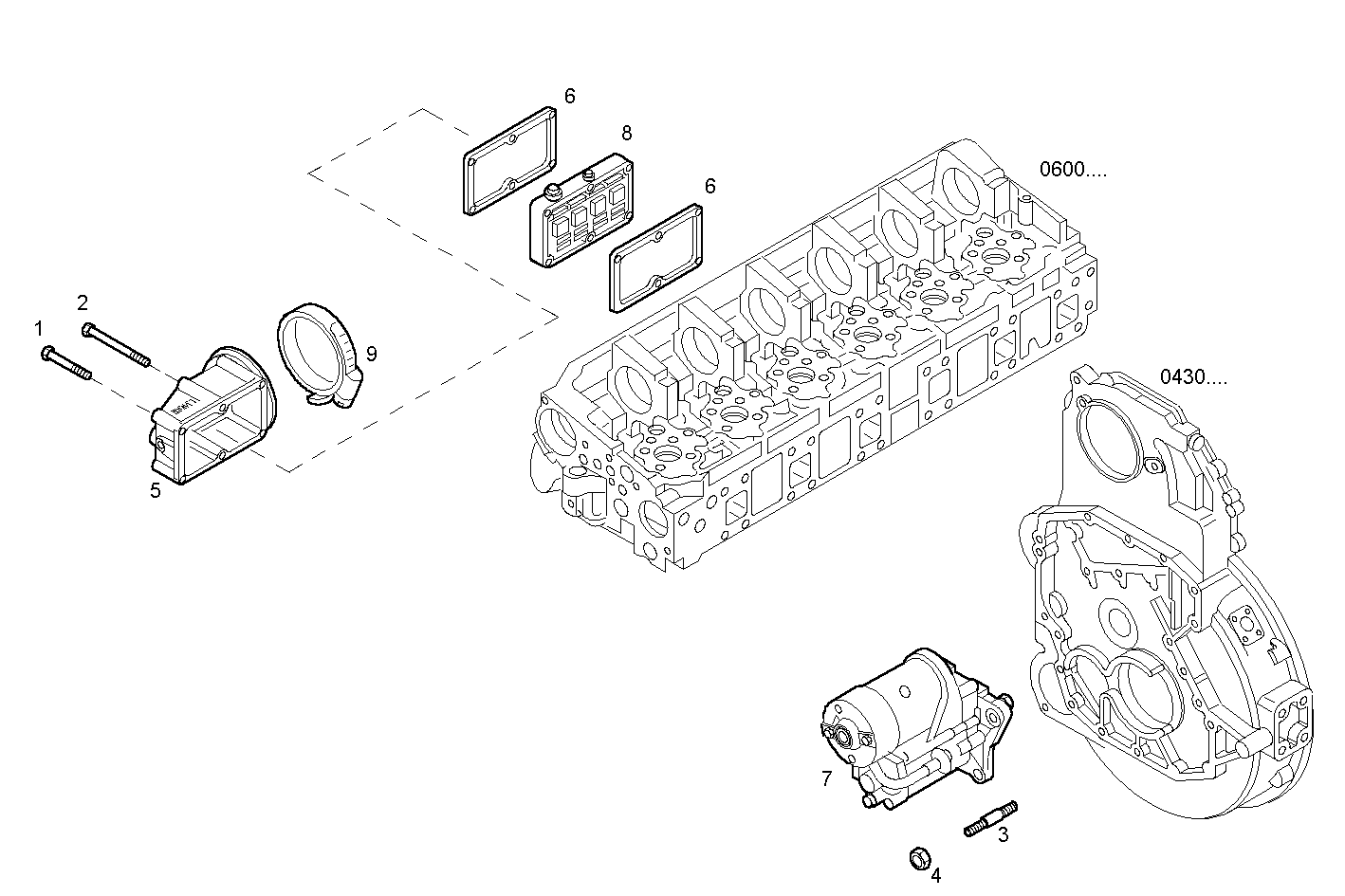

3600.107 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 16593124 | HEXAGON BOLT M10X100 MM |
| 2 | 16599224 | HEXAGON BOLT M10X140 MM |
| 3 | 16748624 | STUD M10X30 MM |
| 4 | 17044821 | NUT M10 |
| 5 | 500365237 | INTAKE ELBOW |
| 6 | 504026624 | FLAT ENGINE GASKET |
| 7 | 99432760 | STARTER MOTOR ASSY NIPPONDENSO |
| 8 | 99437042 | RESISTOR |
| 9 | 99435103 | CLIP |
