F2BE0684B*B131

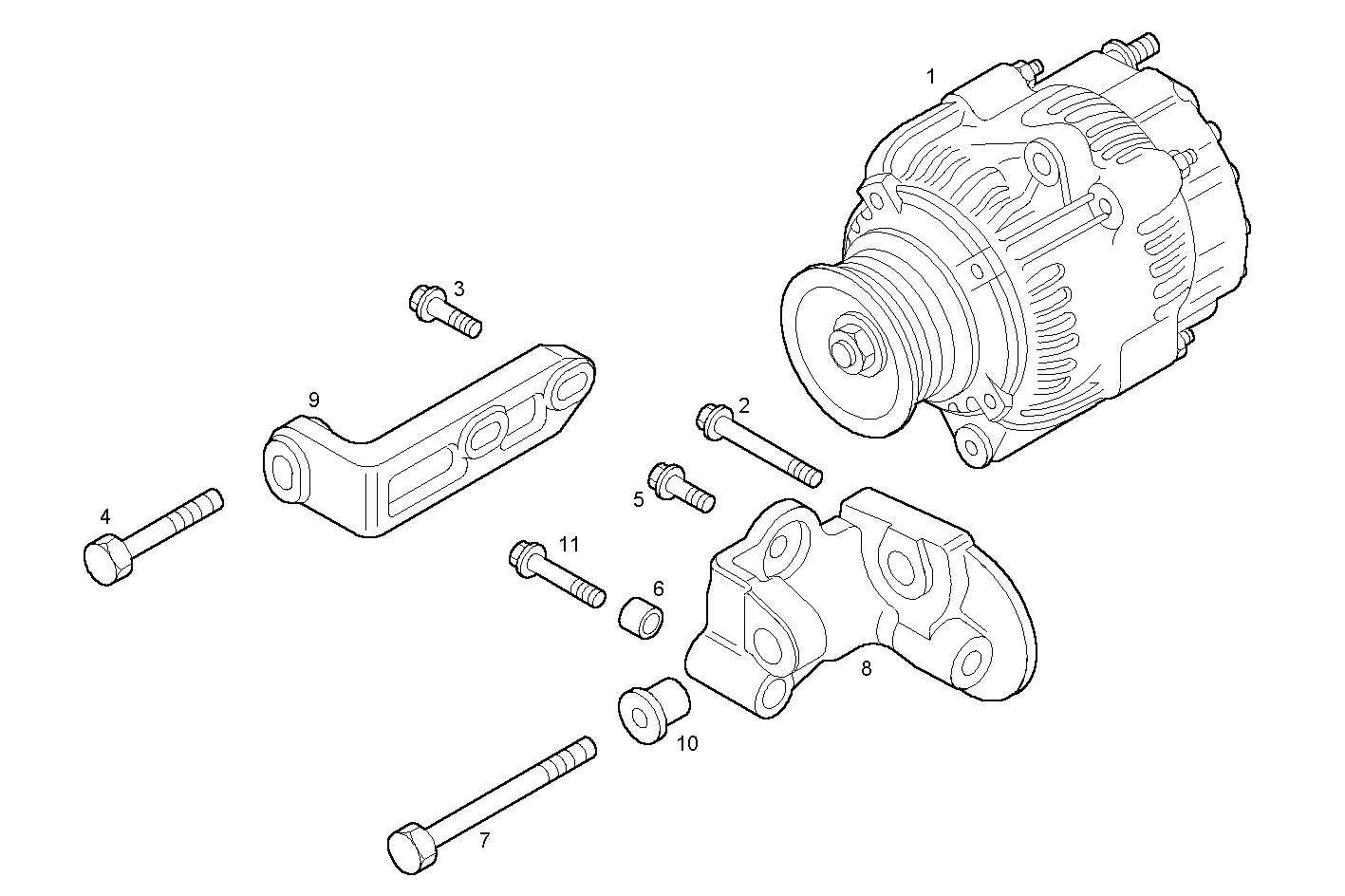

4000.126 GENERATOR

Iveco/FPT GENERATOR

Item Part number Description
1 500331736 ALTERNATOR ASSY 28V 90A
2 16593124 HEXAGON BOLT M10X100 MM
3 16673835 HEXAGON BOLT M8X30 MM
4 16586625 HEXAGON BOLT M8X35 MM
5 16675734 HEXAGON BOLT M10X25 MM
6 98405462 DOWEL PIN Ø10,2 MM
7 99474161 SCREW M10
8 99483766 GENERATOR SUPPORT
9 99484031 FASTENING BRACKET
10 99484032 SPACER BUSH
11 16587824 HEXAGON BOLT M10X1,5X60 MM
