F2BE0684B*B131

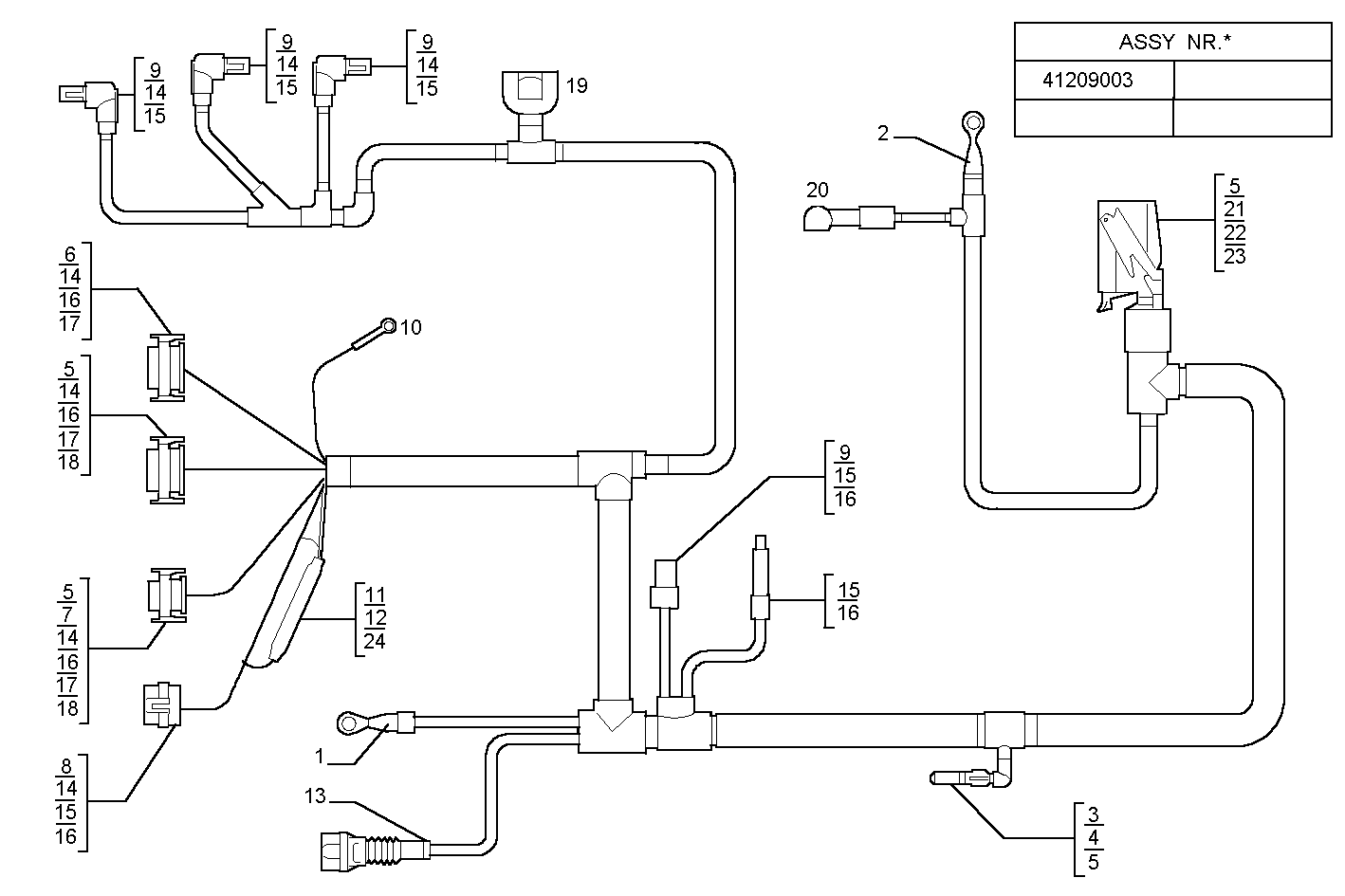

8330.000 ENGINE ELECTRIC WIRING (COMPONENTS)

Iveco/FPT ENGINE ELECTRIC WIRING (COMPONENTS)

Item Part number Description
1 2525276 CAP
2 98440841 CAP
3 98435345 WIRE CONNECTOR 1 pin female
4 98435333 WIRE CONNECTOR
5 98420215 PLUG
6 4859426 WIRE CONNECTOR 19 pin female - yellow colour
7 4859414 WIRE CONNECTOR 10 pin female - black colour
8 98435342 WIRE CONNECTOR 5 pin female
9 98435346 WIRE CONNECTOR 2 pin female
10 1167405 TERMINAL
11 12055880 WIRE CONNECTOR
12 98464080 RESISTOR
13 42099078 CLIP
14 98458120 GASKET
15 2992428 TERMINAL
16 4861936 RUBBER BUSH YELLOW
17 2992425 TERMINAL
18 4861937 RUBBER BUSH
19 12454044 TERMINAL
20 2992418 TERMINAL
21 2992415 TERMINAL
22 4835259 GASKET
23 12309080 GASKET
24 2992402 TERMINAL
