F2BE0687A*B301

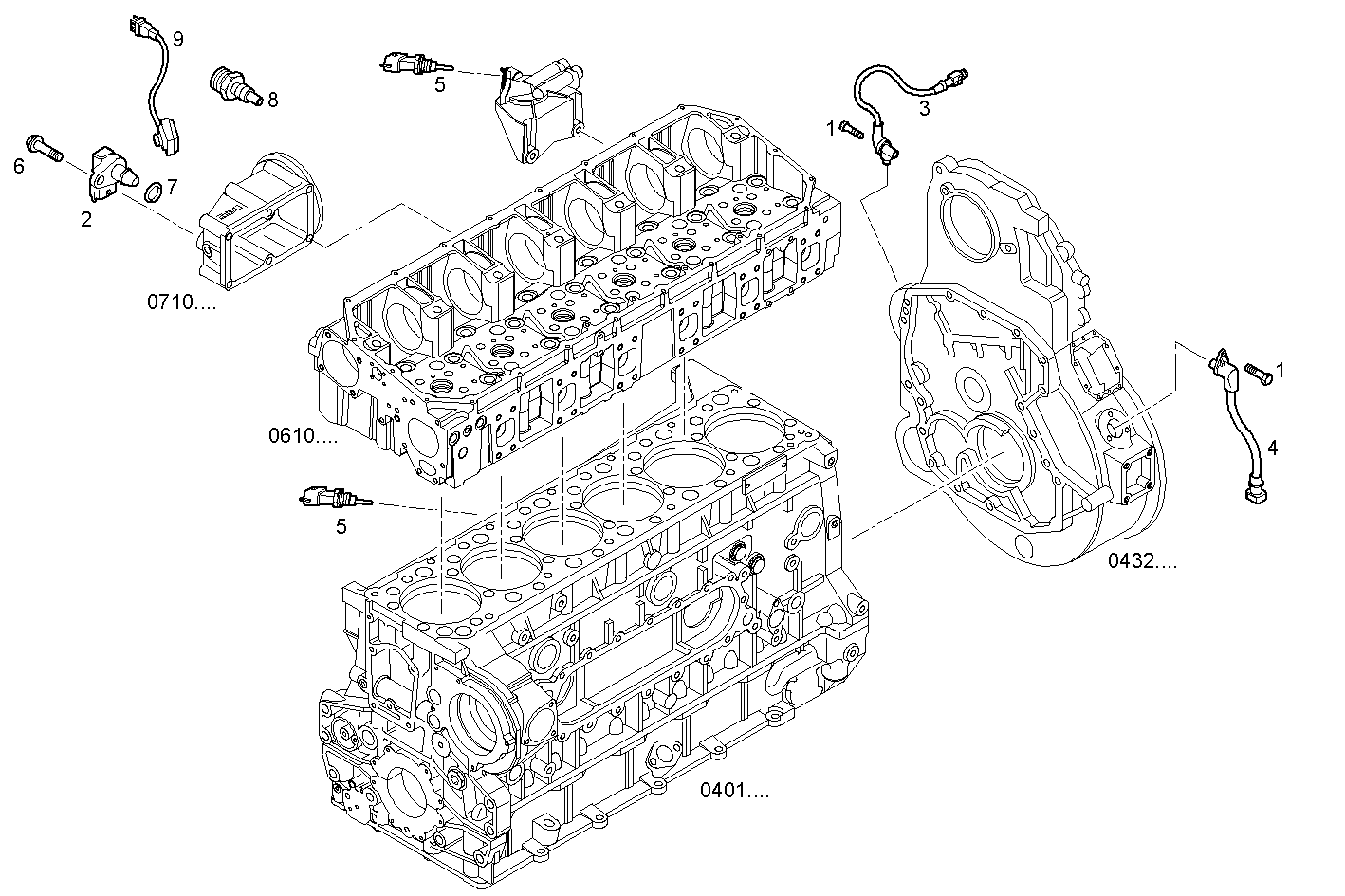

1710.025 SENSORS [FROM 10-01-05] [FROM 10-01-05]
| Item | Part number | Description |
|---|---|---|
| 1 | 16689024 | CYLIND-HEAD SCREW M6X12 |
| 2 | 504073323 | SENSOR AIR PRESS. & TEMPER. [FROM # 158928] |
| 3 | 99450797 | SENSOR camshaft. |
| 4 | 504005575 | SENSOR crankshaft. |
| 5 | 500382599 | TEMP. TRANSMITTER PRESS. & TEMPER. |
| 6 | 16597225 | HEXAGON BOLT M6X18 MM |
| 7 | 42546555 | O-RING [FROM # 158928] |
| 8 | 98412656 | TEMP. TRANSMITTER |
| 9 | 500360579 | SENSOR Pressure |
