F2BE0687C*B301

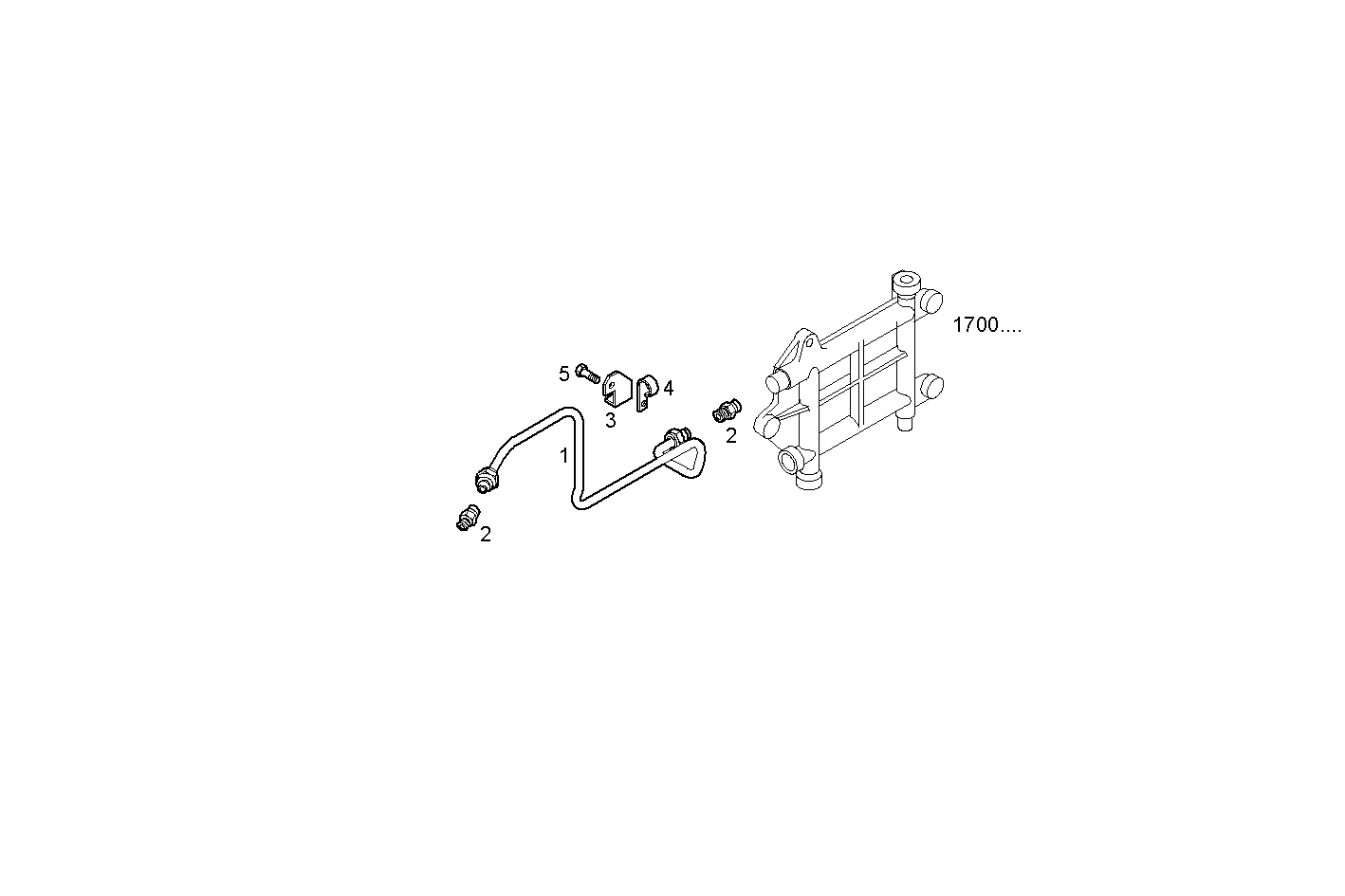

2031.006 FUEL LINES - INLET TO FUEL PUMP [FROM 31/07/06] [FROM 31/07/06]
| Item | Part number | Description |
|---|---|---|
| 1 | 504003792 | FUEL LINE |
| 2 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 4791406 | RETAINER |
| 4 | 17316592 | PIPE CLIP |
| 5 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
