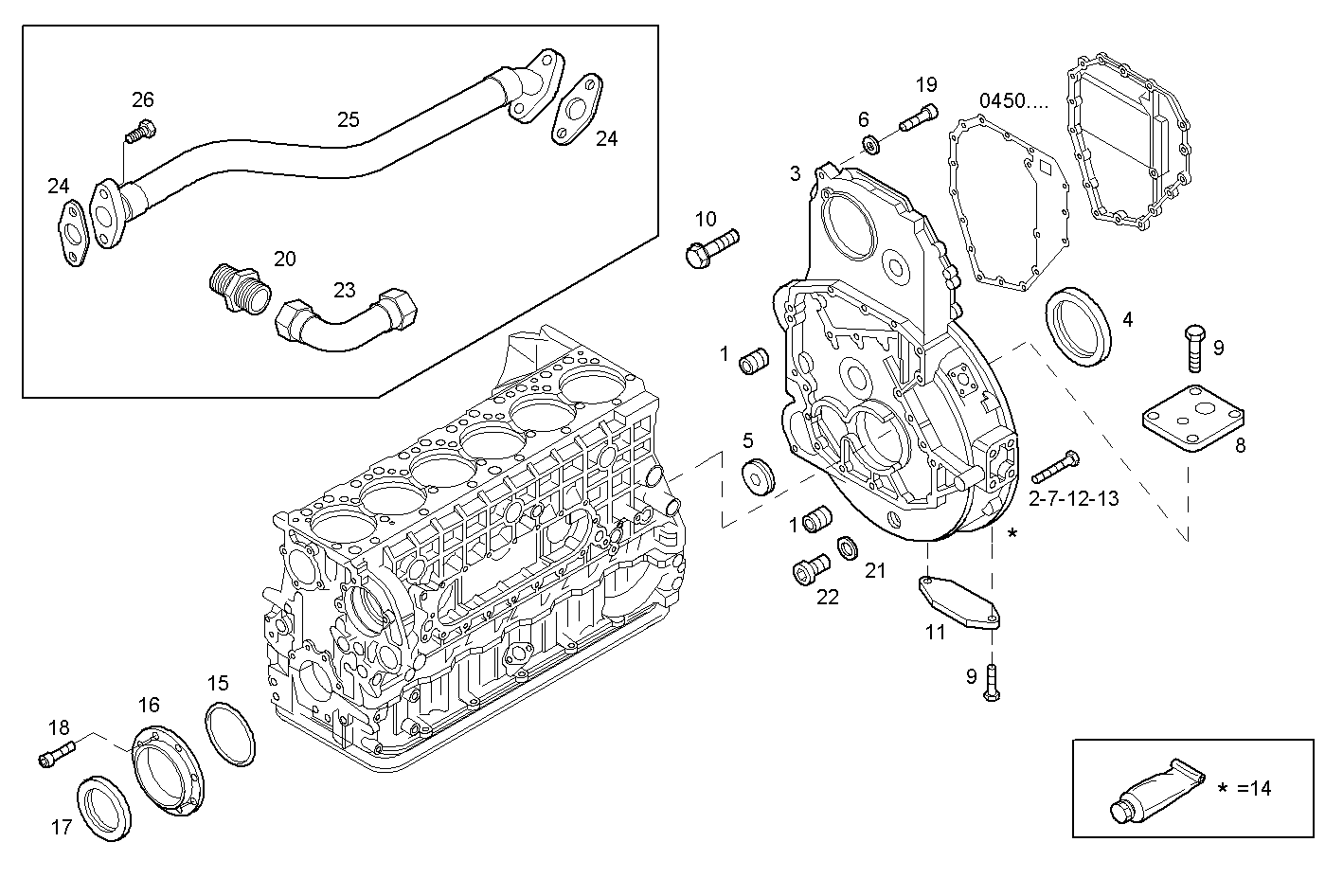

| Item |
Part number |
Description |
|
1 |
500314968 |
DOWEL PIN Ø12 MM |
|
2 |
16593224 |
HEXAGON BOLT M12X1,7X80 MM |
|
3 |
504056534 |
TIMINGGEAR HOUSIN ASSY |
|
4 |
99447291 |
SHAFT SEAL |
|
5 |
500392568 |
THREADED PLUG M52 |
|
6 |
98474303 |
WASHER Ø8X14 MM SP=2,3 MM |
|
7 |
16593124 |
HEXAGON BOLT M10X100 MM |
|
8 |
99436696 |
PLATE |
|
9 |
16597924 |
HEXAGON BOLT M8X14 MM |
|
10 |
61315661 |
HEXAGON BOLT M8X30 |
|
11 |
4851842 |
COVER |
|
12 |
16587324 |
HEXAGON BOLT M10X35 MM |
|
13 |
16599424 |
HEXAGON BOLT M10X180 MM |
|
14 |
1903673 |
ADHESIVE/STICKER LOCTITE |
|
15 |
17292381 |
O-RING Ø129,8 MM SP=3,53 MM |
|
16 |
99466465 |
FRONT COVER |
|
17 |
99447290 |
SHAFT SEAL |
|
18 |
16707134 |
SOCKET-HEAD SCREW M8X20 MM |
|
19 |
500348322 |
CYLIND-HEAD SCREW M8X1,25X25 MM |
|
20 |
504043498 |
THREADED UNION M42V2-M45X2 |
|
21 |
98474311 |
SEAL GASKET Ø18X26 MM |
|
22 |
16992511 |
THREADED PLUG M18X1,5 |
|
23 |
504058130 |
PIPE |
|
24 |
504059000 |
FLAT ENGINE GASKET |
|
25 |
504058816 |
LINE |
|
26 |
16586324 |
HEXAGON BOLT M8X1,25X20 MM |
