F2BE1682D*B001

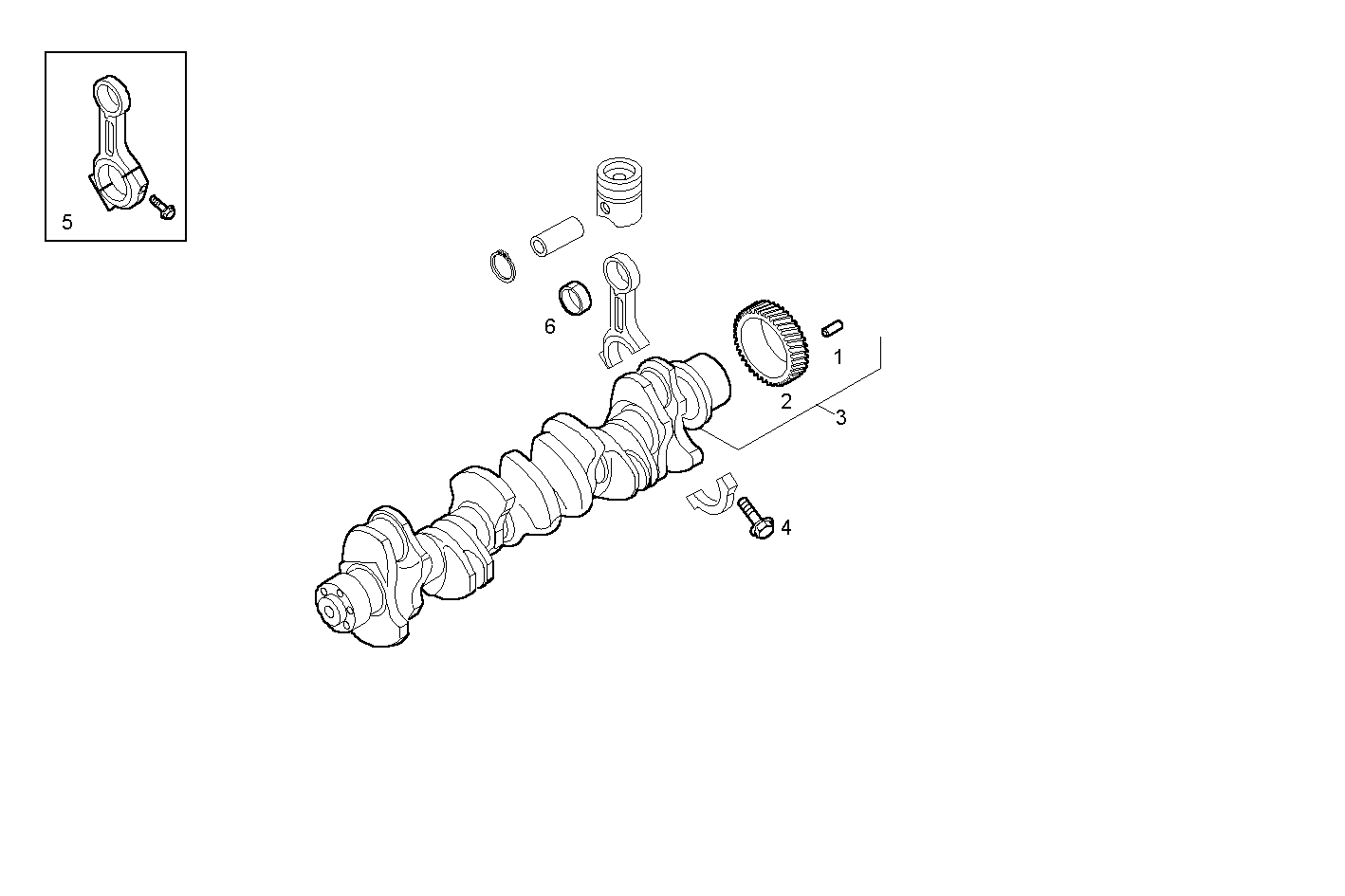

0800.094 CRANK SHAFT - CONNECTING RODS
Item | Part number | Description |
---|---|---|
1 | 99435760 | DOWEL PIN Ø8 MM |
2 | 99482408 | TIMING DRIVE GEAR |
3 | 99485949 | CRANK SHAFT ASSY |
4 | 500337726 | BIG-END BOLT |
5 | 500346480 | CONN.ROD ASSY. ASSY |
6 | 99474543 | BIG-END BUSH |
