F2BE3681B*U056

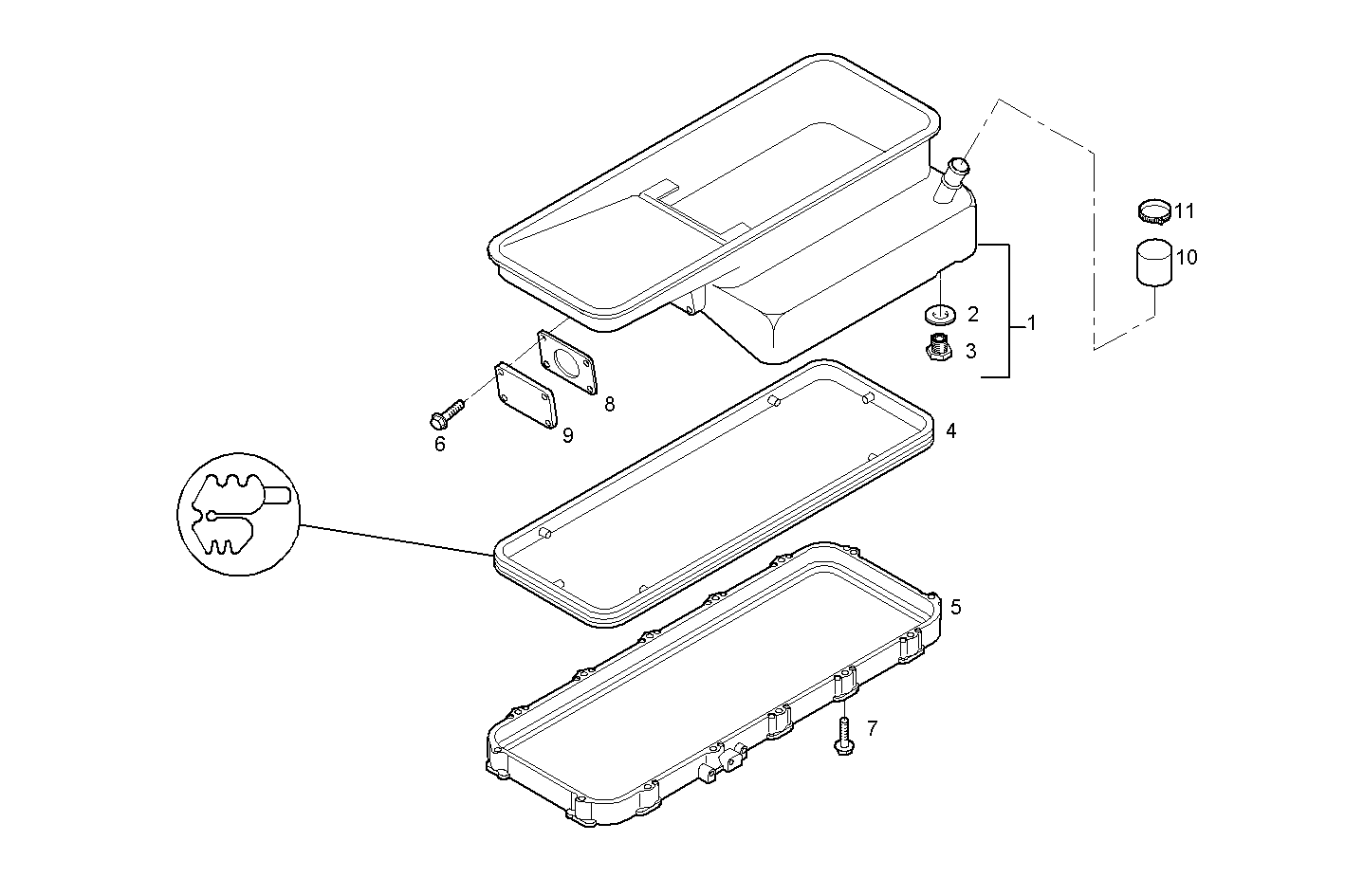

0420.242 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 500327426 | OIL SUMP |
2 | 16508460 | WASHER 22x27x1,5 |
3 | 16992611 | THREADED PLUG M22X1,5 |
4 | 99443902 | OIL SUMP GASKET |
5 | 99437092 | SPACING BAR |
6 | 18137825 | HEXAGON BOLT M6X16 |
7 | 16587525 | HEXAGON BOLT M10X45 MM |
8 | 99474411 | FLAT ENGINE GASKET Ø22X30 MM |
9 | 99474410 | COVER REAR |
10 | 4836520 | PLUG |
11 | 17764694 | CLIP Ø25/40 MM |
