F2BE3681B*U056

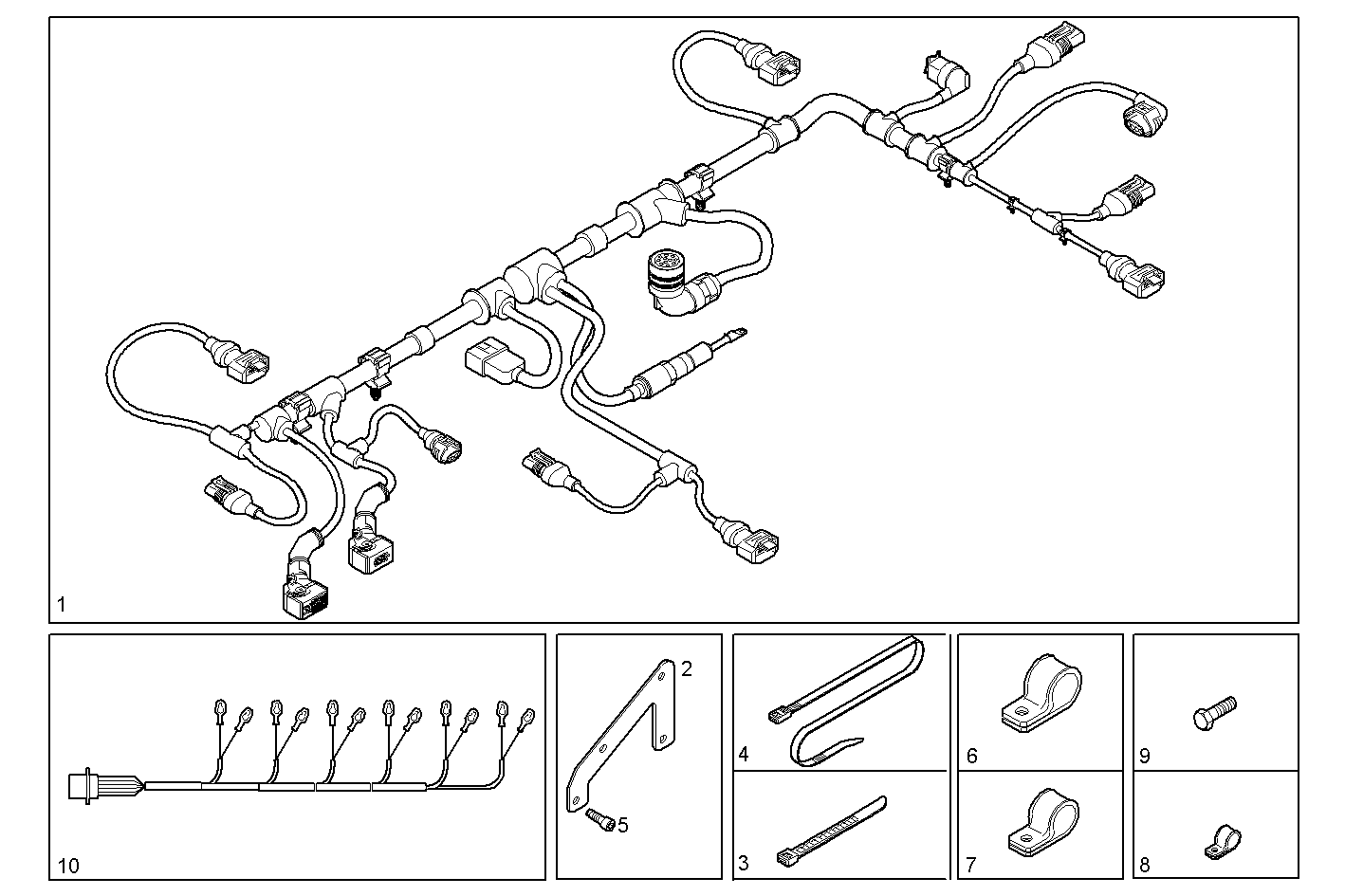

1730.080 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 504233266 | WIRE/CABLE |
| 2 | 504172325 | FASTENING BRACKET |
| 3 | 99455033 | CLIP |
| 4 | 42099097 | CABLE STRAP |
| 5 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 6 | 17310501 | FASTENING BRACKET Ø10 MM |
| 7 | 17310401 | FASTENING BRACKET Ø8 MM |
| 8 | 17310001 | FASTENING BRACKET Ø4 MM |
| 9 | 11612224 | HEXAGON BOLT M6X12 MM |
| 10 | 500336911 | WIRE/CABLE FOR INJECTORS |
