F2BE3681B*U056

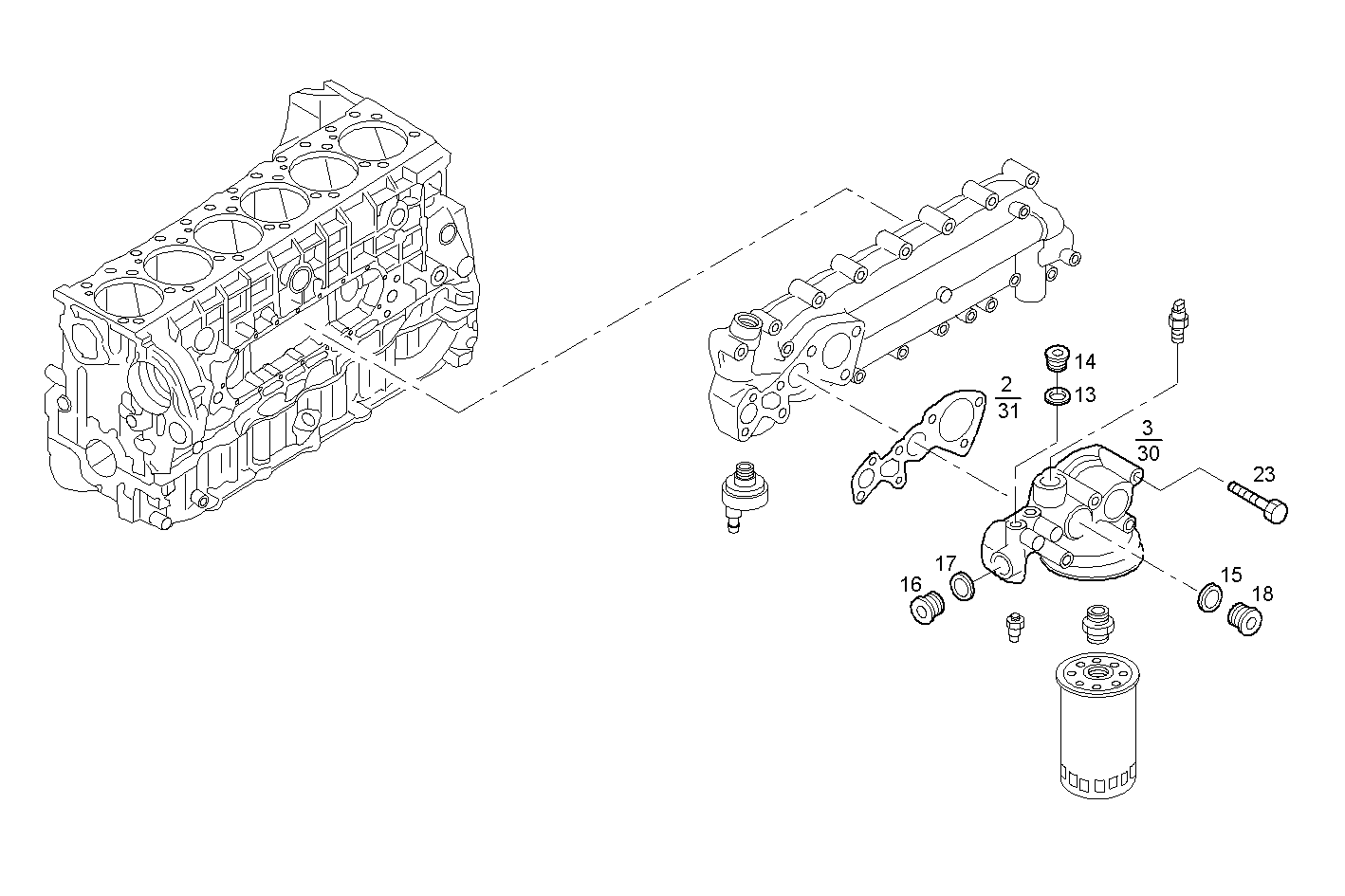

3022.000 HOUSING OIL
| Item | Part number | Description |
|---|---|---|
| 1 | 504070706 | OIL FILTER SUPPORT |
| 2 | 504013562 | GASKET |
| 3 | 16598224 | HEXAGON BOLT M8X90 MM |
| 4 | 16992415 | THREADED PLUG M16X1,5 |
| 5 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 6 | 16993711 | THREADED PLUG M35X1,5 |
| 7 | 99469380 | SEAL GASKET Ø35 MM |
| 8 | 16993511 | LOCK PLUG M28X1,5 |
| 9 | 99432291 | SEAL GASKET Ø28 MM |
