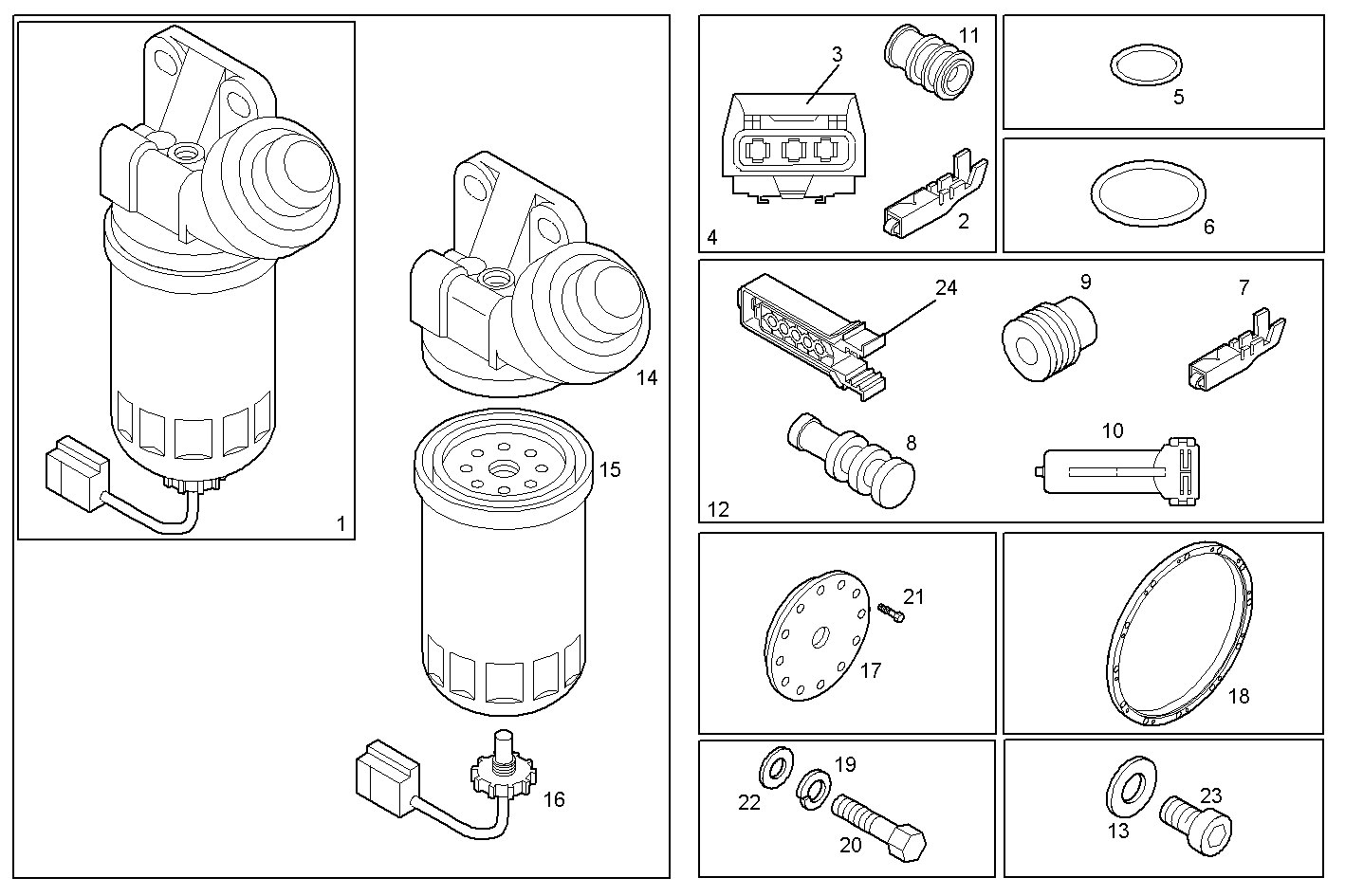

| Item |
Part number |
Description |
|
1 |
99460566 |
PREFILTER ASSY |
|
2 |
12309290 |
TERMINAL |
|
3 |
99430234 |
PLUG COUPLING |
|
4 |
8030575 |
CONNECTION ASSY |
|
5 |
17284681 |
O-RING Ø61,6 MM SP=2,62 MM |
|
6 |
17291281 |
O-RING Ø94,84 MM SP=3,53 MM |
|
7 |
500363580 |
TERMINAL |
|
8 |
500395785 |
RUBBER BUSH |
|
9 |
500363737 |
RUBBER BUSH |
|
10 |
500363578 |
COVER |
|
11 |
4835259 |
GASKET |
|
12 |
8030193 |
WIRE CONNECTOR assy 5 pin female |
|
13 |
17800574 |
SPRING WASHER Ø10,5X21 MM |
|
14 |
500316868 |
FUEL FILT.SUPPORT |
|
15 |
1908547 |
FUEL FILTER ELEM. |
|
16 |
99468264 |
SENSOR |
|
17 |
98484427 |
FLANGE |
|
18 |
500307030 |
SPACING BAR |
|
19 |
17798374 |
SPRING WASHER Ø10,2X18,1 MM |
|
20 |
16607924 |
HEXAGON BOLT M10X1,5X40 MM |
|
21 |
17458234 |
LOCKING SCREW M12X30 MM |
|
22 |
17095111 |
WASHER |
|
23 |
16692524 |
CYLIND-HEAD SCREW M10X45 MM |
|
24 |
500363489 |
WIRE CONNECTOR |
