F2BE3681B*U056
8693.004/03 AFTER TREATMENT-PARTS

Iveco/FPT AFTER TREATMENT-PARTS

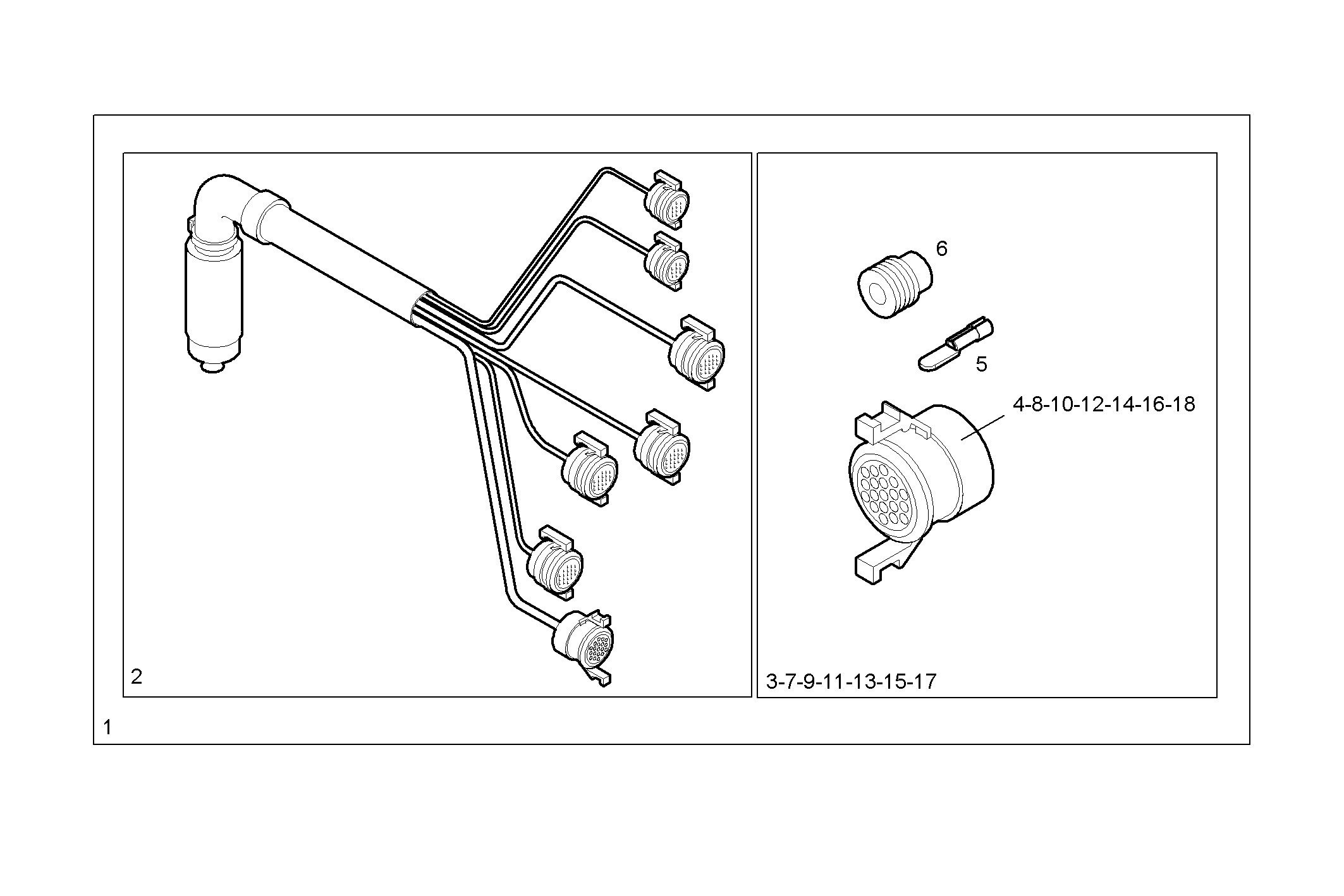

Item Part number Description
1 8045176 CONNECTION ASSY
2 8042255 SET OF WIRING
3 8035244 WIRE CONNECTOR assy 19 pin male -pin layout A
4 4859430 CONNECTION 19 pin male - black colour
5 4863438 TERMINAL
6 4861937 RUBBER BUSH
7 8032279 WIRE CONNECTOR assy 19 pin male -pin layout B
8 4859433 CONNECTION 19 pin male - yellow colour
9 8032280 WIRE CONNECTOR assy 19 pin male -pin layout C
10 4859431 CONNECTION 19 pin male - white colour
11 8032281 WIRE CONNECTOR assy 10 pin male -pin layout G
12 4859419 CONNECTION 10 pin male - white colour
13 8032282 WIRE CONNECTOR assy 10 pin male -pin layout E
14 4859418 CONNECTION 10 pin male - black colour
15 8042730 WIRE CONNECTOR assy 19 pin male -pin layout D
16 4859429 WIRE CONNECTOR
17 8042735 WIRE CONNECTOR assy 19 pin male -pin layout H
18 4859428 WIRE CONNECTOR
