F2BE4683A*E001

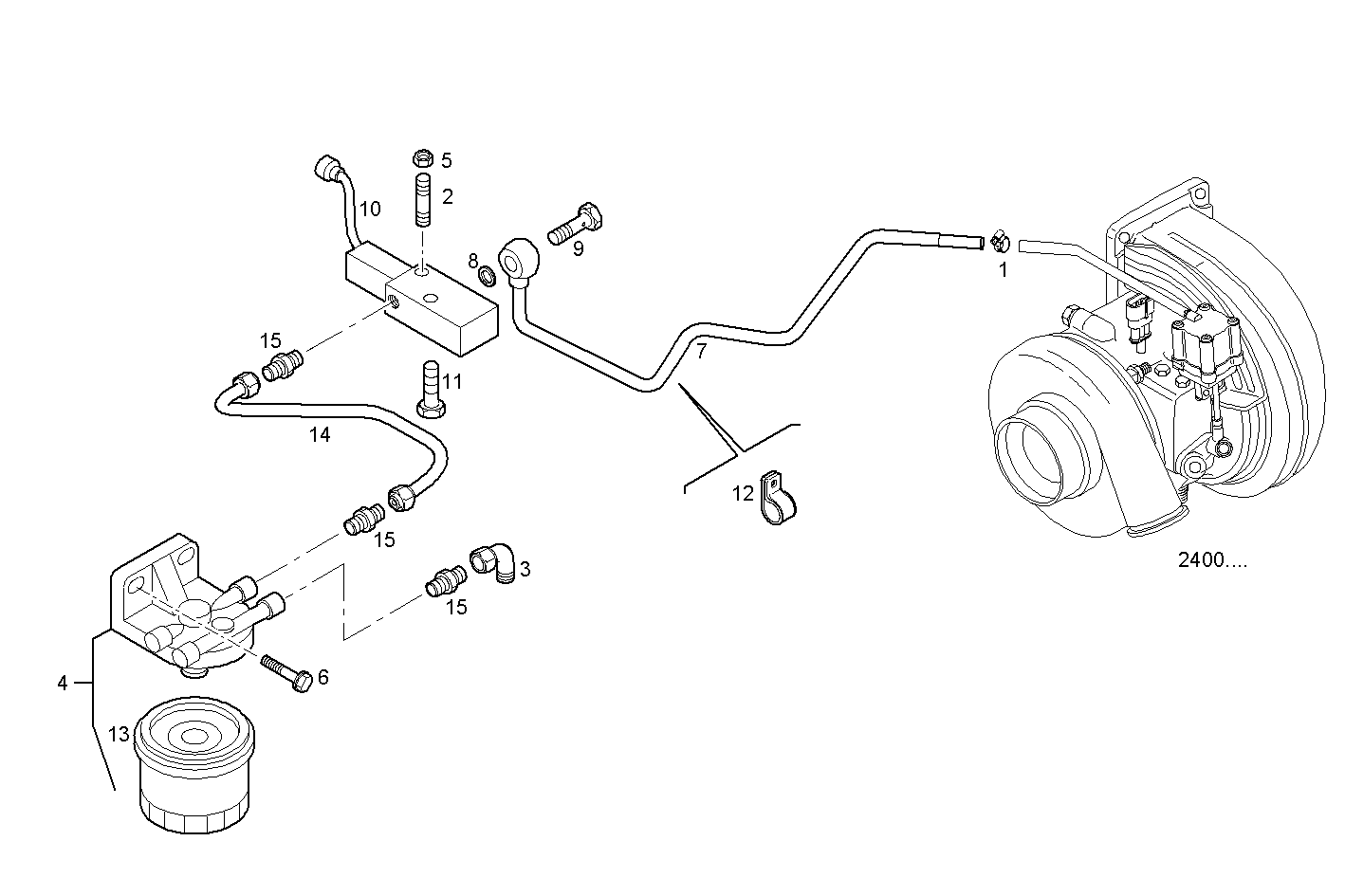

2406.008 CONTROL VALVE
| Item | Part number | Description |
|---|---|---|
| 1 | 500332605 | CLIP |
| 2 | 500346862 | STUD M6X1X60 MM |
| 3 | 16503914 | ELBOW COUPLING M14X1,5 |
| 4 | 504049617 | FILTER AIR ASSY |
| 5 | 17044625 | HEXAGON NUT M6 |
| 6 | 16675835 | HEXAGON BOLT M10X30 MM |
| 7 | 504045398 | PIPE |
| 8 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 9 | 504081281 | SCREW CONNECTOR M12X1,5 |
| 10 | 504203276 | VALVE |
| 11 | 16591824 | HEXAGON BOLT M6X45 MM |
| 12 | 17316392 | CLIP |
| 13 | 2996238 | FILTERING CARTRIDGE for VGT |
| 14 | 504049735 | PLASTIC TUBE |
| 15 | 504081276 | THREADED UNION M14X1,5 |
