F2BE4683A*E001

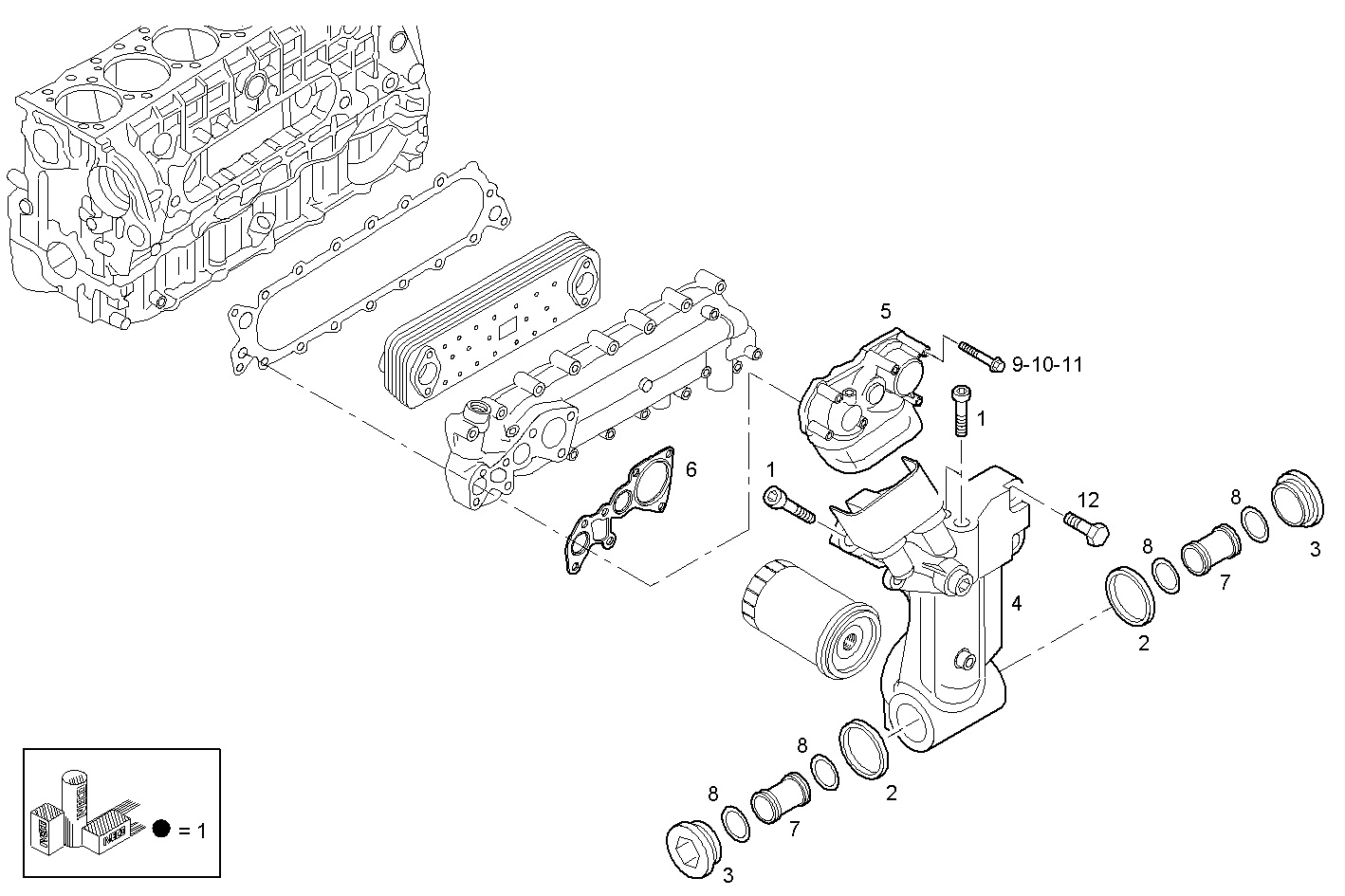

3022.011 HOUSING OIL
| Item | Part number | Description |
|---|---|---|
| 1 | 504096990 | THREADED PLUG |
| 2 | 99469380 | SEAL GASKET Ø35 MM |
| 3 | 16993711 | THREADED PLUG M35X1,5 |
| 4 | 504172501 | OIL FILTER SUPPORT ASSY |
| 5 | 504049906 | OIL FILTER SUPPORT |
| 6 | 504013562 | GASKET |
| 7 | 500393455 | CONNECTION PIPE |
| 8 | 17288981 | O-RING Ø29,74 MM SP=3,53 MM |
| 9 | 16598625 | HEXAGON BOLT M8X1,25X140 MM |
| 10 | 16598224 | HEXAGON BOLT M8X90 MM |
| 11 | 16592425 | HEXAGON BOLT M8X65 MM |
| 12 | 16587724 | HEXAGON BOLT M10X55 MM |
