F2CE0681B*B200

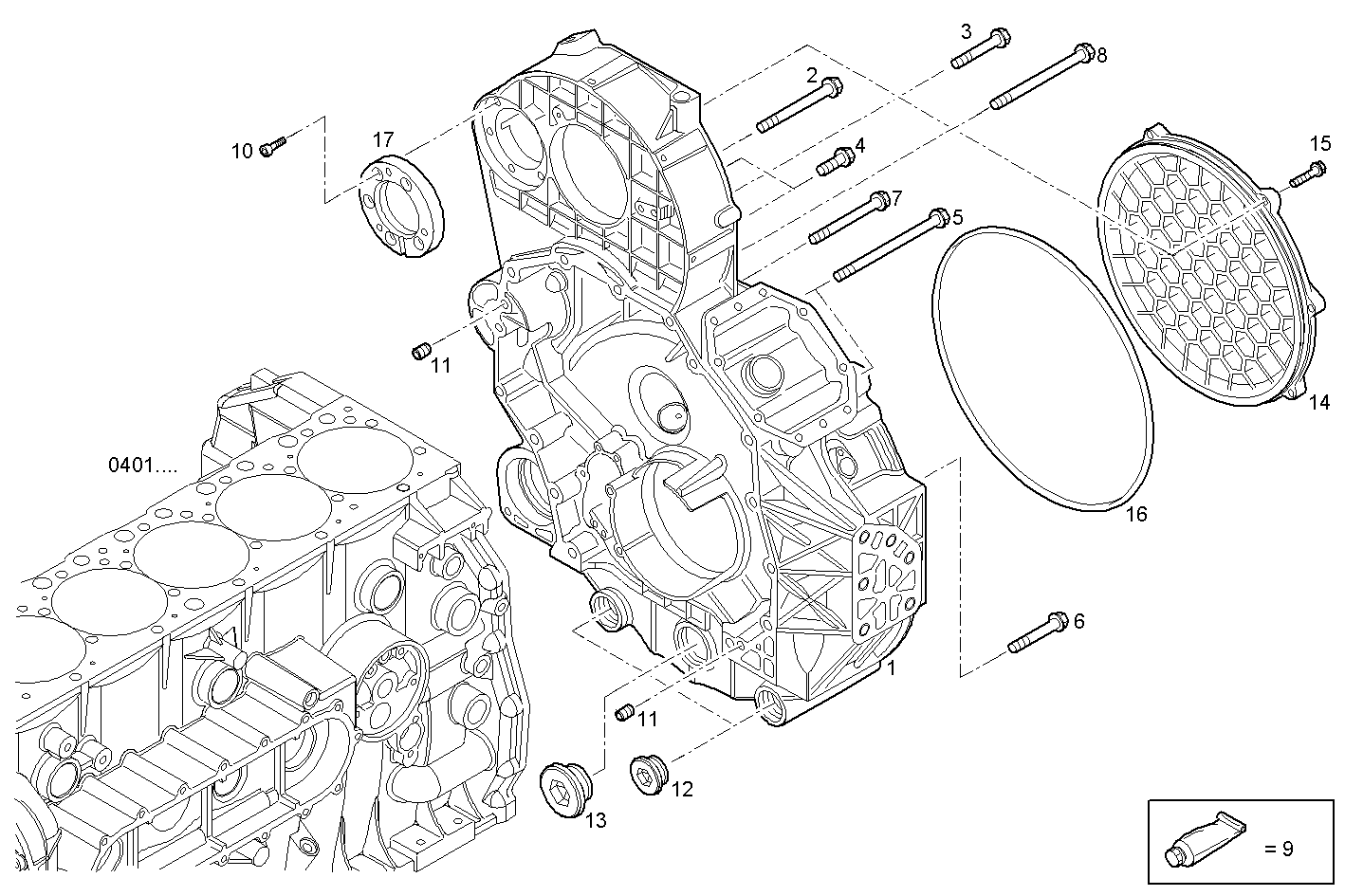

0432.044 REAR C.CASE COVER
| Item | Part number | Description |
|---|---|---|
| 1 | 504346066 | TIMINGGEAR HOUSIN |
| 2 | 16593625 | HEXAGON BOLT M12X120 MM |
| 3 | 16676834 | HEXAGON BOLT M10X70 MM |
| 4 | 16587325 | HEXAGON BOLT M10X35 MM |
| 5 | 99475978 | HEXAGON BOLT |
| 6 | 16593224 | HEXAGON BOLT M12X1,7X80 MM |
| 7 | 16599025 | SCREW M10X120 MM |
| 8 | 16599424 | HEXAGON BOLT M10X180 MM |
| 9 | 2995644 | ADHESIVE/STICKER |
| 10 | 16707334 | CYLIND-HEAD SCREW M8X30 MM |
| 11 | 500314968 | DOWEL PIN Ø12 MM |
| 12 | 17917240 | THREADED PLUG M42X2 MM |
| 13 | 16992915 | THREADED PLUG M52X2 MM |
| 14 | 504124620 | COVER |
| 15 | 16673835 | HEXAGON BOLT M8X30 MM |
| 16 | 17301181 | O-RING 5,33X329,6 |
| 17 | 504233003 | FLANGE |
