F2CE0681B*B200

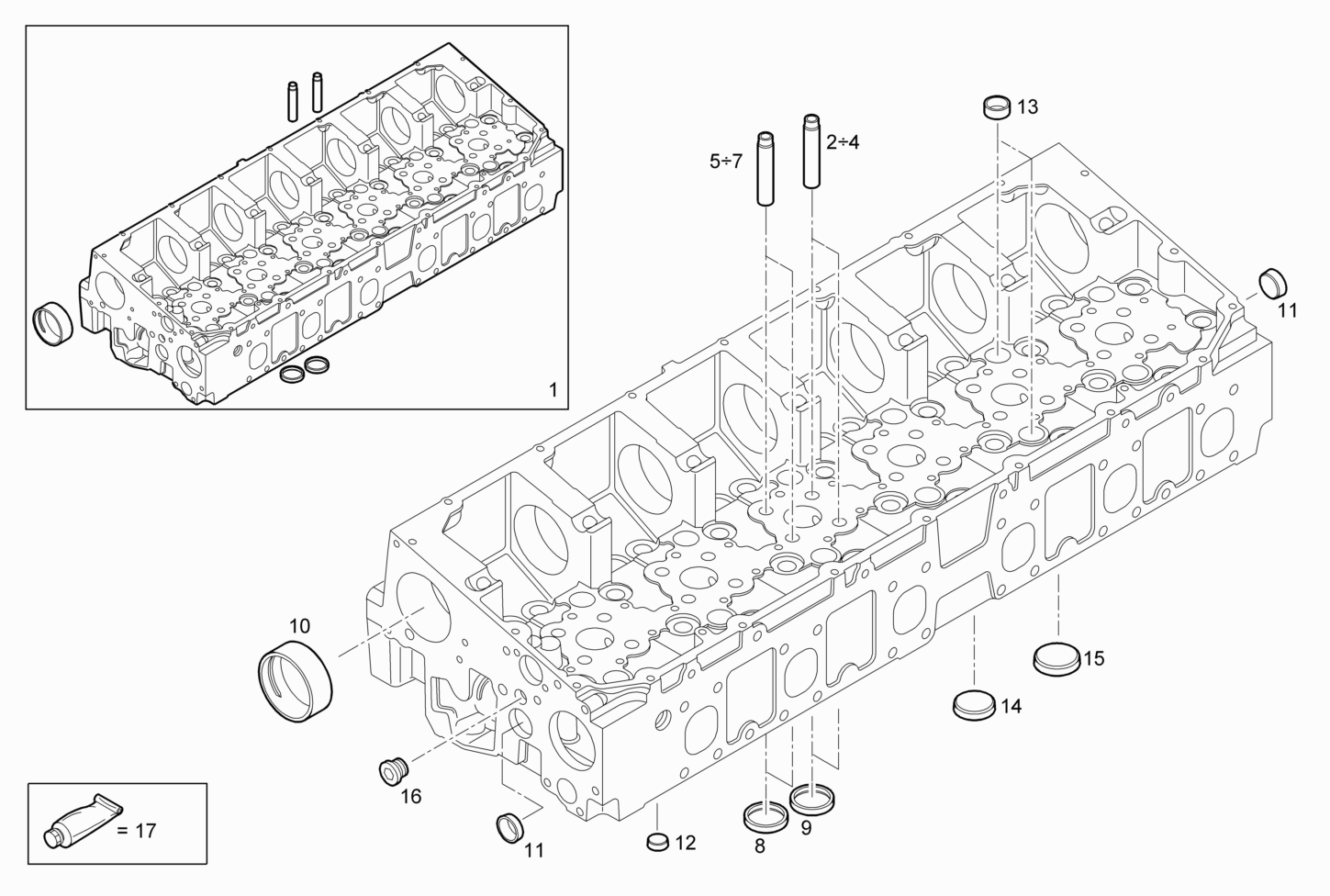

0610.054 CYLINDER HEAD
| Item |
Part number |
Description |
|
1 |
504231232 |
CYLINDER HEAD |
|
2 |
500391436 |
VALVE GUIDE EXHAUST |
|
3 |
500391437 |
VALVE GUIDE +0,2 EXHAUST |
|
4 |
500391438 |
VALVE GUIDE +0,4 EXHAUST |
|
5 |
500391440 |
VALVE GUIDE INTAKE |
|
6 |
500391441 |
VALVE GUIDE +0,2 INTAKE |
|
7 |
500391442 |
VALVE GUIDE +0,4 INTAKE |
|
8 |
99456802 |
VALVE SEAT STD. INTAKE |
|
9 |
99447343 |
VALVE SEAT STD. EXHAUST |
|
10 |
504125778 |
BUSH |
|
11 |
16990870 |
LOCK PLUG Ø28 MM |
|
12 |
14282170 |
LOCK PLUG Ø20 MM |
|
13 |
504344694 |
PLUG Ø25 MM |
|
14 |
16991170 |
LOCK PLUG Ø36 MM |
|
15 |
16991370 |
LOCK PLUG Ø45 MM |
|
16 |
504051237 |
THREADED PLUG DIAM=1/4" |
|
17 |
2992693 |
ADHESIVE/STICKER |
