F2CE0681B*B200

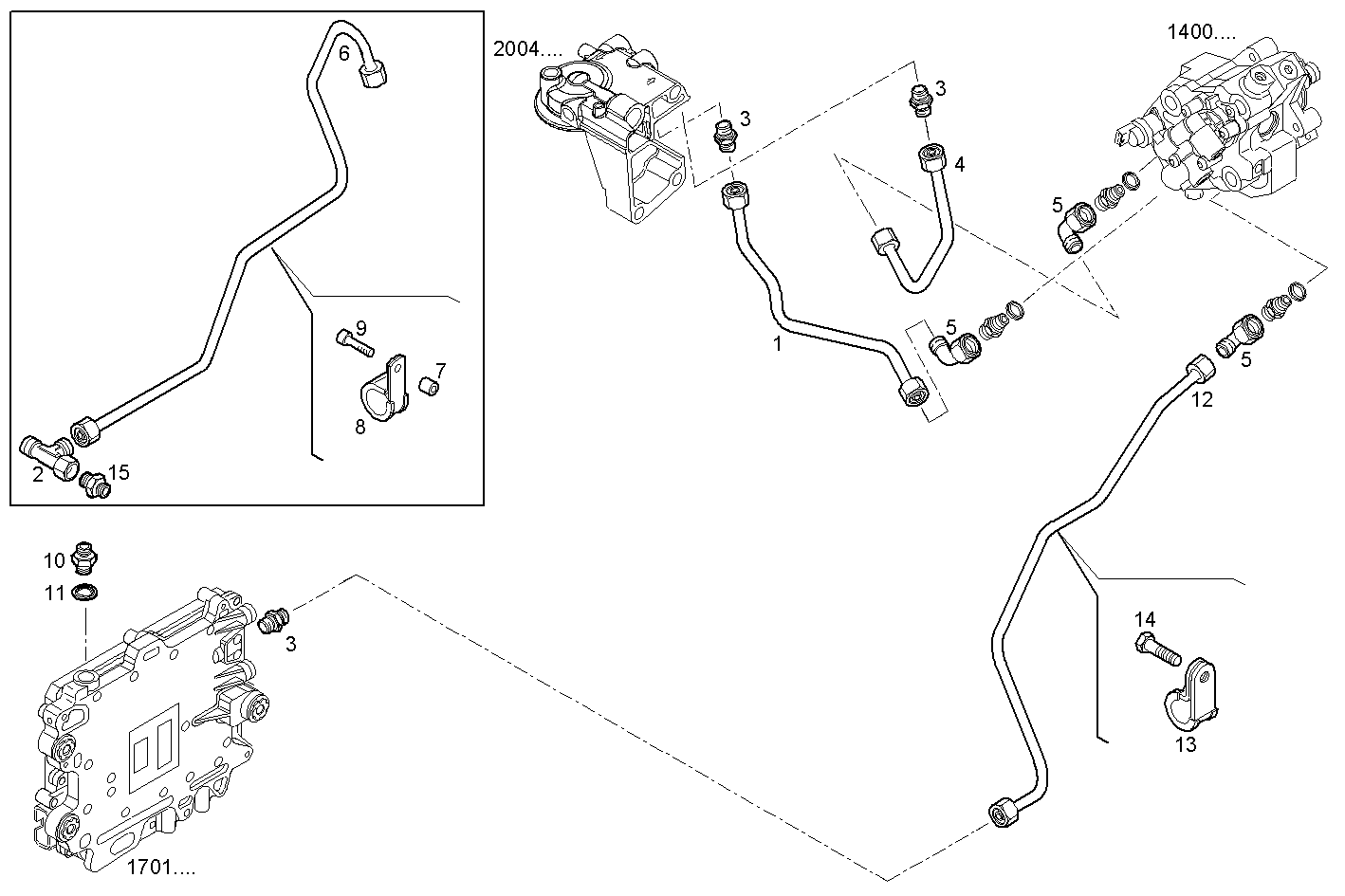

2030.050 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 504354068 | FUEL LINE |
2 | 16504714 | T-COUPLING |
3 | 41031568 | THREADED UNION M16X1,5 |
4 | 504354067 | FUEL LINE |
5 | 16504015 | ELBOW COUPLING M16X1,5 |
6 | 504354070 | FUEL LINE |
7 | 8580153 | SPACING BAR |
8 | 99431539 | PIPE CLIP VALEO 10"1/2 |
9 | 16708734 | CYLIND-HEAD SCREW |
10 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
11 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
12 | 504354065 | FUEL LINE |
13 | 17316499 | CLIP |
14 | 16597925 | HEXAGON BOLT M8X14 MM |
15 | 41031567 | THREADED UNION M14X1,5 - M16X1,5 |
