F2CE0681B*B200

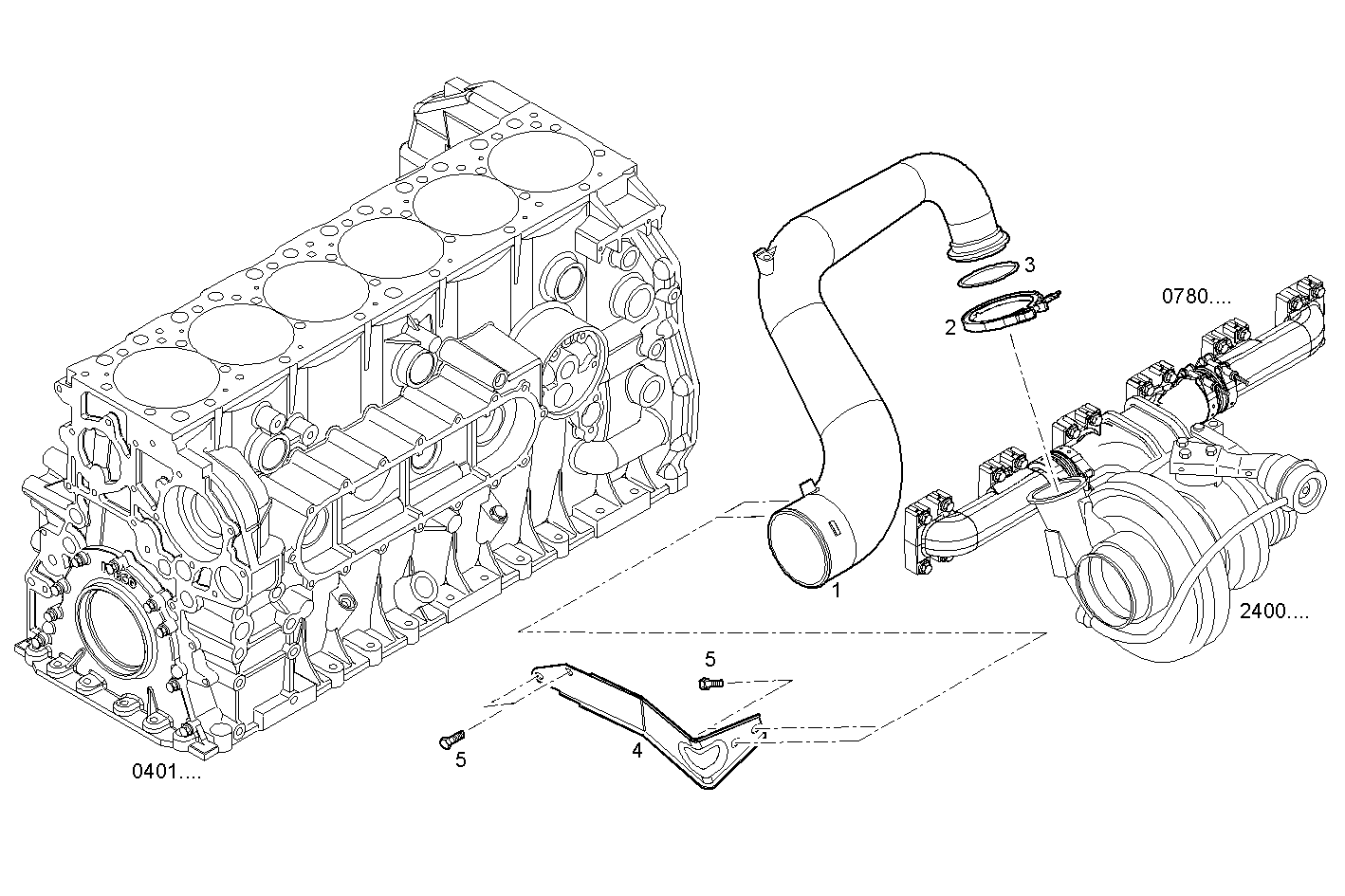

2430.031 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504330576 | AIR PIPE/DUCT |
| 2 | 4800661 | CLIP Ø 75 mm. |
| 3 | 17284681 | O-RING Ø61,6 MM SP=2,62 MM |
| 4 | 504369200 | SUPPORT |
| 5 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
