F2CE0681B*B200

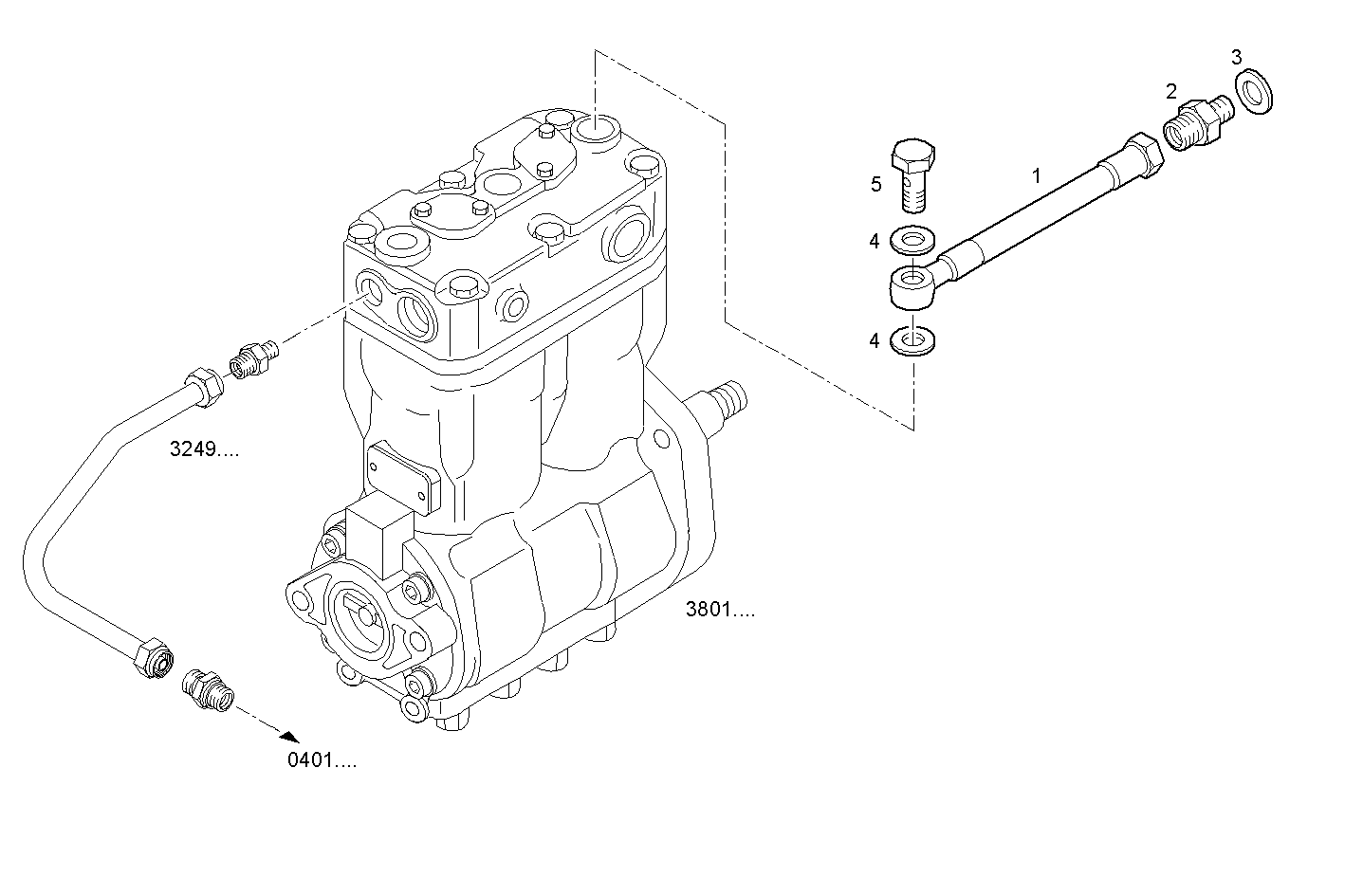

3250.001 COMPRESSOR EXIT PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504164149 | WATER PIPE |
| 2 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 4 | 98474311 | SEAL GASKET Ø18X26 MM |
| 5 | 504081280 | BANJO BOLT M18X1,5 |
